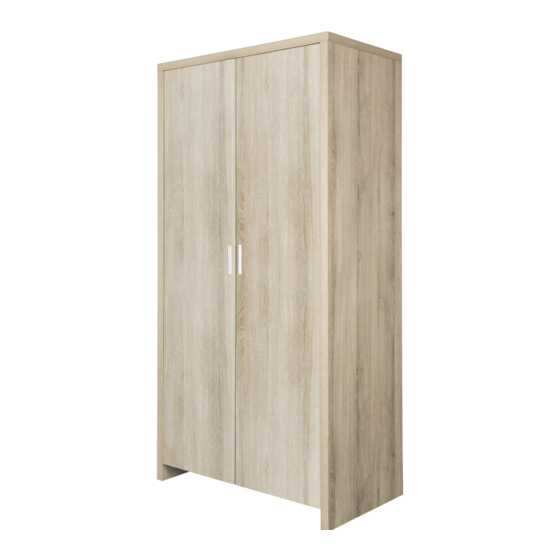

Tutti Bambini Modena Assembly Instructions Manual
Wardrobe
Hide thumbs
Also See for Modena:
- Assembly instructions manual (12 pages) ,
- Assembly instructions manual (12 pages) ,
- Assembly instructions manual (12 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Tutti Bambini Modena
Summary of Contents for Tutti Bambini Modena
- Page 1 Modena Wardrobe Assembly Instructions...
- Page 2 Conforms to BS EN 14749:2005 Tutti Frutti Direct Ltd. Unit 3, 1000 North Circular Road, London, UK, NW2 7JP t: +44 (0) 208 368 5800 e: customerservice@tuttibambini.co.uk www.tuttibambini.com Modena Wardrobe 211337 IMPORTANT: RETAIN FOR FUTURE REFERENCE. READ CAREFULLY...
-
Page 3: Parts List
Parts List Hardware List 1pc for replacement 1 pc 2 pc 27 pc 6.5x40mm 1615mm 4x22mm 1pc for replacement 27 pc 4 pc 2 pc 15x11.5mm 5x18mm 3 pc 8 pc 2 pc 25x16mm 10/6mm 46 pc 49 pc 1 pc 3.5x14mm 4x16mm 200x30mm... - Page 4 • Damaged part number • A photo or video of the damaged part Tutti Bambini guarantee your product against faulty manufacture for a period of 12 months from date of receipt of purchase. This does not affect your statutory rights...
- Page 5 Assembling into wardrobe B x 10 PCS A x 26 PCS Screw metal pins into top and side Assemble shelf and support bar to side panel using 10 x B locking nuts B x 10 PCS B x 6 PCS Assemble right side using Connect top to the frame using 10 x B locking nuts...
- Page 6 Assembling into wardrobe C x 3 PCS D x 12 PCS E x 1 PC 3.5x14mm Connect two backs with H slat, attach to the frame D x 30 PCS F x 4 PCS 3.5x14mm Assemble back using 30 x D screws Attach shelf supports F to the side, then put the shelf on the shelf support www.tuttibambini.com...
- Page 7 Assembling into wardrobe J x 2 PCS H x 8 PCS G x 16 PCS 4x16mm G x 32 PCS I x 2 PCS 4x16mm 4x22mm Attach door hinges H to the doors using Attach two doors to side using 16 x G screws.
- Page 8 Assembling into wardrobe Fittings to attach the strap to the wall are not provided and suitable fittings for the wall type should be used. Caution: The drawer is not provided with end stops that prevent it from being pulled out of the unit www.tuttibambini.com...
-
Page 9: Safety Advice And Maintenance
4. WARNING: Do not use the wardrobe if it is damaged or broken or there are parts missing. Use only spare parts approved by Tutti Bambini. 5. WARNING: Do not place the wardrobe in or near the vicinity of open fires or other surfaces of strong heat, such as gas or electric fires. - Page 10 Notes...
- Page 11 Join Us Follow us on Facebook TuttiBambiniUK Follow us on Twitter TuttiBambiniUK Follow us on Instagram TuttiBambiniUK...
- Page 12 www.tuttibambini.com...
