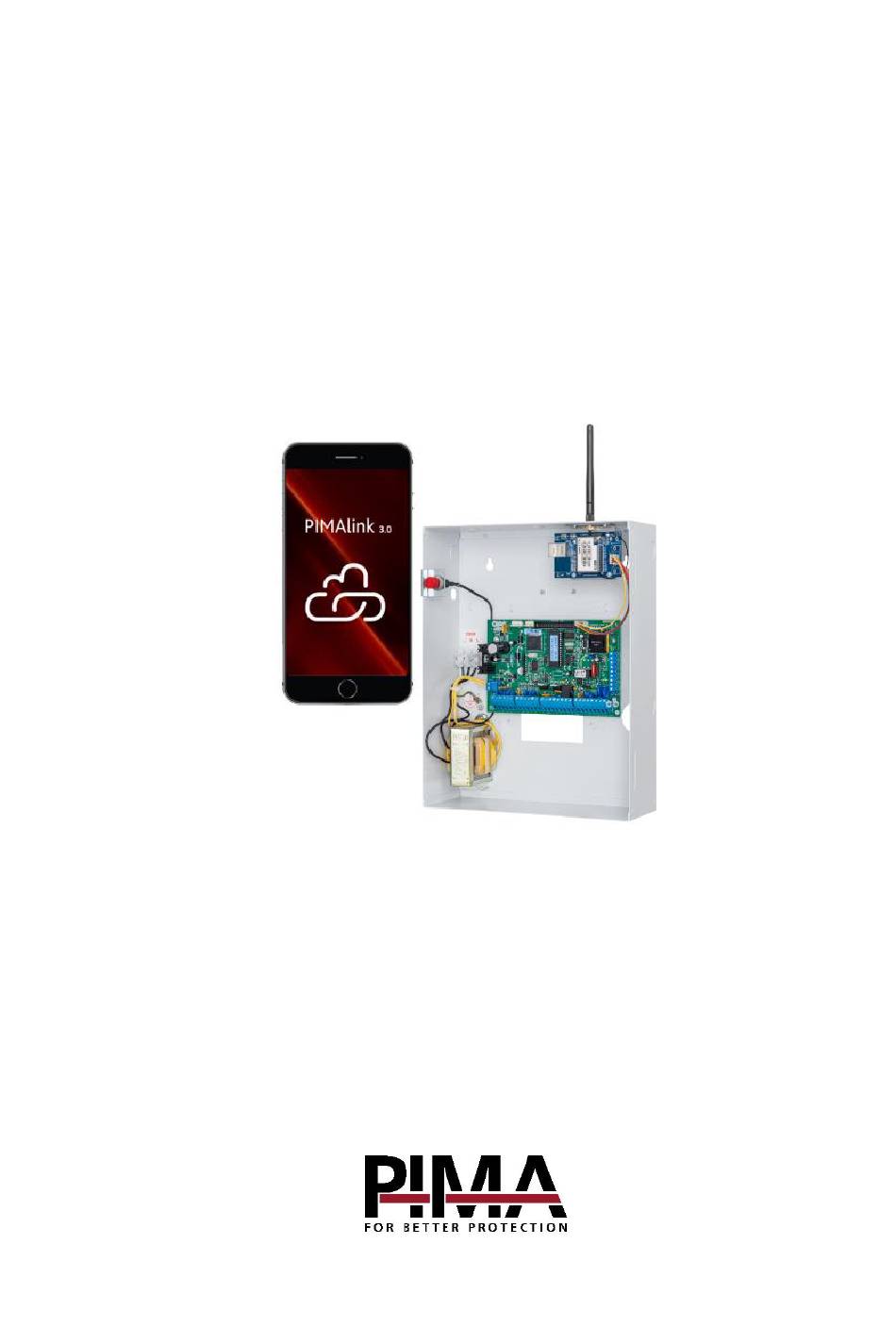

- Page 1 MWA500 Wi-Fi/Ethernet Module For the Hunter-Pro Series and Captain 8 Intruder Alarm Systems Installation Guide...
- Page 2 How to reset the MWA500 ..................... 6 Introduction This guide will help you through the installation and configuration of the MWA500 wi-fi and Ethernet module. It allows users of the Hunter-Pro Series and Captain 8 intruder alarm systems, to use the PIMAlink 3.0 app and cloud service.
- Page 3 2. Connect the wire harness between the module and the SERIAL (J4) connector on the control panel. 3. Connect the control panel to power. The LEDs on the MWA500 module should turn on. MWA500 SERIAL...
- Page 4 MWA500 Module Installation Guide 8. Open a web browser, type the IP address 192.168.16.254 (the module’s default address) and Enter press , to open the module’s interface. admin 9. In the login window that opens up, enter as username and as password, and select...
- Page 5 Installation No. Field Settings 2400,8,n,1 11 Serial Configure Enter 12 Serial Framing Length Enter 2000 13 Serial Framing Timeout Enter Client 14 Network Mode Select force.pimalink.com 15 Remote Server Enter Domain/IP 13000 16 Locale/Remote Port Enter Number 17 Network Protocol Select 18 Network Timeout Enter...
- Page 6 MWA500 Module Installation Guide How to reset the MWA500 To reset the module to factory default settings, follow the next steps. Reset Figure 1 1. While the module is connected to power, press and hold the button (see ) for 10 sec.
- Page 7 Limited Warranty PIMA Electronic Systems Ltd. does not represent that its product may not be compromised and/or circumvented, or that the Product will prevent any death, personal and/or bodily injury and/or damage to property resulting from burglary, robbery, fire or otherwise, or that the Product will in all cases provide adequate warning or protection.
- Page 8 P/N: 4410456 *4410456* Revision: B2, XX en, Mar. 2020...
