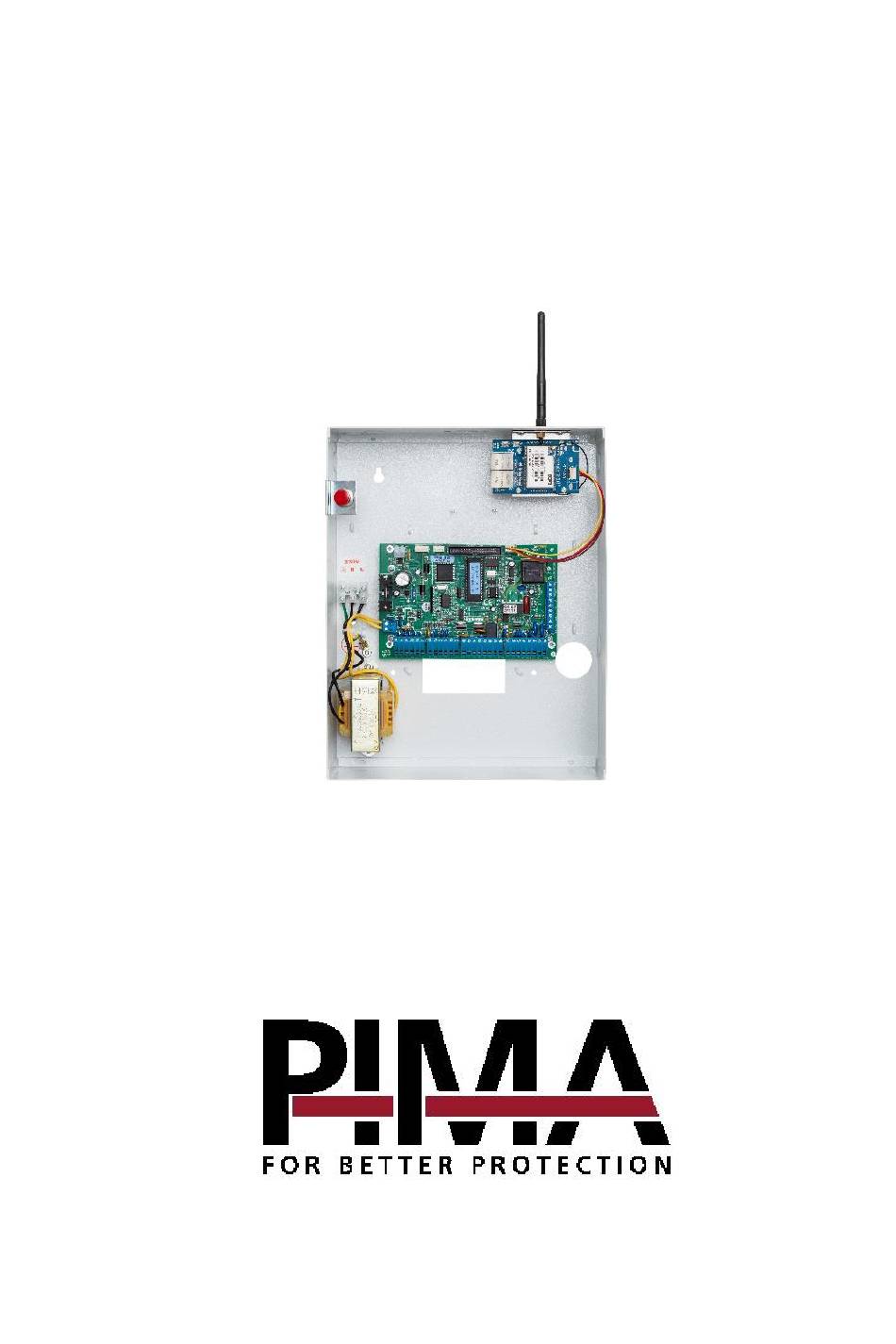

- Page 1 MWA500 Wi-Fi & Ethernet Communication Module for the Hunter-Pro Series and Captain 8 Installation Guide P I M A E l e c t r o n i c S y s t e m s L t d .
- Page 2 How to Reset the MWA500 .................... 7 Limited Warranty PIMA Electronic Systems Ltd. does not represent that its product may not be compromised and/or circumvented, or that the Product will prevent any death, personal and/or bodily injury and/or damage to property resulting from burglary, robbery, fire or otherwise, or that the Product will in all cases provide adequate warning or protection.
-
Page 3: Technical Specifications
Mounted in the enclosure of the control panel Easy browser configuration interface Package contents of the product MWA500 module, mounted on a bracket that fits to the enclosure of the control panel. Antenna 2 screws ... - Page 4 MWA500 Wi-Fi & Ethernet Module Installation Guide Quick Reference Guide LED’s To SERIAL Power Connector Wi-Fi Power and Network LED’s Reset Button Not in use Ethernet Connector Figure 1. The MWA500 Installation Disconnect the control panel from AC and battery power prior to installation.
- Page 5 Configuration Configuration How to connect to the MWA500 First, you need to join the module to the local network (LAN). To do that, do the steps that follow: 1. Click the network connection icon on the desktop of the laptop.
- Page 6 MWA500 Wi-Fi & Ethernet Module Installation Guide No. Parameter Select/Type WIFI(CLIENT)-SERIAL NetMode for Wi-Fi mode ETH-SERIAL for Ethernet mode Scan SSID (Wi-Fi mode only) Press and wait for the module to detect Wi-Fi networks. Apply When the list appears, select the desired one and click Encrypt Type See the network settings.
- Page 7 How to Reset the MWA500 No. Parameter Select/Type 1500 SERIAL FRAME INTERVAL TIMEOUT Locale/ Client Locale Port Set the same as in Remote Port Number above. WIFI Channel Select ‘1’ Disable SERIAL RTS(GPIO_1) SERIAL XON/XOFF How to Reset the MWA500...
- Page 8 MWA500 Wi-Fi & Ethernet Module Installation Guide Limited support notice: Due to the diverse mix of networks, we are not able to offer support on routers, modems, switches or any other network/internet related devices or services. Our support for internet or network related features, that are not directly related to the product are limited.
