IMMI SMARTDOCK Installation Instructions

5. insert CYlinder into smartdoCK
You are now ready to insert the SCBA cylinder into the SmartDock and complete
the adjustment procedure.
a. Place the SCBA cylinder valve into the SmartDock valve retaining tab.
b. Push the top of the SCBA cylinder into the open SmartDock head,
which will automatically close once inserted far enough.
Note: Insertion will become easier after final adjustments have been made.
6. adjust Head HeigHt
During normal operation, the SmartDock
head should just touch the top of the SCBA
air cylinder. Adjust the head height by turning
the height adjustment knob counterclockwise
to lower the head until the gap between the
top of the SCBA air cylinder and the bottom
of the SmartDock head is eliminated. The
top of the SCBA air cylinder should just be
touching the bottom of the SmartDock head.
7. Final "wing" adjustment
The SmartDock "wing" holds the SCBA
air cylinder in the proper orientation and
helps close the head when inserting the
SCBA cylinder into the SmartDock.
Holding the SCBA air cylinder forward
against the two front claws, swing the
wing forward until it touches the SCBA
air cylinder, and then tighten the wing
adjusting screws to 30 N-m.
imminet.com
866-765-5835

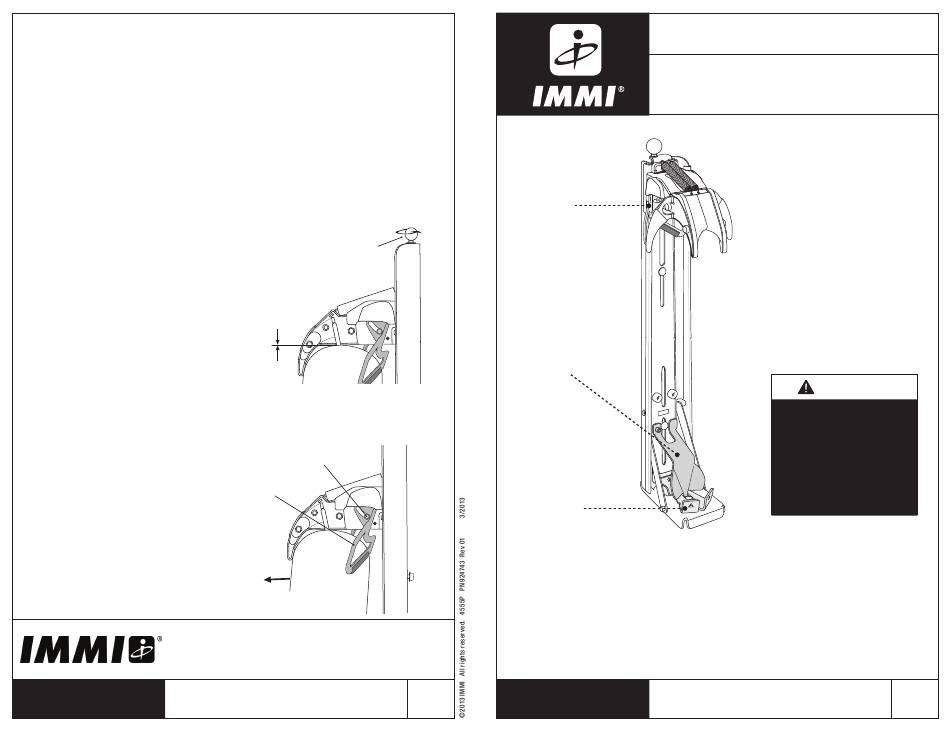

SMARTDOCK VALVE RETAINING
INSTALLATION
INSTRUCTIONS TAB & WING REPLACEMENT
Height
Adjustment
Knob
No Gap
Wing Adjusting
Screw
Wing
Swing Wing
Forward
Air
Against Air
Cylinder
Cylinder
Forward
4 of 4
INSTALLATION INSTRUCTIONS
SMARTDOCK VALVE RETAINING
TAB & WING REPLACEMENT
Wing Bracket
PN923590
Guide Plate
PN916567
Valve Retaining Tab
PN924126
tools required
• T45 Torx Plus socket or key
•
3/16 hex sockets and hex keys (Allen wrench)
•
9/16 inch socket
• Torque wrench capable of reading from 8 to 30 ft*lbs (100 to 360 in*lbs)
SMARTDOCK VALVE RETAINING
INSTALLATION
INSTRUCTIONS TAB & WING REPLACEMENT
PAGE 6 FIGURE 1 REV 2
WARNING
Failure to install, maintain
and use SmartDock in
accordance with the
Installation User's Guide and
those provided by the Vehicle
Manufacturer can result in
serious injury or death.
1 of 4
