S4S Unit
Installation Instructions
What is the S4S?
S4S stands for Suspension Seat Safety System.
How does it work?
In the event of a side roll, the S4S unit is deployed by the master roll sensor,
pretensioning the seat belt, then pulling the seat to its lowest position. The S4S is
only effective when you wear your seat belt. ALWAYS WEAR YOUR SEAT BELT.
Failure to read and follow these instructions may result
serious injury or death to the occupant.
Important Facts
PLEASE READ THIS ENTIRE GUIDE BEFORE STARTING TO INSTALL S4S
SYSTEM.
1.
The S4S is to be used in a specific vehicle application and seating position,
and only with a specific model seat.
2.
Always follow the vehicle manufacturer's installation guide. Use this
installation guide in addition to the vehicle manufacturer's guide.
3.
Always disconnect vehicle batteries and turn off vehicle switch before
accessing electrical connection.
4.
DO NOT PUNCTURE DRILL OR APPLY HEAT TO S4S.
5.
DO NOT MOUNT ANYTHING NEAR THE S4S that could interfere with
travel path of the device.
6.
The master roll sensor must be vehicle mounted before any electrical con-
nections associated with S4S system are made.
7.
The S4S is only designed to activate once. If the system is activated or is
damaged, unit must be replaced by authorized personnel.
Temperatures over 85° C (185° F) could cause the unit to deploy.
The deploying S4S could cause serious injury or death.
Applying power prematurely could deploy occupant protective devices, causing
serious injury to installer. Disconnect and tag out power. Always make connec-
tions to Roll Sensor last. Keep clear of protective devices when first applying
power. Failure to follow these instructions could cause serious injury or death.
This information is not all inclusive and will not cover every seat, pedestal and vehicle configuration. Installers shall have sole responsibility for
proper selection, application, installation and testing of the seat belt in accordance with FMVSS207, 208 and 210 as amended, or any other
applicable or additional specification such as for use outside the U.S., and for providing instructions to the ultimate user concerning proper use and
periodic maintenance of the seat belts.
WARNING
WARNING
DO NOT APPLY HEAT
WARNING
HAZARDOUS OPERATION

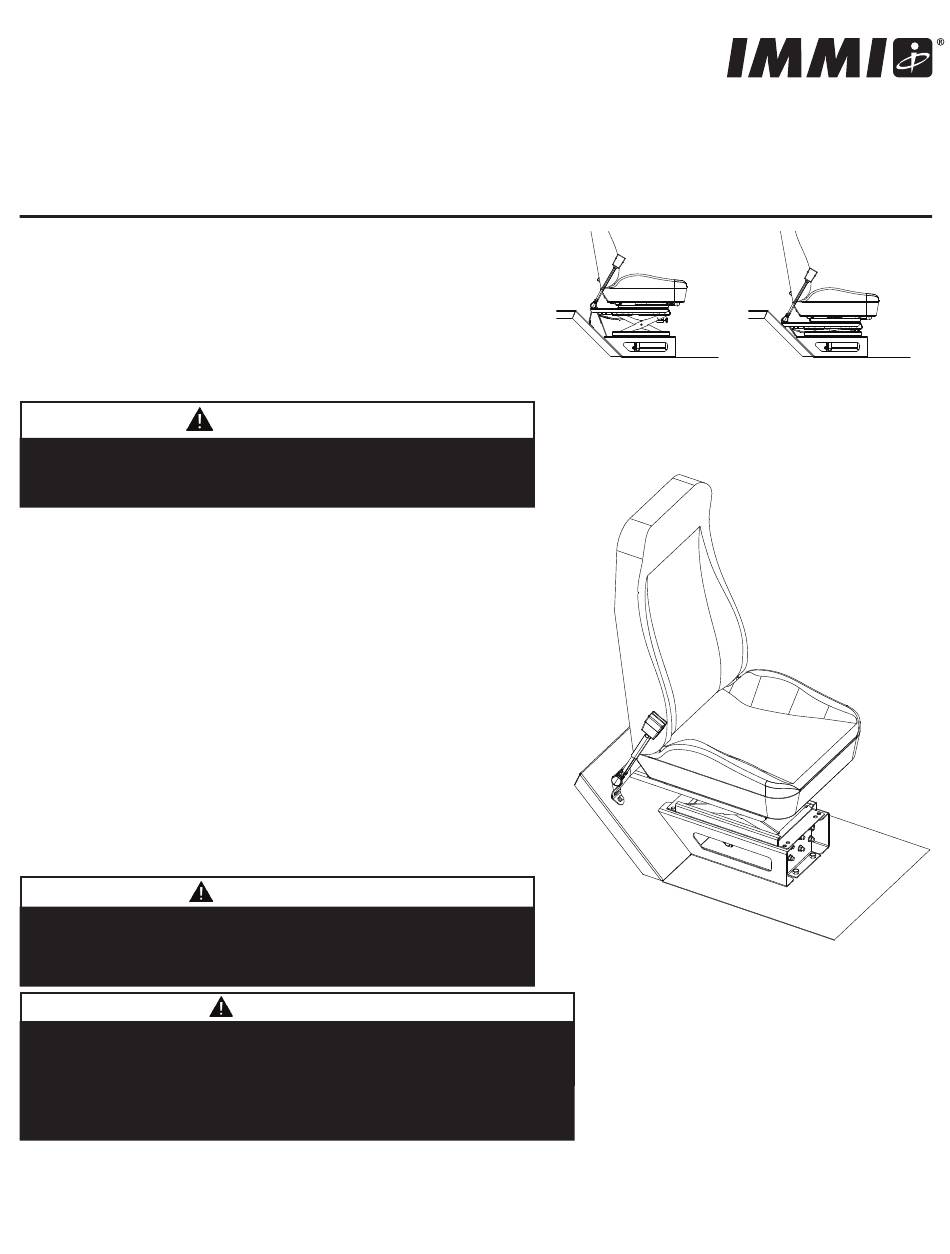

Before Deployment
1
imminet.com
18881 IMMI Way
Westfield, IN 46074 USA
T: 866.765.5835
F: 317.896.2142
After Deployment
