IMMI SmartDock Installation & User Manual

Hands-free scba holder
Hide thumbs Also See for SmartDock:
Table of Contents

Advertisement

Quick Links

Installation/User's Guide
Guide de l'Utilisateur
Installations- /Gebrauchsanleitung
For International Markets
U.S. Patent No.
7,922,246
Patent Pending

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartDock and is the answer not in the manual?

Questions and answers

Related Manuals for IMMI SmartDock

Summary of Contents for IMMI SmartDock

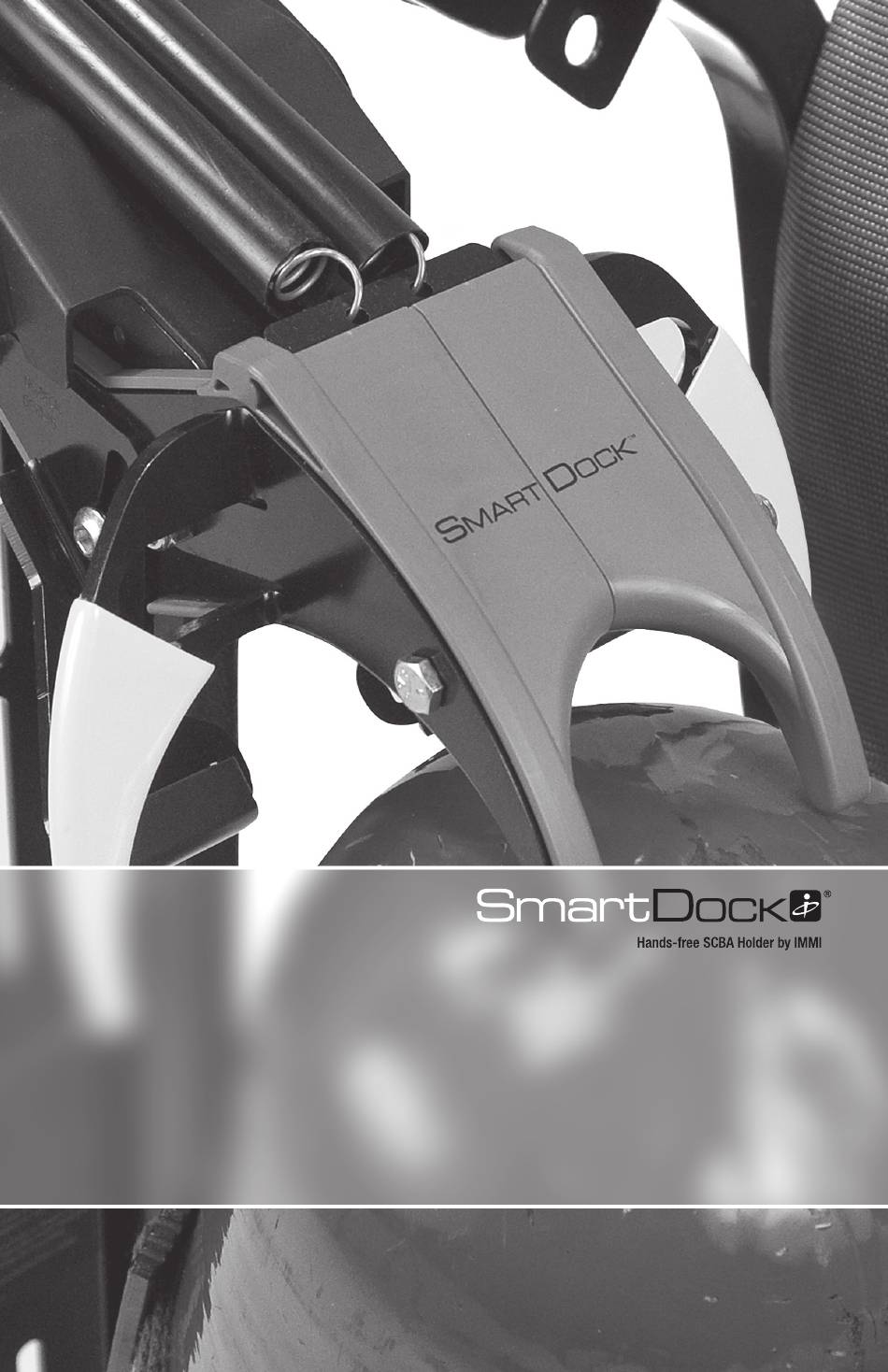

  • Page 1 Installation/User’s Guide Guide de l’Utilisateur Installations- /Gebrauchsanleitung For International Markets U.S. Patent No. 7,922,246 Patent Pending...

  • Page 2: Table Of Contents

    Insert Cylinder into SmartDock ............. 8 Adjust Head Height ................. 9 Final “Wing” Adjustment................ 9 Final Lower Knob Adjustment ............... 9 Installing the SmartDock into the Seat ............10 Mounting the SmartDock to the Vehicle ............10 Normal Usage Adjustment ................11 Use ........................12...

  • Page 3: General Information

    In the event of a collision, the top claws lock from inertial forces for a secure hold. The unique feature of the SmartDock hands-free SCBA holder is that it removes the need for the firefighter to perform any extra latching, buckling or strapping action when placing the bottle in the bracket, or for removal.

  • Page 4: Warnings And Cautions

    SmartDock to hold the bottle. The SmartDock must be kept clean. Make sure the claws are kept clean and oil free. To clean the SmartDock, use only warm water and mild detergent.
  • Page 5 During a crash, the air pack is held in place by the top and bottom claws. The bottom claw is the receptacle into which the bottle must fit (see drawing below). Failure to install, maintain and use SmartDock in accordance with the instructions in this Installation /User’s Guide and those provided by the Vehicle...

  • Page 6: Tools

    Installation | User’s Guide ® Tool List • T45 Torx Plus driver • 13 mm sockets (2) • Torque wrench capable of reading from 8 to 30 ft*lbs (10 to 40 N-m) SmartDock Parts Claw Height Adjustment Knob Vertical Claw...

  • Page 7: Initial Set-Up And Adjustment

    Step 1. Raise SmartDock “Head” Before installing the cylinder into the SmartDock for the first time, verify that the SmartDock head is at least as high or slightly higher than the length of the SCBA bottle as measured from the rounded bottom to the rounded top of the cylinder.

  • Page 8: Open The Smartdock

    For 6.8 L bottles, adjust knob out approximately 25mm (1”). For all other sizes, adjust the knob in or out as required to fully seat the lower claw. SmartDock claw assembly uses high spring force to open and close. Use caution and avoid potential pinch points when operating claw assembly manually.

  • Page 9: Adjust Head Height

    SCBA air cylinder and the bottom of the SmartDock head is eliminated. The top of the SCBA air cylinder should be just touching the bottom of the SmartDock head.

  • Page 10: Installing The Smartdock Into The Seat

    SCBA compatible seats. Only install SmartDocks into approved seats. 1. After removing the locknuts, place the SmartDock in the seat and check the position of the pre-installed mounting bolts and spacers. If the pre-installed hardware does not line up with the existing mounting holes, the upper and lower bolts may be shifted in their respective mounting slots.

  • Page 11: Normal Usage Adjustment

    SCBA air cylinder length that can affect the fit of individual SCBA air cylinders and the SmartDock. • If the head is too high, the SCBA air cylinder will seem loose in the SmartDock, as the head will not be touching the top of the SCBA air cylinder. If severely...

  • Page 12: Use

    Do not unbuckle seat belt until the vehicle has come to a stop, the parking brake is engaged and the officer indicates it is safe to exit the cab. Exit the seat by bending forward to release the SmartDock and then tighten the pack harness straps.

  • Page 13: Maintenance

    ® Maintenance The SmartDock needs to be kept clean. Make sure the claws are kept clean and oil free. Check the claws periodically to make sure they freely open and snap shut. To clean the SmartDock, use only warm water and mild detergent. Never lubricate.
  • Page 16 BRINGING SAFETY TO PEOPLE ™ Coopies Field | Coopies Lane | Morpeth | Northumberland NE61 6JT | 01670 501 950 imminet.com ©2015 IMMI. All rights reserved. 01/15 3998P PN921237 Rev 05...
