IMMI IHC Installation

IHC
Installation

What is the IHC and how does it work?

IHC stands for Inflatable Head Curtain. In the event of a side roll, the IHC
is deployed by the master roll sensor, at which time a gas generator inflates
the curtain airbag.
The IHC is designed to work in conjunction with a 3-point seat belt.
ALWAYS WEAR YOUR SEAT BELT.

Important Facts

PLEASE READ THIS ENTIRE GUIDE BEFORE INSTALLING
THE IHC.
1. The IHC is to be used in a specific seating position. Check the part
number on the back of module to ensure correct application.
2. Always follow the vehicle manufacturer's installation guide. Use
this guide in addition to the vehicle manufacturer's guide.
3. Make sure the battery disconnect switch is in the OFF position and
battery leads are disconnected from battery.
4. DO NOT PUNCTURE, DRILL OR APPLY HEAT TO IHC.
5. DO NOT MOUNT ANYTHING NEAR THE IHC that could interfere
with the travel path of the device.
6. The IHC is only designed to activate once. If the IHC is activated or
damaged, unit must be replaced by authorized personnel.
WARNING
DO NOT APPLY HEAT
Temperatures over 150° C (257° F)
could cause the unit to deploy. The
deploying IHC could cause injury.
WARNING
HAZARDOUS OPERATION
Applying power prematurely could deploy occupant
protective devices, causing serious injury to installer.
Disconnect and tag out power. Always make
connections to Roll Sensor last. Keep clear of
protective devices when first applying power.

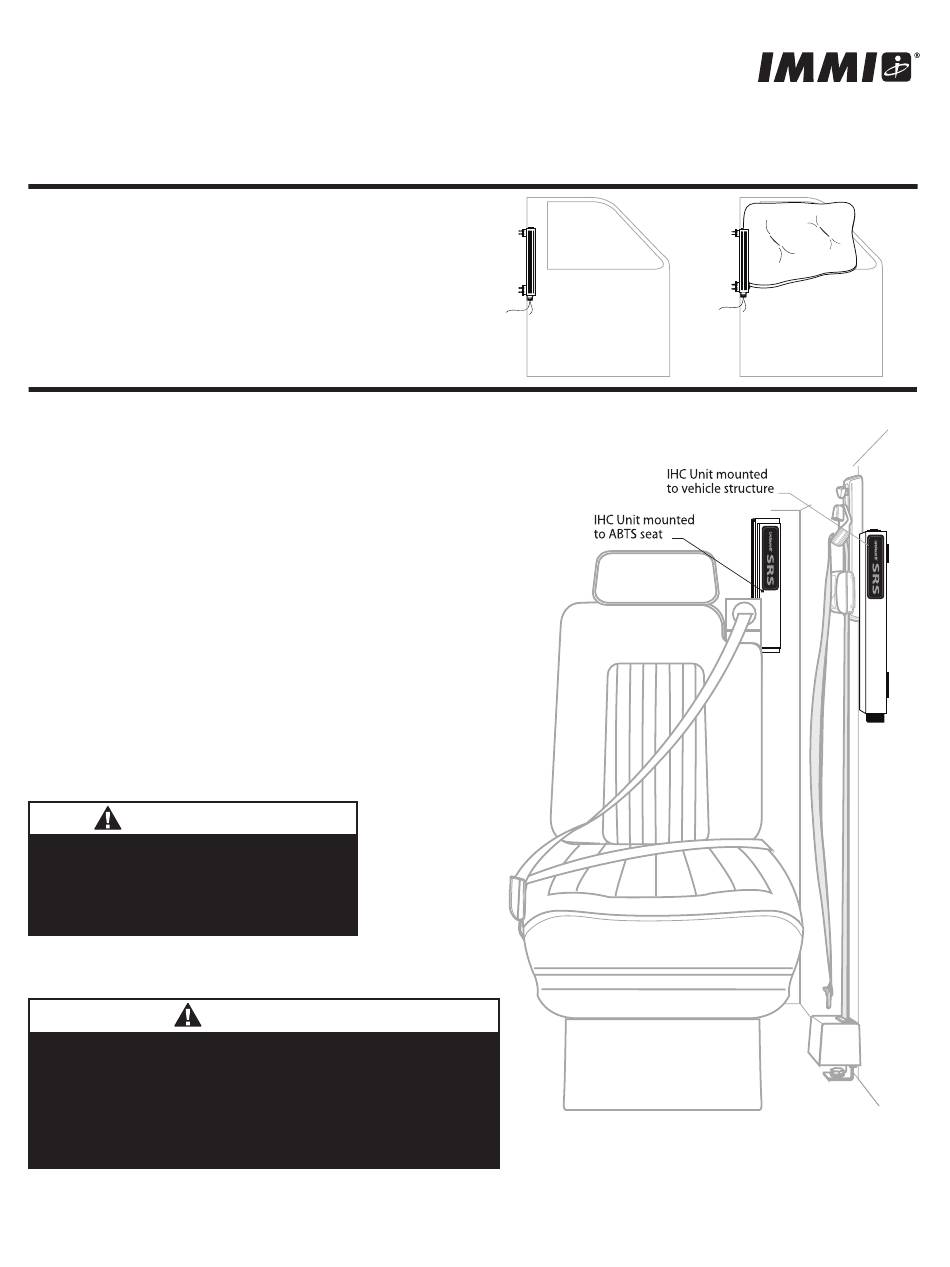

IHC Stowed
1
18881 IMMI Way
Westfield, IN 46074-3001
317-896-9531
imminet.com
IHC Deployed
Orig. 01/06 rev01 12/17
