6950 - 6970
Read carefully the present use and maintenance manual in every part before
proceeding to use. The following machine has been examined according to the
Directive Machines 2006/42, 2004/108, 2006/95 and following changes and
integrations.
Manufactured and distributed by : Annovi Reverberi S.p.A.
Via M.L. King 3
41122 Modena (Italy)
www.annovireverberi.it

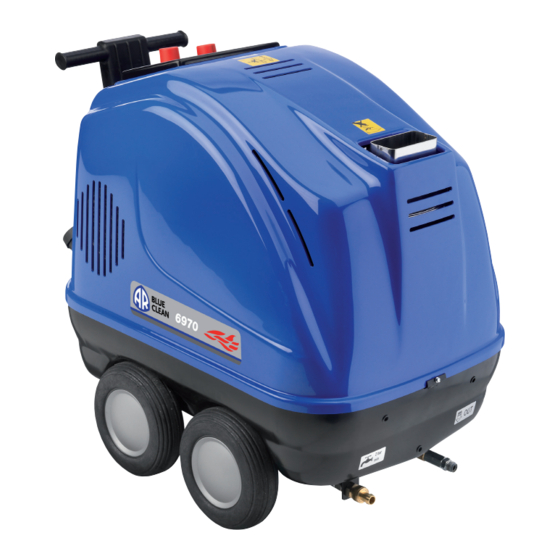

Hot water High
pressure washer
Original instructions
Code XXXXX - XX
Advertisement
Table of Contents
Related Manuals for Blue Clean 6950
Summary of Contents for Blue Clean 6950
- Page 1 6950 - 6970 Read carefully the present use and maintenance manual in every part before proceeding to use. The following machine has been examined according to the Directive Machines 2006/42, 2004/108, 2006/95 and following changes and integrations. Hot water High pressure washer Manufactured and distributed by : Annovi Reverberi S.p.A.
-
Page 2: Table Of Contents
Technological innovation, high preformances and strenght are the main features of the machine 6950/6970. This manual is an integral part of the washer and it must be found easily by the personnel responsible about the maintenance and by the user. -
Page 3: Machine Identification
AR BLUE CLEAN 6950 - 6970 The machine has been designed to clean or wash, with hot or cold water, objects or surfaces which can stand the mechanical treatment of the water jet under high pressure and by the action of the chemicals products (detergents). -
Page 4: Technical Features
AR BLUE CLEAN 6950 - 6970 3.TECHNICAL FEATURES MODEL 6950 6970 Pressure P.S.I. 2200 2900 Power KW (OUTPUT) KW (INPUT) 1450 1450 Voltage V/Hz 220-60Hz 3 ~ 220-60Hz 3 ~ Max capacity Gal/h Temperature °Δ T °C Fuel tank Liters... -
Page 5: Main Parts
AR BLUE CLEAN 6950 - 6970 5. MAIN PARTS ELECTRIC CABLE FUEL FILTER ELECTRIC MOTOR HIGH PRESSURE PUMP BOILER PRESSURE VALVE ELECTRIC SYSTEM COMBUSTION HEAD DETERGENT TANK PRESSURE SWITCH FUEL TANK USE AND MAINTENANCE HANDBOOK Page 5... -
Page 6: Safety Regulations
AR BLUE CLEAN 6950 - 6970 6. SAFETY REGULATIONS • Make sure that the machine is constantly supplied with water. Dry working would cause serious damages to the machine seal system. • Electrical connections must be carried out by skilled/trained personnel only. -
Page 7: Machine Installation
AR BLUE CLEAN 6950 - 6970 7. MACHINE INSTALLATION The machine you are about to use will give you the best performances if you install itself following our instructions. Before setting the machine at work, make sure that the ma- chine lies perfectly on a horizontal surface. -
Page 8: Machine Start Up
AR BLUE CLEAN 6950 - 6970 8. MACHINE START-UP After having installed the machine, in order to operate it, open the water supply faucet H. The control panel has been designed to run the operations easily. The knob A has three main functions:... -
Page 9: Regulation Of The Operating Pressure
AR BLUE CLEAN 6950 - 6970 9. REGULATION OF THE OPERATING PRESSURE On this machine It is possible to regulate the operating pressure. Move to near the machine cover, in the valve access window, see fig. 8. Grip the valve knob, if provi- ded, or use a wrench, if provided, in pos. -
Page 10: Electric Diagram
AR BLUE CLEAN 6950 - 6970 14. ELECTRIC WIRING DIAGRAM THERMAL PROTECTOR PRESSURE SWITCH 40 BAR FUEL ELECTROVALVE PRESSURE SWITCH 15 BAR FUSE PROTECTION ELECTRONIC PRINT BOARD GENERAL ON-OFF SWITCH THERMOSTAT BURNER MOTOR BURNER TRASFORMER PUMP MOTOR BURNER MOTOR USE AND MAINTENANCE HANDBOOK... -
Page 11: Labels
AR BLUE CLEAN 6950 - 6970 15. LABELS The machine comes with a safety warning signs, it is also recommended to comply with all applicable safety regulations issued by the country of installation of the machine. Below is a table shows the types of adhesives used and their meaning:... -
Page 12: Maintenance
AR BLUE CLEAN 6950 - 6970 16. MAINTENANCE WARNING ! • All the fixing and maintenance operations must be carried out by authorized personnel. • All maintenance operations must be carried out keeping the machine on an even floor. The machine must be disconnected from the main power and from the water supply. -
Page 13: Cooling Coil Internal Cleaning
AR BLUE CLEAN 6950 - 6970 EVERY MONTH OR AFTER 100 HOURS OF WORK Clean the combustion head and check the electrodes. Remove the cover, unscrew the three screws fig. 11 pos. A, extract the combustion head group pos. B. Clean with an air jet the head and check the glow plug pos. -
Page 14: Warranty
AR BLUE CLEAN 6950 - 6970 19. WARRANTY The duration of the warranty is in accordance with the relevant legislation in the country where the product is sold (unless otherwise stated by the producer). The warranty covers materials, construction and conformity defects during the warranty period, during which time the manufacturer will replace defective parts and repair or replace the product if excessively worn in normal use. -
Page 15: Warranty Certificate
AR BLUE CLEAN 6950 - 6970 20. WARRANTY CERTIFICATE USE AND MAINTENANCE HANDBOOK Page 15... -
Page 16: Drawbacks, Causes And Solutions
AR BLUE CLEAN 6950 - 6970 21. DRAWBACKS, CAUSES AND SOLUTIONS PROBLEM POSSIBLE CAUSES SOLUTION WATER DOES NOT COME OUT Dirty water filter Clean or replace Blocked infeed valves Check Clogged lance nozzle Clean INSUFFICIENT OR IRREGULAR The detergent valve is open and... -
Page 17: Declaration Of Conformity
AR BLUE CLEAN 6950 - 6970 22. DECLARATION OF CONFORMITY We Annovi Reverberi S.p.A., Bomporto (Mo),Italy declare that the following AR Blue Clean Machine(s): Designation of Machine High Pressure Washer Model No / Type 6950 6970 Input power 5 kW... - Page 18 AR BLUE CLEAN 6950 - 6970 USE AND MAINTENANCE HANDBOOK Page 18...
- Page 19 AR BLUE CLEAN 6950 - 6970 USE AND MAINTENANCE HANDBOOK Page 19...
- Page 20 AR BLUE CLEAN 6950 - 6970 VIA ALDO MORO, 40/42 41030 BOMPORTO (MO) ITALY supporth@annovireverberi.it USE AND MAINTENANCE HANDBOOK Page 20...
