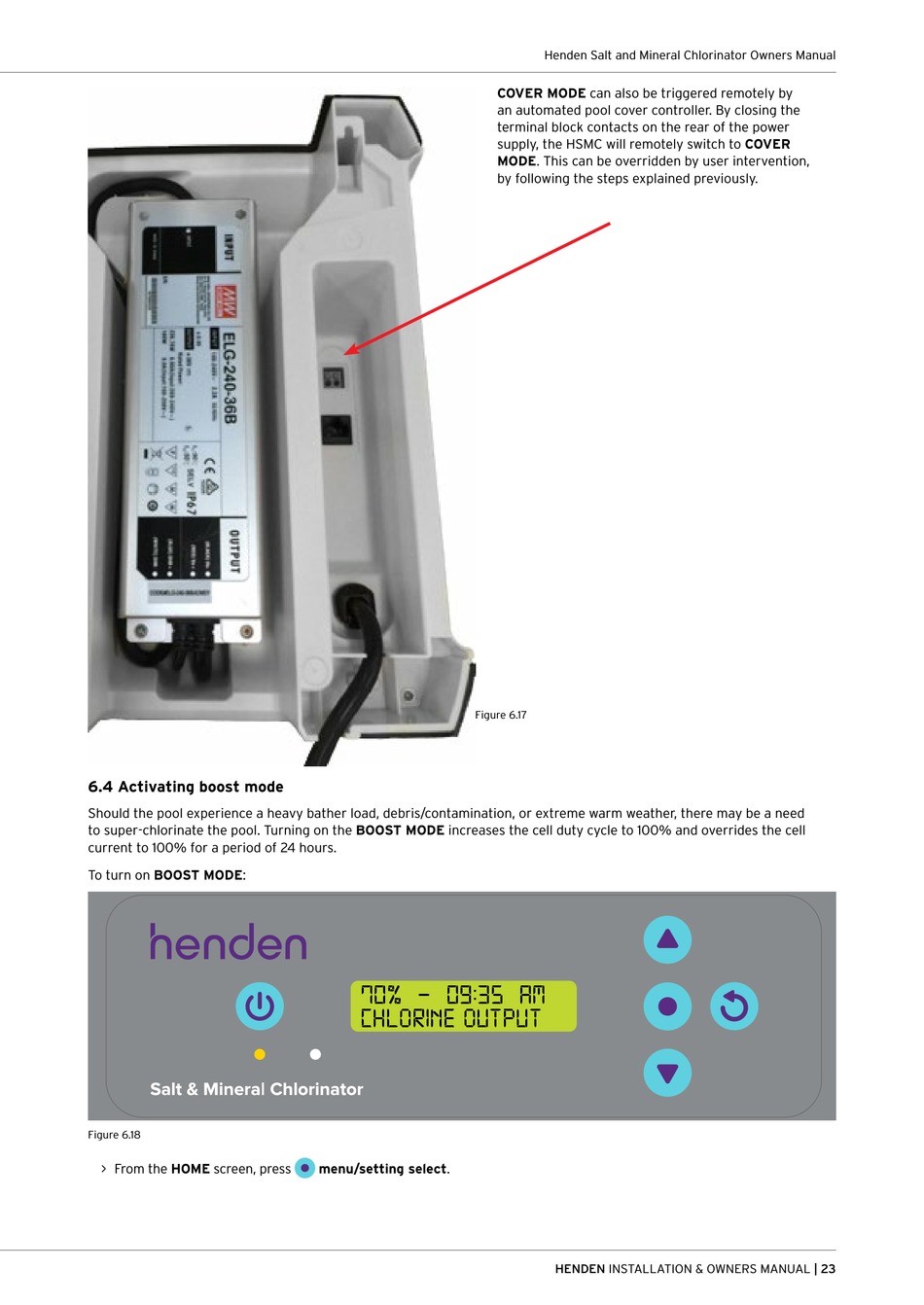

6.4 Activating boost mode

Should the pool experience a heavy bather load, debris/contamination, or extreme warm weather, there may be a need
to super-chlorinate the pool. Turning on the BOOST MODE increases the cell duty cycle to 100% and overrides the cell
current to 100% for a period of 24 hours.
To turn on BOOST MODE:
Figure 6.18
> From the HOME screen, press
Figure 6.17
70% – 09:35 AM
CHLORINE OUTPUT
menu/setting select.
Henden Salt and Mineral Chlorinator Owners Manual
COVER MODE can also be triggered remotely by
an automated pool cover controller. By closing the
terminal block contacts on the rear of the power
supply, the HSMC will remotely switch to COVER
MODE. This can be overridden by user intervention,
by following the steps explained previously.
