TrustCare Let's Move Outdoor Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SERVICE MANUAL
Let's Move Outdoor rollator.
From Trustcare.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Let's Move Outdoor and is the answer not in the manual?

Questions and answers

Related Manuals for TrustCare Let's Move Outdoor

Summary of Contents for TrustCare Let's Move Outdoor

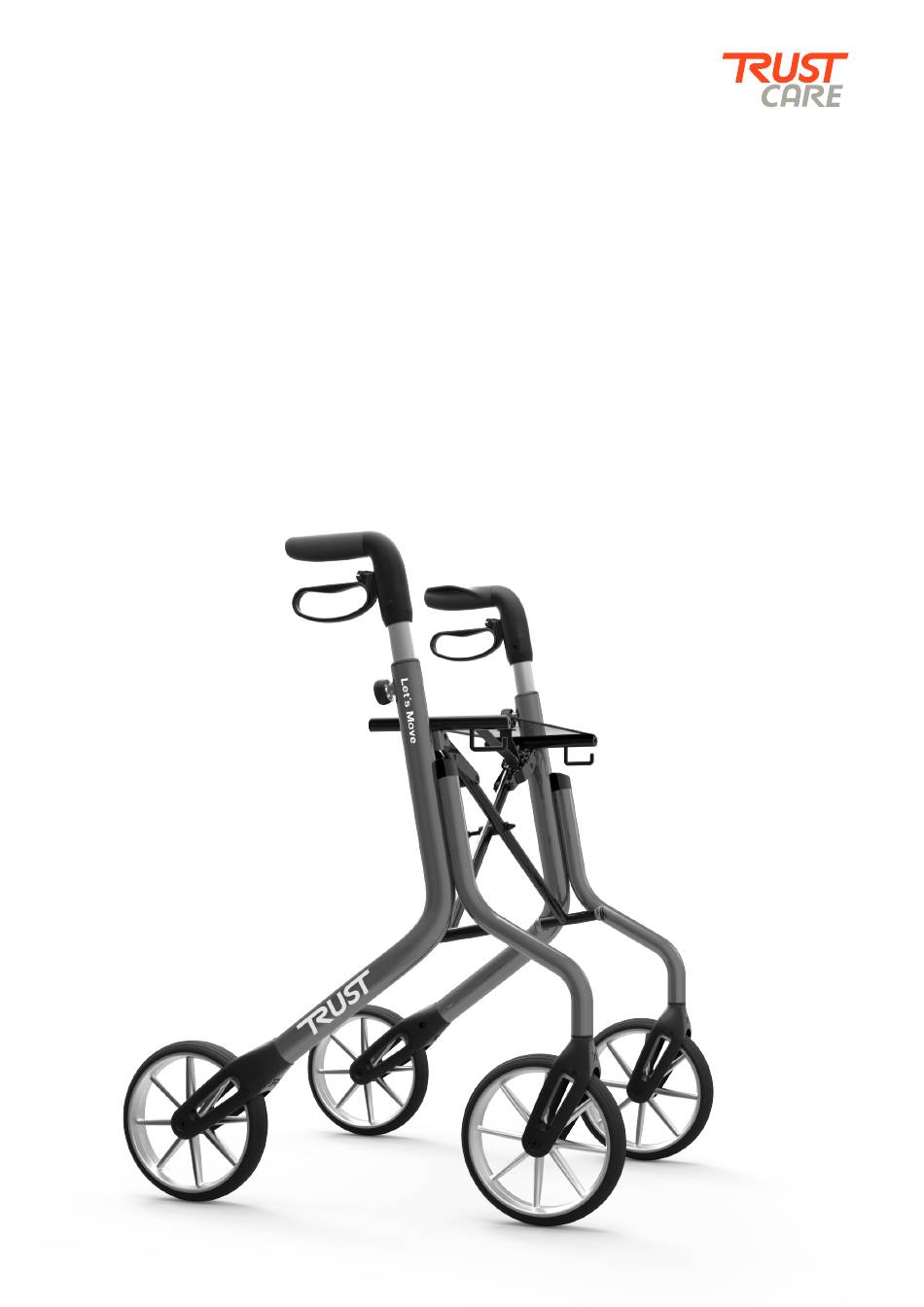

  • Page 1 SERVICE MANUAL Let’s Move Outdoor rollator. From Trustcare.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Exchange of front and rear wheel Art. No. LM317 Page 3 Exchange of front fork and bearings Art. No. LM318 Page 4 Exchange of rear fork Art. No. LM323 Page 5 Exchange of brake wire Art. No. LM305 Page 6 - 8 Exchange of linkage arm Art.

  • Page 3: Exchange Of Front And Rear Wheel

    Let’s Move Service Manual. Revision version No: 1 - Jan 2020 1. Unscrew the screws. 2. The wheel can be taken o and replaced with a new one. 3. Replace wheel bearings if necessary. 4. Screw the wheel back in place. 3. www.trustcare.se...

  • Page 4: Exchange Of Front Fork And Bearings

    Let’s Move Service Manual. Revision version No: 1 - Jan 2020 1. Unscrew the small screw. 2. Pull out the front wheel assembly. 3. Separate the front fork and 4. Push the front fork assembly into 5. Secure the small screw. bushing and replace with new ones. position. 4. www.trustcare.se...

  • Page 5: Exchange Of Rear Fork

    Let’s Move Service Manual. Revision version No: 1 - Jan 2020 1. Unscrew the screws. 2. Remove the wheel. 3. Unscrew the fork screw. 4. Replace the fork. 5. Secure the fork with screw. 6. Put the wheel back . 7. Secure the wheel with screws. 5. www.trustcare.se...

  • Page 6: Exchange Of Brake Wire

    5. Disconnect the brake spring and the brake pad from the brake wire . 6. Push out the pin with a mandrel. 7. Pull out the handle. 8. Remove the screw from brake handle and pull the brake wire out . 6. www.trustcare.se...
  • Page 7 14. Attach the wire assembly to the the frame. brake fastner. 15. Attach the brake pad to the 16. Put outer cover over assembly. 17. Check that your brake parts are spring. Insert nut if necessary. assembled as above. 7. www.trustcare.se...
  • Page 8 21. For Right side make a loop on the 22. Push the whole assembly into the wire as above. wire as above. rear leg. 23. Secure with the screw. 24. Put the height adjustment knob 25. Check the brake function. back in the place. 8. www.trustcare.se...

  • Page 9: Exchange Of Linkage Arm

    3. Mount the new linkage arm. On the left side the 4. Mount the pars using screws, washers and nuts hook for folding and the spring should also be mounted. 9. www.trustcare.se...

  • Page 10: Exchange Of Seat And Seat Mounting Set

    4. Pull the old seat out from the tubes and replace with a 5. Secure the new seat back in place. new one. 6. Make sure that the nuts are tighten. 7. Attach the fabric band back to the unlock hook. 10. www.trustcare.se...

  • Page 11: Exchange Of Unfold Hook

    5. Secure the unfold hook back in the place. 6. Attach the fabric band back to the 7. Make sure that the hook can move freely. If necessary adjust the A-Screw so unlock hook. that the hook can easily rotate. 11. www.trustcare.se...

  • Page 12: Art. No. 0493

    3. Tighten the dome nut securely. Fix the nut with a drop of Loctite so it will not fall o . The metal sleeve serves as a fixture peg for the hook when the rollator is folded. 12. www.trustcare.se...
