1
Remove
the
shipping
Depress the
strap and
release lever on
retain
all three slides
and remove the
filler cabinet
from the
mounting frame.
Instructions for
Reversing 434 Unit

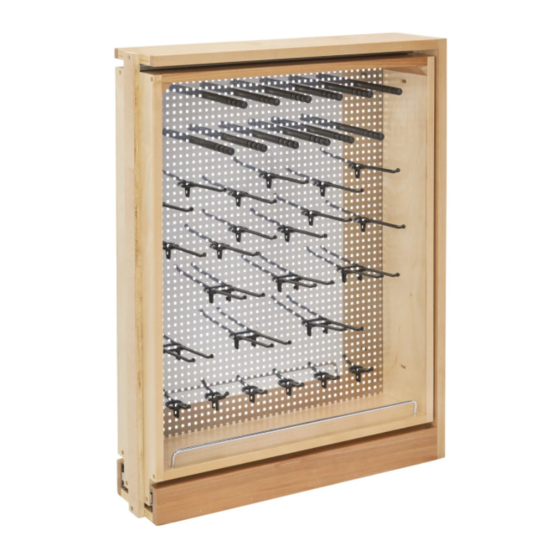

The 434 Perforated filler comes from the factory with the
stainless steel perforated panel on the left side.
Follow the instruction below to switch the panel to the right side.
5
Insert filler cabinet back into
the mounting frame.
Check to ensure slides operate smoothly.
2
Remove the top product
member from the filler.
3
Rotate the product
member 180 degress,
align the edge of the
filler and re-attach.
4
Repeat steps 2 and 3 with the lower two slides.
6
Re-install shipping
strap and
proceed to
432/434 installation
instructions.
