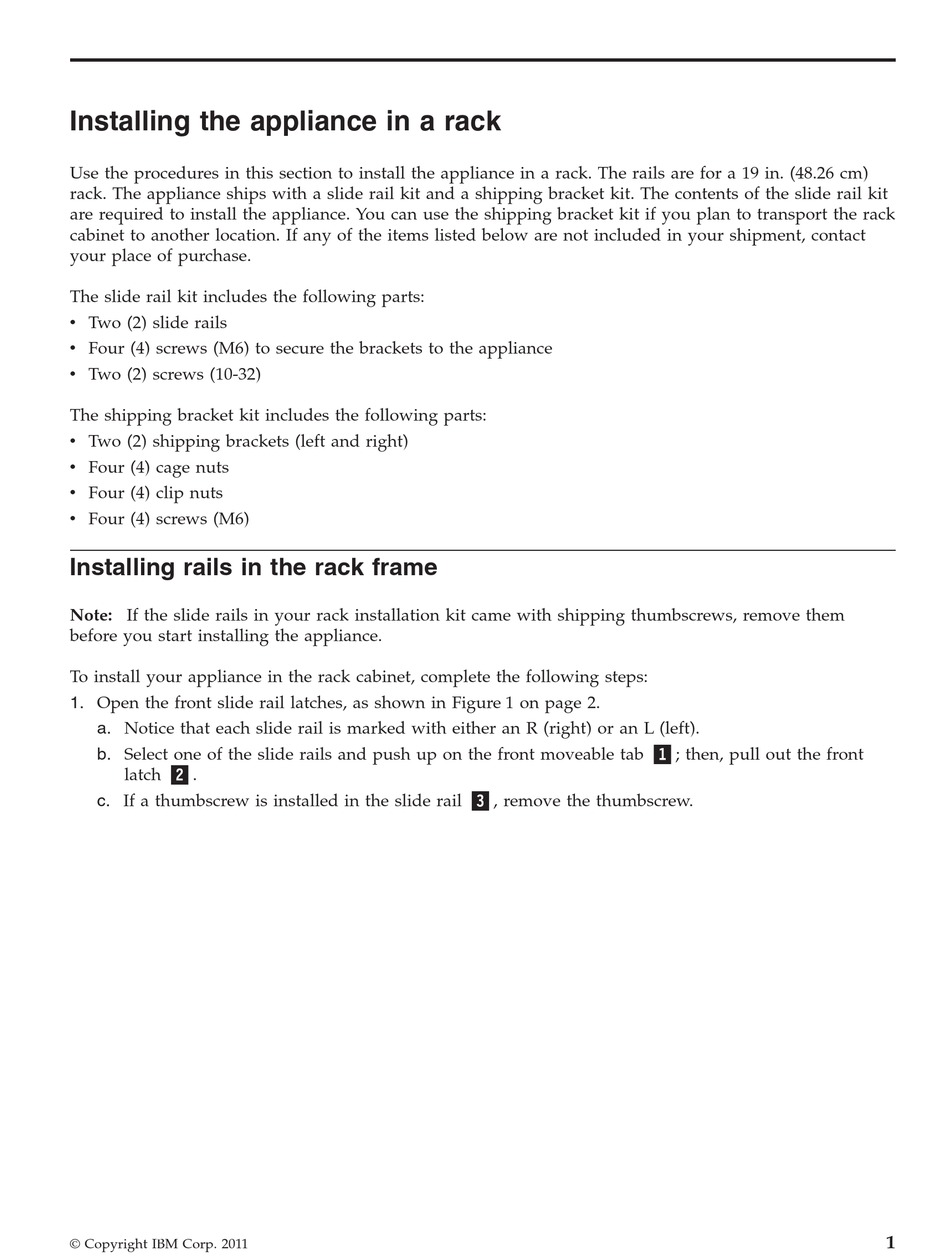

Installing the appliance in a rack

Use the procedures in this section to install the appliance in a rack. The rails are for a 19 in. (48.26 cm)

rack. The appliance ships with a slide rail kit and a shipping bracket kit. The contents of the slide rail kit

are required to install the appliance. You can use the shipping bracket kit if you plan to transport the rack

cabinet to another location. If any of the items listed below are not included in your shipment, contact

your place of purchase.

The slide rail kit includes the following parts:

v Two (2) slide rails

v Four (4) screws (M6) to secure the brackets to the appliance

v Two (2) screws (10-32)

The shipping bracket kit includes the following parts:

v Two (2) shipping brackets (left and right)

v Four (4) cage nuts

v Four (4) clip nuts

v Four (4) screws (M6)

Installing rails in the rack frame

Note: If the slide rails in your rack installation kit came with shipping thumbscrews, remove them

before you start installing the appliance.

To install your appliance in the rack cabinet, complete the following steps:

1. Open the front slide rail latches, as shown in Figure 1 on page 2.

a. Notice that each slide rail is marked with either an R (right) or an L (left).

b. Select one of the slide rails and push up on the front moveable tab 1 ; then, pull out the front

latch 2 .

c. If a thumbscrew is installed in the slide rail 3 , remove the thumbscrew.

Page 1 Select one of the slide rails and push up on the front moveable tab 1 ; then, pull out the front latch 2 . c. If a thumbscrew is installed in the slide rail 3 , remove the thumbscrew. © Copyright IBM Corp. 2011...
Page 2 Drop the rail into place until it clicks. Push the front latch 2 in all the way. c. Repeat steps 1 through 3 to install the other rail into the rack. Make sure that each front latch is fully engaged. SiteProtector SP3001: Rack Mount Guide...
Page 3 Rack Front Figure 3. Install the front end of the slide rails 4. Secure the appliance slide rails in the rack, as shown in Figure 4: a. Install a 10-32 screw in the rear of the right slide. b. Install a 10-32 screw in the rear of the left side. Rack Rear Figure 4.
Page 4 5. If the appliance is locked into place, slide the appliance toward you so that you can attach the brackets with the captive screws. 6. Slide the appliance into the rack, as shown in Figure 6 on page 5. SiteProtector SP3001: Rack Mount Guide...
Page 5: Copyright Statement
Figure 6. Slide the appliance into the rack Copyright statement © Copyright IBM Corporation 2011. US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp. (P) PN: 46N5773 (2P) EC: L68311...
