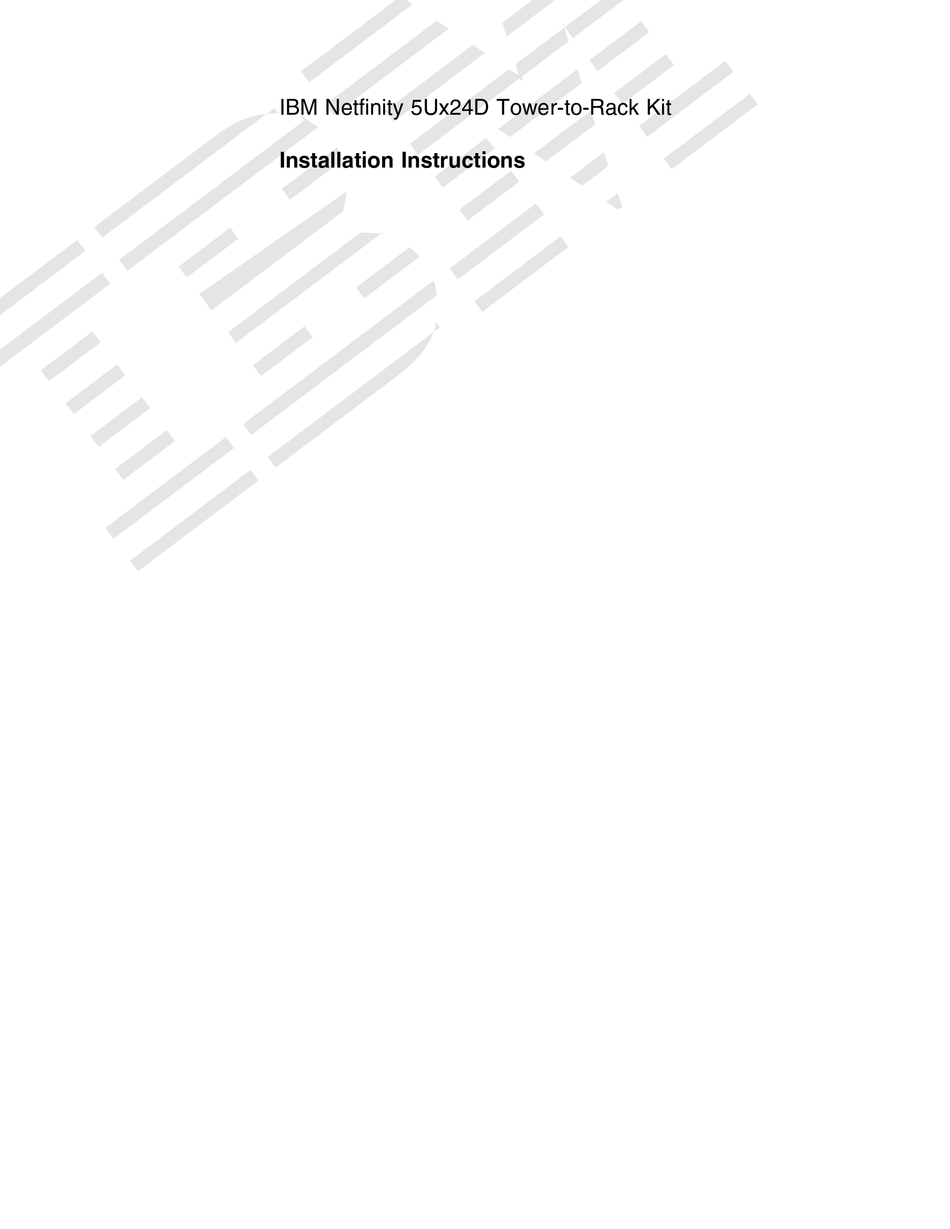

- Page 1 IBM Netfinity 5Ux24D Tower-to-Rack Kit Installation Instructions...
- Page 3 IBM Netfinity 5Ux24D Tower-to-Rack Kit Installation Instructions...
- Page 4 This publication was developed for products and services offered in the United States of America. IBM may not offer the products, services, or features discussed in this document in other countries, and the information is subject to change without notice. Consult your local IBM representative for information on the products, services, and features available in your area.
-
Page 5: Table Of Contents
..........IBM Statement of Limited Warranty for United States, Puerto Rico, and Canada (Part 1 - General Terms) . - Page 6 ........ Copyright IBM Corp. 2000...
-
Page 7: Safety Information
Antes de instalar este produto, leia as Informações sobre Segurança. Pred inštaláciou tohto zariadenia si pečítaje Bezpečnostné predpisy. Antes de instalar este producto lea la información de seguridad. Läs säkerhetsinformationen innan du installerar den här produkten. Copyright IBM Corp. 2000... - Page 8 5Ux24D Tower-to-Rack Kit Installation Instructions...
-
Page 9: 5Ux24D Tower-To-Rack Kit Introduction
IBM Safety Information booklet One rack installation template One or more system-specific service labels One IBM Netfinity 5600 Hot-Plug SCSI Setup Utility diskette This documentation Note: The illustrations in this documentation might be slightly different from your hardware. Tool requirements... -
Page 10: Installation Overview
Installation overview Use the following general steps to prepare your server and install the 5Ux24D Tower-to-Rack Kit: Follow the instructions in “Preparing the server for rack installation” on page 3 to prepare your server. Follow the instructions in “Installing the server in a rack cabinet” on page 14 to install your server. Attach all cables and neatly route them before turning on your server. -
Page 11: Preparing The Server For Rack Installation
2. First, remove power cords from outlet. 3. Attach signal cables to connectors. 3. Remove signal cables from connectors. 4. Attach power cords to outlet. 4. Remove all cables from devices. 5. Turn device ON. Copyright IBM Corp. 2000... -
Page 12: Removing The Server Door
3. Turn Off the server and any attached devices. 4. Disconnect all power cords from the server and electrical outlets. 5. Disconnect all communication cables from external devices that are connected to your server. 6. Note the location of any remaining cables; then, disconnect all other cables from the server. 7. -
Page 13: Removing The Server Bezel
9. Remove the server bezel as shown below: a. Locate the blue bezel-release lever B , on the left side of the server near the top front corner, and move it upward. Figure 3. Removing the server bezel b. Swing the bezel A away from the server; then, lift the bezel tabs out of the tab openings on the bottom of the server to remove the bezel from the server. -
Page 14: Installing The New Bottom Cover
11. Install the new bottom cover A that comes with this kit: Figure 5. Installing the new bottom cover a. Carefully turn the server top-side down on a flat surface; then, select one of the server covers to use as the bottom cover. Note: Both covers are the same, and you can use either one for the top or bottom cover. -
Page 15: Moving The Power-Switch Panel
13. Move power-switch panel A to its new location B : Note: You will need to temporarily remove any fan assemblies located at the front of the server. To remove a fan assembly, release the latch that secures the assembly and carefully lift it from the server. -
Page 16: Removing The Existing Cable From The Led Panel Assembly
15. For Netfinity 5600 servers, you must disconnect the LED panel cable from the LED panel; otherwise, skip to step 16 on page 9. a. Remove the two screws A that hold the LED panel assembly together. Figure 9. Removing the existing cable from the LED panel assembly b. -
Page 17: Locating The Led Panel Cable Connector On The System Board
i. Attach the longer LED panel cable that comes with this kit to J29. j. Align the processor board with the connector on the system board (use the alignment pin on the system board connector as a guide) and carefully seat the processor board. Note: Do not force the processor board into place. -
Page 18: Routing The Led Panel Cable
17. Run the LED panel cable along the top of the hard disk drive (HDD) backplane assembly; then, tuck the cable under the protrusions at the rear of the HDD backplane assembly. Figure 12. Routing the LED panel cable Note: Make sure that you route the cable around any location where you removed a fan assembly. Cables can be routed on top of a server blower as long as you do not obstruct vents. -
Page 19: Repositioning The Non-Hot-Swap Drives
21. If you removed the fan assemblies from your server, reinstall them now. 22. Reinstall the hard drives that you removed earlier. Make sure that you install the hard drive with SCSI ID 0 in the left-most position, with the remaining drives in sequential order from left to right. 23. -
Page 20: Installing The Release-Latch-Bracket Assemblies
24. Install the left and right release-latch-bracket assemblies on the server as shown below: Figure 15. Installing the release-latch-bracket assemblies a. Insert the bracket tab B into the slot on the side of the server A until the upper notch on the bracket tab aligns with the side of the server. -
Page 21: Installing The Top Cover
26. Install the new top cover as shown below: a. Attach the appropriate service label for your server on the inside surface of the top cover. b. Align the top cover with the top of the server, about 25 mm (1 in.) from the front of the server. Figure 17. -
Page 22: Installing The Server In A Rack Cabinet
See Figure 19 on page 15 for cage nut or clip nut locations on the front (release latch retaining screws C and slide rails D ) and rear (cable-management arm hinge bracket B and slide rails A ) of your rack. Copyright IBM Corp. 2000... -
Page 23: Locating Cage Nuts Or Clip Nuts On The Front And Rear Of A Rack Cabinet
Front Rear Figure 19. Locating cage nuts or clip nuts on the front and rear of a rack cabinet Installing the server in a rack cabinet... -
Page 24: Installing The Slide Rails
3. Use the pins A on the slide rail to align the slide rail to the rack; then, use four M6 screws (two in front and two in the rear) to secure the rail to the rack. Figure 20. Installing the slide rails Note: Install the left and right slide rails before continuing with the installation. -
Page 25: Placing The Server On The Slide Rails
5. Extend both slide rails all the way out of the rack. Note: When the slide rails are fully extended, safety latches lock the rails in place. To release the safety latches, press them in toward the server. 18 kg (37 lbs) 32 kg (70.5 lbs) 55 kg (121.2 lbs) CAUTION:... -
Page 26: Securing The Server To The Rails
7. Use four M4 screws per side to secure the server to the slide rails; then, remove the rack-support wheels and store them for potential future use. Figure 23. Securing the server to the rails 8. Connect all server and device cables; then, route them along the cable-management arm assembly and secure them to the arm with the cable straps A that come with the 5Ux24D Tower-to-Rack Kit. -
Page 27: Securing The Server Inside The Rack
9. Slide the server fully into the rack until the left and right release latches A engage on the slide rails. Figure 25. Securing the server inside the rack 10. Install the M6 server retaining screws B to provide added stability to your server, especially if you are moving the rack or the rack is located in a vibration-prone area. -
Page 28: Using The Netfinity 5600 Setup Utility Diskette
Using the Netfinity 5600 setup utility diskette If you are installing the 5Ux24D Tower-to-Rack Kit on a Netfinity 5600 server, insert the IBM Netfinity 5600 Hot-Plug SCSI Setup Utility disk in drive a: and restart the system. Important 1. Only run this utility if you are installing this kit on a Netfinity 5600 server. -
Page 29: Getting Help, Service, And Information
IBM or your reseller, if authorized by IBM, will make Engineering Changes (ECs) available that apply to your hardware. Be sure to retain your proof of purchase to obtain warranty service. Refer to the IBM hardware warranty for a full explanation of IBM's warranty terms. -
Page 30: Product Warranties And Notices
Machine. If a Machine does not function as warranted during the warranty period, and IBM or your reseller are unable to either 1) make it do so or 2) replace it with one that is at least functionally equivalent, you may return it to your place of purchase and your money will be refunded. - Page 31 IBM or your reseller of changes in a Machine's location. IBM is responsible for loss of, or damage to, your Machine while it is 1) in IBM's possession or 2) in transit in those cases where IBM is responsible for the transportation charges.
-
Page 32: Ibm Statement Of Warranty Worldwide Except Canada, Puerto Rico, Turkey, United States (Part 1 - General Terms)
Machine. If a Machine does not function as warranted during the warranty period, and IBM or your reseller are unable to either 1) make it do so or 2) replace it with one that is at least functionally equivalent, you may return it to your place of purchase and your money will be refunded. - Page 33 IBM or your reseller of changes in a Machine's location. IBM is responsible for loss of, or damage to, your Machine while it is 1) in IBM's possession or 2) in transit in those cases where IBM is responsible for the transportation charges.
-
Page 34: Part 2 - Worldwide Country-Unique Terms
Limitation of Liability: The following is added to this Section: Where IBM is in breach of a condition or warranty implied by the Trade Practices Act 1974, IBM's liability is limited to the repair or replacement of the goods or the supply of equivalent goods. Where that condition or warranty relates to right to sell, quiet possession or clear title, or the goods are of a kind ordinarily acquired for personal, domestic or household use or consumption, then none of the limitations in this paragraph apply. - Page 35 2. as to any other actual direct damages, IBM's liability will be limited to the total amount you paid for the Machine that is the subject of the claim. Applicability of suppliers and resellers (unchanged). FRANCE: Limitation of Liability: The following replaces the second sentence of the first paragraph of this Section: In such instances, regardless of the basis on which you are entitled to claim damages from IBM, IBM is liable for no more than: (items 1 and 2 unchanged).
-
Page 36: Notices
(if recurring, the 12 months' charges apply) for the Machine that is the subject of the claim or which otherwise gives rise to the claim. The following item is added to this paragraph: 3. breach of IBM's obligations implied by Section 12 of the Sale of Goods Act 1979 or Section 2 of the Supply of Goods and Services Act 1982. - Page 38 Part Number: 19K0825 Printed in U.S.A. 19K 825...
