Summary of Contents for Lincoln Electric SPEEDTEC 505SP BR

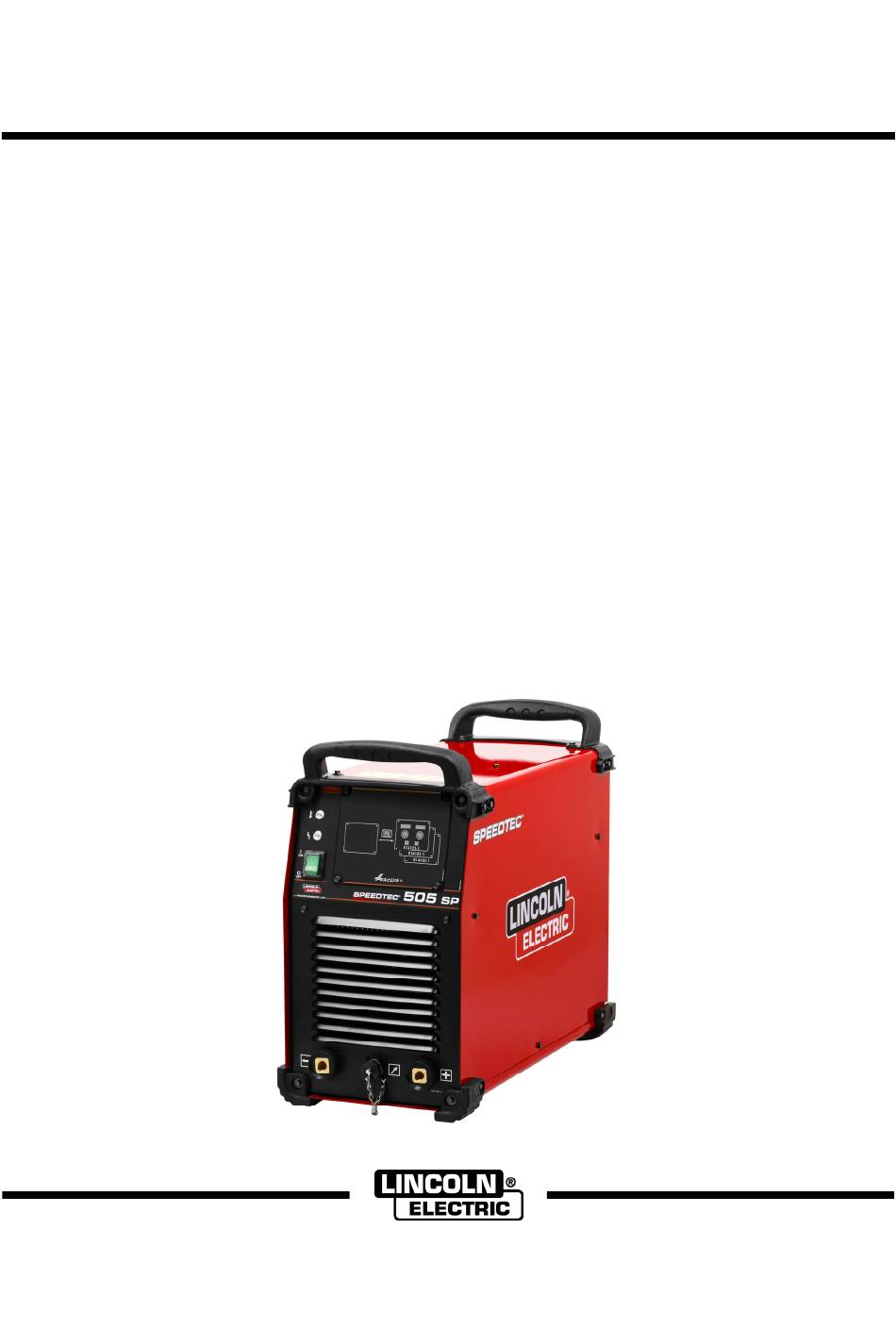

- Page 1 IM3061 01/2020 REV03 SPEEDTEC 505SP BR OPERATOR’S MANUAL ENGLISH Lincoln Electric Bester Sp. z o.o. ul. Jana III Sobieskiego 19A, 58-263 Bielawa, Poland www.lincolnelectric.eu...
-
Page 2: Table Of Contents
12/05 THANKS! For having choosen the QUALITY of the Lincoln Electric products. Please Examine Package and Equipment for Damage. Claims for material damaged in shipment must be notified immediately to the dealer. For future reference record in the table below your equipment identification information. Model Name, Code & Serial Number can be found on the machine rating plate. -
Page 3: Technical Specifications
Technical Specifications NAME INDEX SPEEDTEC 505SP BR K14116-3 INPUT Input Voltage U Frequency 380V ± 10% or 440V ± 10% 50/60Hz 3-phase Input Power at Rated Cycle Input Amperes I 1max 380V 25,5 kVA @ 60% Duty Cycle (40°C) 38,6 A... -
Page 4: Electromagnetic Compatibility (Emc)
If any electromagnetic disturbances are detected the operator must put in place corrective actions to eliminate these disturbances with, if necessary, assistance from Lincoln Electric. Before installing the machine, the operator must check the work area for any devices that may malfunction because of electromagnetic disturbances. -
Page 5: Safety
Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages caused by improper installation, improper care or abnormal operation. - Page 6 MOVING PARTS ARE DANGEROUS: There are moving mechanical parts in this machine, which can cause serious injury. Keep your hands, body and clothing away from those parts during machine starting, operating and servicing. SAFETY MARK: This equipment is suitable for supplying power for welding operations carried out in an environment with increased hazard of electric shock.
-
Page 7: Intoduction
SPEEDTEC 505SP BR can only be connected to a Locate the machine away from radio controlled mating grounded receptacle. - Page 8 ON again. If the error remains, a maintenance is required. Please contact the nearest authorized technical service center or Lincoln Electric and report the error code read. Indicate no communication between the power source and device which...
- Page 9 11. Fuse F2: Use the 2A/400V (6,3x32mm) slow-blow fuse. See "Spare Parts" chapter. Water Cooler Connection SPEEDTEC 505SP BR works with the water cooler 12. Fuse F1: Use the 2A/400V (6,3x32mm) slow-blow COOLARC 46 (see "Accessories" chapter). fuse. See "Spare Parts" chapter.
- Page 10 User Interface Connection Machine and Circuit Protection To connect the User Interface to the power source: The power pource is protected against overheating, overload and accidental short-circuits. Unscrew the Replaceable Panel [4]. If the machine is overheated, the thermal protection circuit will decrease the output current to 0.
- Page 11 We respond to our customers based on the best will become null and void. information in our possession at that time. Lincoln Electric is not in a position to warrant or guarantee such advice, Any noticeable damage should be reported immediately and assumes no liability, with respect to such information and repaired.
-
Page 12: Weee
12/05 Part List reading instructions Do not use this part list for a machine if its code number is not listed. Contact the Lincoln Electric Service Department for any code number not listed. Use the illustration of assembly page and the table below to determine where the part is located for your particular code machine. -
Page 13: Accessories Suggested
Accessories Suggested K10349-PG-xxM Source/wire feeder cable (gas). Available in 5, 10, 15m. K10349-PGW-xxM Source/wire feeder cable (gas and water). Available in 5, 10 or 15m. K14033-1 Work Lead, 3m - GRD-600A-70-3M. K14105-1 Cooler COOLARC 46. K14096-1 SPEEDTEC CART. K14141-1 CART DUAL. ®...
