SPECIFICATIONS
Side-by-side Fridge

DIMENSIONS AND SPECIFICATIONS (for Built-In Style models)

BEFORE YOU BEGIN
Instructions to your plumber: Install 1/2 inch stop cock (tap), located in the cabinetry or adjacent to, or if possible above
fridge cavity. Not to be located in the fridge cavity.
The water line installation is not warranted by the refrigerator or icemaker manufacturer. Follow these recommendations
carefully to minimise the risk of expensive water damage.
Water hammer (water banging in the pipes) in house plumbing can cause damage to refrigerator parts and lead to water
leakage or flooding. Call a qualified plumber to correct water hammer before installing the water supply line to the
refrigerator.
To prevent burns and product damage, do not hook up the water line to the hot water line.
If you use your refrigerator before connecting the water line, make sure the icemaker power switch is in the O (off) position.
Do not install the icemaker tubing in areas where temperatures fall below freezing.
When using any electrical device (such as a power drill) during installation, be sure the device is insulated or wired in a
manner to prevent the hazard of electric shock.
All installations must be in accordance with local plumbing code requirements. Installation of the icemaker must be done
by a qualified service technician.
! WARNING! Connect to potable water supply only.

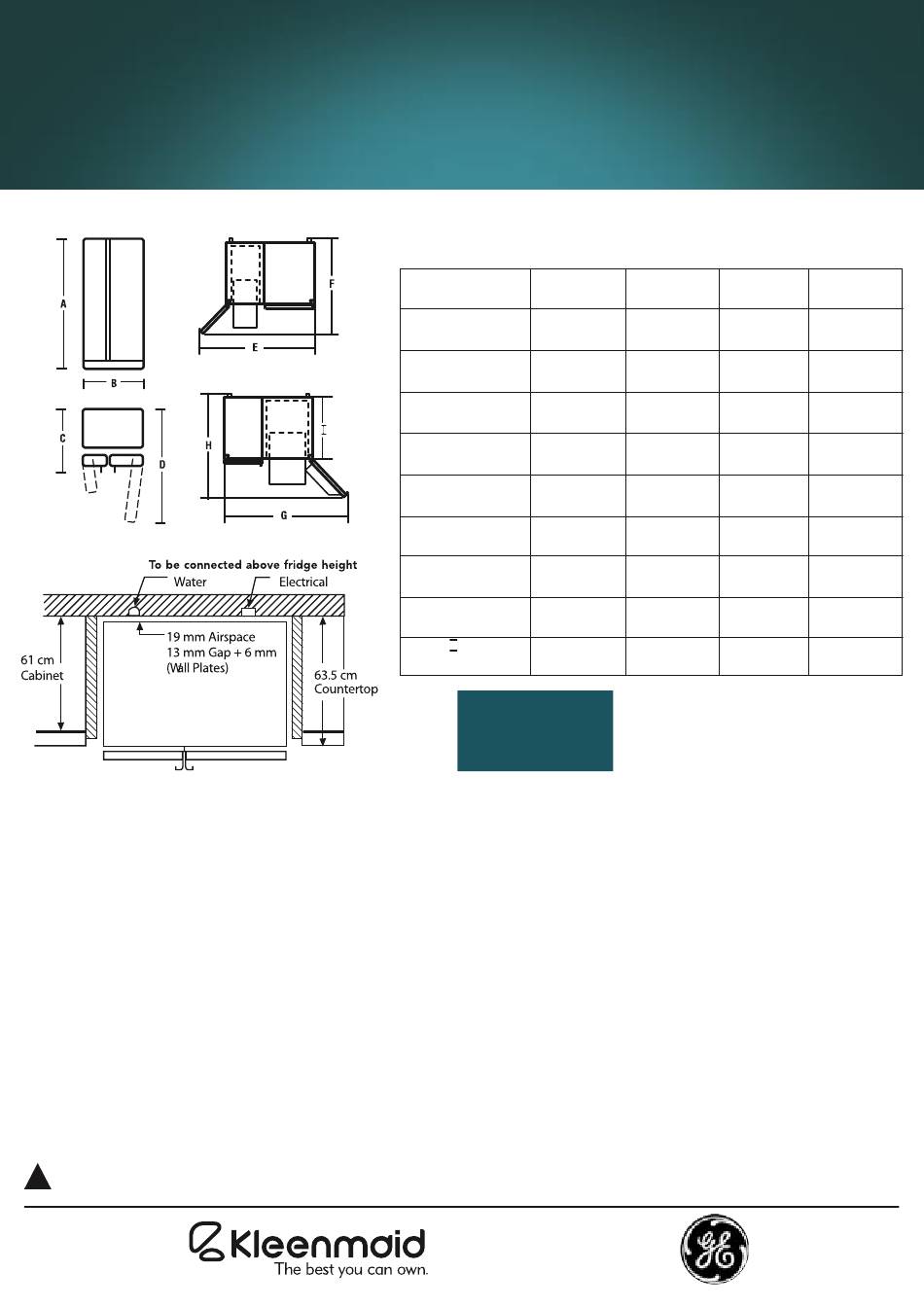

DIMENSIONS
*A
Overall height including
hinge covers
B
Overall width
**C
Depth including door
D
Depth with fridge door
open 90°
E
Width with freezer door
open 45°
F
Depth with freezer door
open
G
Width with fridge door
open 45°
H
Depth with fridge door
open 45°
I
Cabinet depth with
removed
Installing The Water Line
EXCLUSIVE DISTRIBUTOR OF
U0804
General Electric Profile Arctica
PSG29IBS PSG25IBS PCG23IBS
1765 mm
908 mm
912 mm
1262 mm
1273 mm
1051 mm
45°
1386 mm
1140 mm
712 mm
door
**Depth includes standard
* Installation of power and
factory fitted grab handles
water outlets; if located in
fridge cavity, please ensure
*Height includes hinge covers
they are above fridge
..- 32mm
height.
Models 21, 23, 25, 29
1765 mm 1765 mm
908 mm 908 mm
879 mm 738 mm
1272 mm 1158 mm
1247 mm 1232 mm
1099 mm 989 mm
1381 mm 1361 mm
1149 mm 1023 mm
712 mm 612 mm
GCG21IW
PCG21IBS
PIG21IBK
1765 mm
908 mm
738 mm
1158 mm
1214 mm
986 mm
1355 mm
994 mm
612 mm
