Meaco 12L and 20L Low Energy
Dehumidifier/Air Purifier Instruction
Manual
Meaco 12L and 20L Low Energy Dehumidifier/Air Purifier
Please read this instruction manual before using the dehumidifier and keep safe for
future reference.
Thank you for choosing Meaco, we really appreciate it.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 12L Low Energy and is the answer not in the manual?

Questions and answers

Summary of Contents for Meaco 12L Low Energy

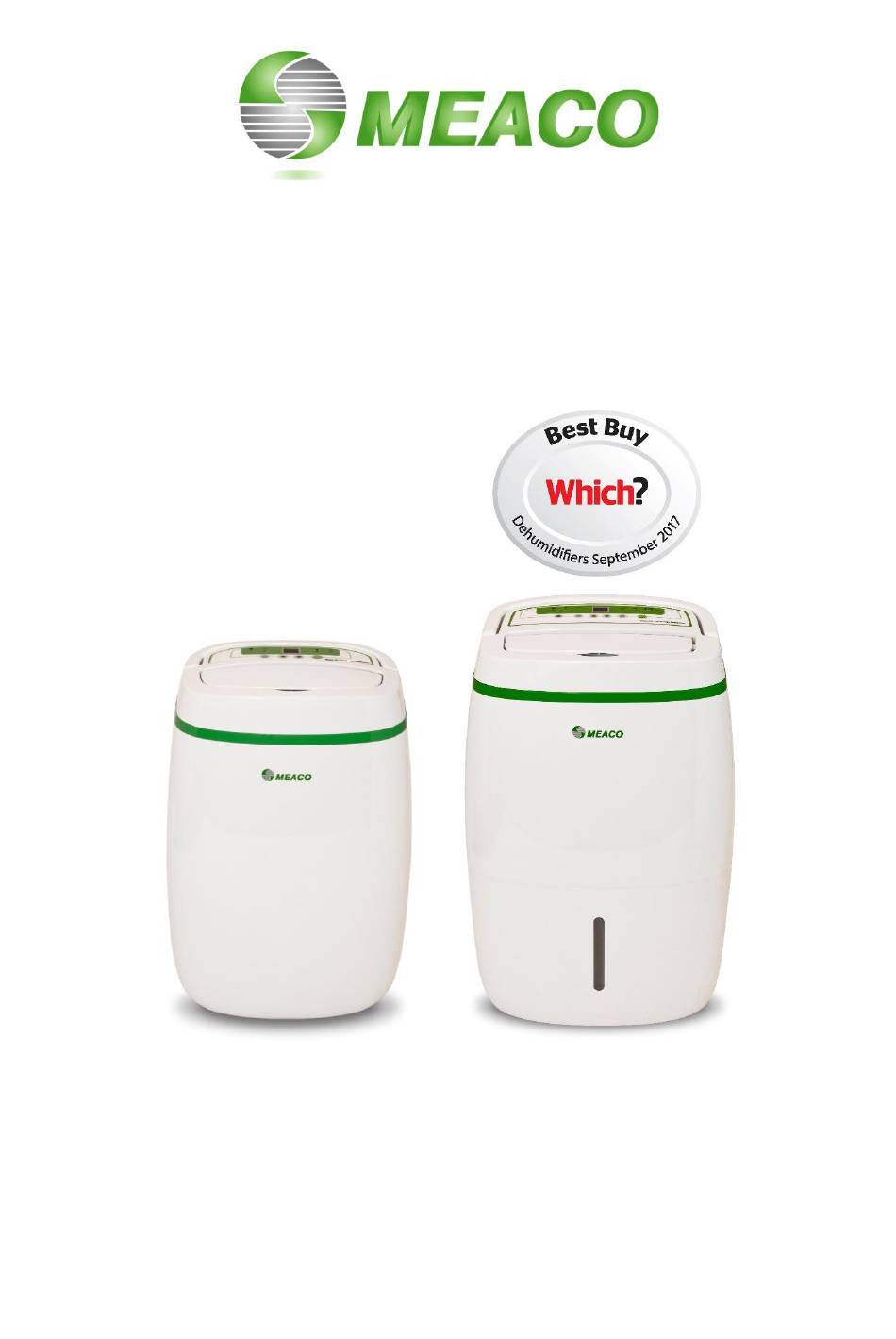

  • Page 1 Meaco 12L and 20L Low Energy Dehumidifier/Air Purifier Instruction Manual Meaco 12L and 20L Low Energy Dehumidifier/Air Purifier Please read this instruction manual before using the dehumidifier and keep safe for future reference. Thank you for choosing Meaco, we really appreciate it.
  • Page 2: Saftey Information

    If these areas become wet for any reason, thoroughly dry them before using the dehumidifier. If in doubt, do not use the dehumidifier and consult a qualified electrician or a Meaco approved engineer. The operator must make the operating instruction available for the user and make sure that the user...
  • Page 3 Do not puncture either during the units working life or after. At the end of life dispose of following local recycling regulations. • If there is any damage to the unit then do not use it and contact Meaco or your retailer. • As with all dehumidifiers, always keep upright and leave the dehumidifier standing upright for 3-4 hours before using it upon receipt.
  • Page 4: Wiring Instructions

    GREEN/YELLOW. Always ensure that the cord grip is positioned and fastened correctly. Only ever use the same fuse as fitted in the original product, if in doubt please contact Meaco first, or a qualified electrician. Example wiring for a Standard British Plug:...
  • Page 5: General Advice

    GENERAL ADVICE ----------------------------------------------------------------------------------------------------------------------------- ---------- • Before putting your dehumidifier into operation for the first time, the instruction manual should be studied carefully. • After receiving the unit, you should check your dehumidifier for any transport damage. In case of damage, you should inform the sender immediately. •...
  • Page 6: Product Identification

    If you would like to use the continuous drainage option on your dehumidifier, you can either purchase a hose from our website (www.meaco.com) or use a garden hose that has an internal diameter of 12mm (12L Low Energy) or 14mm (20L Low Energy).
  • Page 7 Make sure the hose runs downwards, with no kinks, bends or blockages, to allow water to run out of the unit via gravity. 12L LOW ENERGY DEHUMIIDIFIER/AIR PURIFIER In order to use continuous drainage, remove the water tank from the unit. Remove the rubber bung from the water tank and insert it into the spout which drips into the water tank.
  • Page 8 HOW TO EMPTY THE WATER TANK The water tank is found on the front of the unit on the 20L model and at the back of the unit on the 12L model. In order to empty the water tank, simply pull the tank out from the unit and empty the water. The lid does not need to removed as the water can be poured out of the hole at the corner.
  • Page 9: Control Panels

    CONTROL PANELS ----------------------------------------------------------------------------------------------------------------------------- ---------- 12L LOW ENERGY DEHUMIIDIFIER/AIR PURIFIER ON/OFF BUTTON When the dehumidifier is plugged into a wall socket, the dehumidifier will bleep and the display will remain blank. Press the ON/OFF button to turn the dehumidifier on or off.
  • Page 10: Water Tank Full Indicator

    WATER TANK FULL INDICATOR When the water tank is full the dehumidifier will bleep multiple times and then switch off. Once the water tank has been emptied and placed securely back in the dehumidifier, the dehumidifier will start to run again as per its previous settings. CHILD LOCK Press both the UP and DOWN arrows at the same time for three seconds to activate child lock, LC will appear on the display.
  • Page 11: On/Off Button

    20L LOW ENERGY DEHUMIIDIFIER/AIR PURIFIER ON/OFF BUTTON When the dehumidifier is plugged into a wall socket, the dehumidifier will bleep and the display will remain blank. Press the ON/OFF button to turn the dehumidifier on or off. UP AND DOWN ARROWS (use to set target humidity level) The UP and DOWN arrows can be used to select a target relative humidity between 30%rh and 80%rh, CO mode or AP mode.
  • Page 12: Defrost Mode

    DEHUMIDIFICATION LIGHT The LED light under the droplet and snowflake will stay on permanently, even once the dehumidifier has reached its target humidity level. This light will be solid, it will not flash. If the light is flashing, it is in defrost mode. DEFROST MODE This dehumidifier is equipped with an automatic defrosting system.
  • Page 13: Other Functions

    The use of a HEPA filter effects the performance of the dehumidifier as follows: Meaco 12L Low Energy Dehumidifier: 11% less dehumidification and 7% increase in energy consumption. Meaco 20L Low Energy Dehumidifier: 9% less dehumidification and 5% increase in energy consumption.
  • Page 14: Drying Laundry

    MEACO CONTROL LOGIC When the room relative humidity is more than 3%rh below your target relative humidity the dehumidifier will stop drying the air, but the fan will continue to run for a few minutes. If the relative humidity is stable, then the dehumidifier will go to sleep for 30 minutes.
  • Page 15: Maintenance

    3 months). The HEPA filter can be hoovered every so often in order to remove any dust or dirt. Using a HEPA filter is optional. The dehumidifier can be used without the HEPA filter, this means it will just dehumidify the air and not purify it. Replacement HEPA filters can be purchased from www.meaco.com.
  • Page 16 Please see below two images demonstrating how to insert the HEPA filter: REMOVE FRAME REMOVE FILTER INSERT FRAME INSERT FILTER STORAGE ----------------------------------------------------------------------------------------------------------------------------- ---------- If the machine will not be used for a long period of time, take the following steps: 1.
  • Page 17: Specifications

    SPECIFICATIONS --------------------------------------------------------------------------------------------------------------------- ------------------ Meaco 12L Low Energy Meaco 20L Low Energy Dehumidifier Dehumidifier at 30°C and 12 litres per day 20.38 litres per day 80%rh Extraction Rate at 20°C and 4.77 litres per day 8.48 litres per day 60%rh Yes between 30%rh and...
  • Page 18: Troubleshooting

    TROUBLE SHOOTING ----------------------------------------------------------------------------------------------------------------------------- ---------- TROUBLE CAUSE SOLUTION Plug in the unit and check the There is no power to the unit. power outlet. Unit does not operate The ON/OFF button has not been pressed. Press the ON/OFF button. Ambient temperature is lower Under this condition the than +5°C (C2 appears on the dehumidifier becomes...
  • Page 19 Reduce ventilation (e.g. close There is too much ventilation. windows and shut external doors.) The air filter is blocked and the Clean the air filter/replace the reduced air flow is effecting HEPA filter. performance. The windows were clear and The outside air temperature Use the dehumidifier on a now condensation has has dropped and the windows...
  • Page 20 The humidity sensor is broken. E2 Error Code The unit still dehumidifiers but Please contact Meaco. in continuous mode only. If you need to contact Meaco, please use the contact details below. Contact Number: 01483 234900 Contact Email: customerservice@meaco.com service@meaco.com Live Chat: www.meaco.com...
  • Page 21: Warranty And Customer Service

    For the full list of the warranty terms and conditions please visit: www.meaco.com/warranty-terms. To prevent unnecessary expenses, we recommend that you always carefully read the user’s manual first. If this does not provide a solution, please call Meaco and we will be happy to help. This dehumidifier has been imported into...
  • Page 22 This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.
