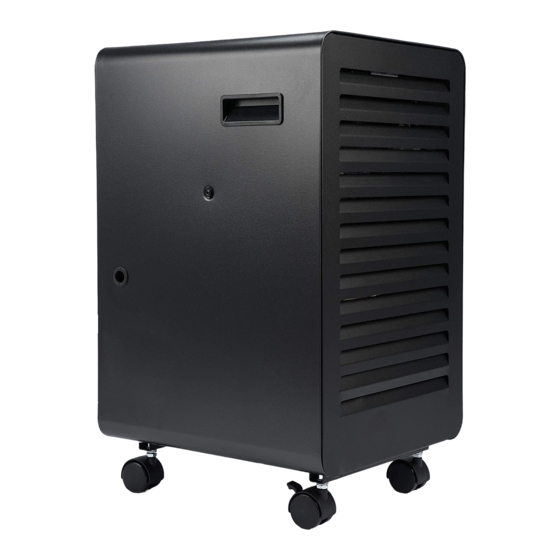

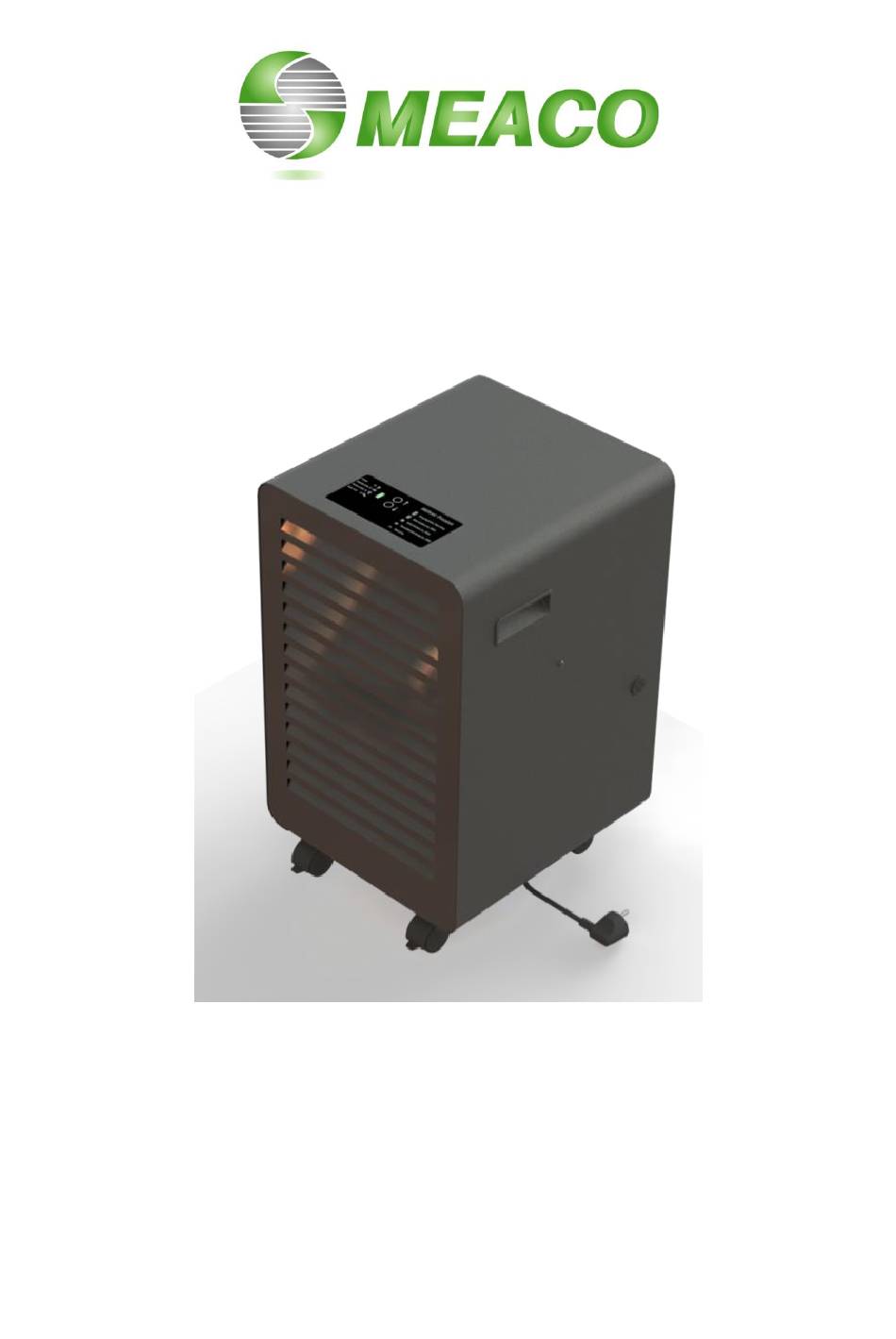

- Page 1 MeacoDry 25Lm Instruction Manual MeacoDry 25Lm Dehumidifier Please read this instruction manual before using the dehumidifier and keep safe for future reference. Thank you for choosing Meaco, we really appreciate it.
-
Page 2: Saftey Information
If these areas become wet for any reason, thoroughly dry them before using the dehumidifier. If in doubt, do not use the dehumidifier and consult a qualified electrician or a Meaco approved engineer. The operator must make the operating instruction available for the user and make sure that the user... - Page 3 • If there is any damage to the unit then do not use it and contact Meaco or your retailer. • As with all dehumidifiers, always keep upright and leave the dehumidifier standing upright for 3-4 hours before using it upon receipt.
-
Page 4: Wiring Instructions
GREEN/YELLOW. Always ensure that the cord grip is positioned and fastened correctly. Only ever use the same fuse as fitted in the original product, if in doubt please contact Meaco first, or a qualified electrician. Example wiring for a Standard British Plug:... -
Page 5: General Advice
GENERAL ADVICE ----------------------------------------------------------------------------------------------------------------------------- ---------- • Before putting your dehumidifier into operation for the first time, the instruction manual should be studied carefully. • After receiving the unit, you should check your dehumidifier for any transport damage. In case of damage, you should inform the sender immediately. •... -
Page 6: Control Panel
ALARM LIGHT The red LED indicates when there is a fault with the machine. If this light shows, please contact Meaco. LED BAR The LED bar will light up red to indicate which mode the dehumidifier has been set to. For example, if the LED bar is showing one red line the unit is currently in ‘Standby Mode’, if... -
Page 7: Humidity Control
HUMIDITY CONTROL 60%rh Setting the unit to reach a target humidity level of 60% means the unit will run until it reaches 60%rh (plus or minus 3%rh). Once the target humidity has been met, the compressor will turn off but the fan will continue to run. -
Page 8: Other Functions
OTHER FUNCTIONS ----------------------------------------------------------------------------------------------------------------------------- ---------- AUTOMATIC DEFROSTING SYSTEM During normal dehumidifying operation, ice may form on the evaporator. This dehumidifier is equipped with an automatic hot-gas defrosting system, if ice is detected by the temperature sensor, it will defrost automatically according to the following principle: •... - Page 9 A pump can also be used to enable continuous drainage. Please note the pump is not included and can be purchased separately via www.meaco.com. The hose required needs an internal diameter of 8mm. For continuous drainage via a pump proceed as follows: Set the unit to Standby Mode and disconnect the mains plug from the socket.
-
Page 10: Electric Diagrams
ELECTRIC DIAGRAMS ----------------------------------------------------------------------------------------------------------------------------- ---------- DEHUMIDIFIER ELECTRIC WIRING PUMP CONNECTION WIRING... -
Page 11: Maintenance
MAINTENANCE ----------------------------------------------------------------------------------------------------------------------------- ---------- Always turn off the power and disconnect the main cable before performing maintenance procedures. INSPECT ELECTRICAL SYSTEM • Inspect the electrical cord for damage at regular intervals. CLEANING THE EXTERIOR • Clean the exterior with a soft, dry cloth. If the device is extremely dirty, use a mild cleaning agent or wipe the dehumidifier with a slightly damp cloth. -
Page 12: Specifications
SPECIFICATIONS ----------------------------------------------------------------------------------------------------------------------------- ---------- ELECTRICAL CONNECTIONS This dehumidifier is designed to operate in a 230V~50Hz electrical installation. Make sure that the electric sockets are connected to earth and that all safety precautions are taken. OPERATING CONDITIONS This dehumidifier can be operated within an ambient temperature range from +5°C to +32°C, and with a relative humidity from 35%rh to 90%rh. -
Page 13: Troubleshooting
Wait three minutes for the turned on. compressor to start up. The compressor is not on The overload protector is Please contact Meaco. defective. The machine is in Standby Turn the machine on by using Mode. the UP and DOWN arrows. - Page 14 The unit does not defrost Defective control assembly. Please contact Meaco. Defective bypass relay valve. Please contact Meaco. If you need to contact Meaco, please use the contact details below. Contact Number: 01483 234900 Contact Email: customerservice@meaco.com service@meaco.com Live Chat:...
-
Page 15: Warranty And Customer Service
To prevent unnecessary expenses, we recommend that you always carefully read the user’s manual first. If this does not provide a solution, please call Meaco and we will be happy to help. This dehumidifier has been imported into... - Page 16 This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.
