Chapter 5 Set Up the UEFI Utility

Access the Set-up Utility

Set-up Screen Overview

44
Follow these steps to access the set-up utility in your computer.
1. Start your computer.
2. During POST, you have two selections to access the set-up utility.
Press
F2
DEL (delete)

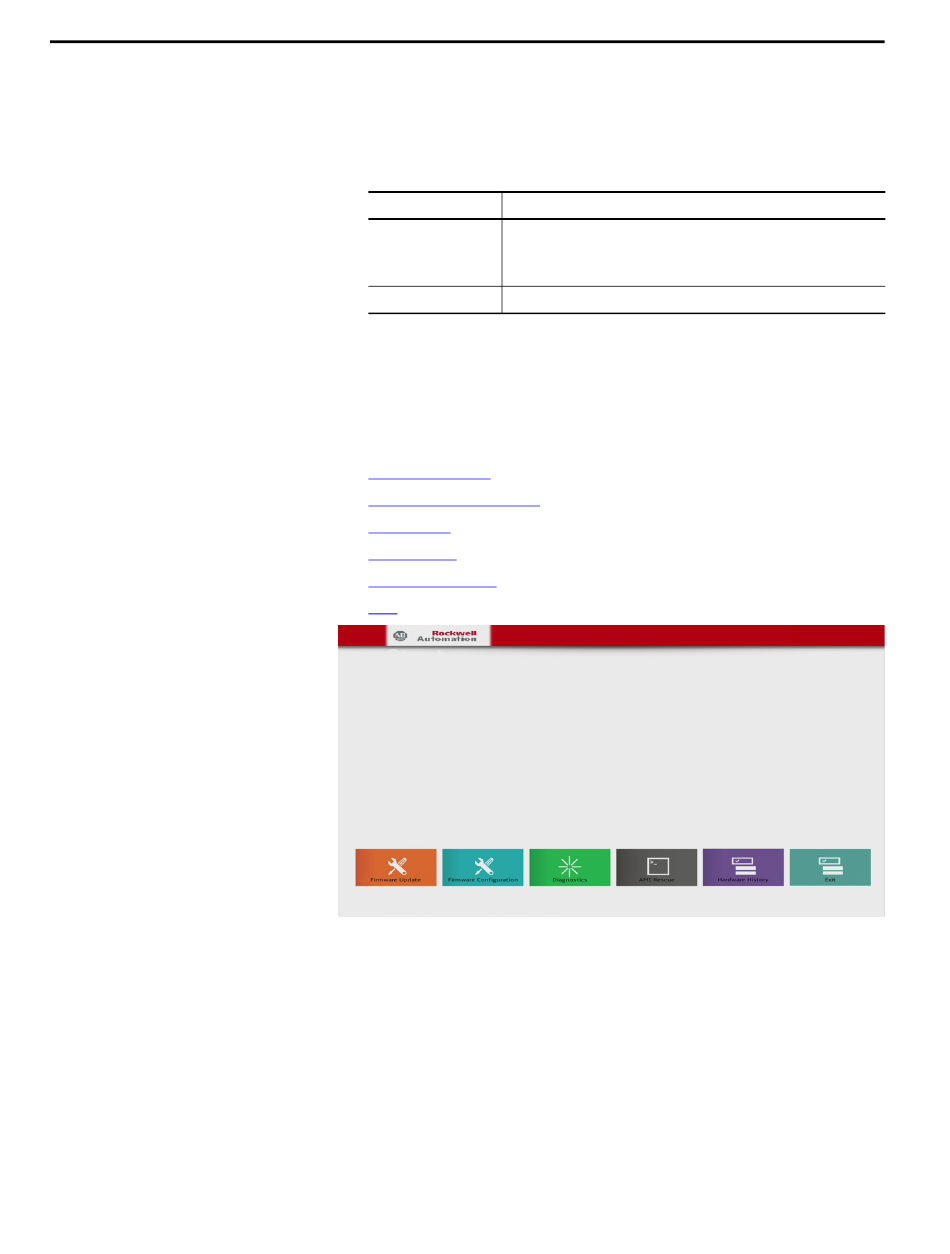

The set-up screen is the main screen for the UEFI graphical interface. On the left
are six menu buttons that are stacked vertically. Each menu button provides
access to information, commands, or configurable options for the following
topics:
• Firmware Update
• Firmware Configuration
• Diagnostics
• AMI Rescue
• Hardware History
• Exit
TIP The UEFI graphical interface can be driven with either the integrated touch
screen or a keyboard and mouse.
Rockwell Automation Publication 6181X-UM002B-EN-P - November 2019
Result
Accesses a graphical interface of set-up environment.
IMPORTANT: Screen captures in this chapter are from the UEFI graphical
interface.
Accesses a text mode set-up environment.
