Police Force PF1500B Instruction Manual

Batteries

1. Charge the batteries completely before inserting them into the unit. Insert the 18650 batteries (7) into the charger
following the polarity diagram (+ - symbols) on the charger and the end of the batteries. Plug the charger into a
standard wall outlet. A red light at the bottom of the charger will flash while charging and remain green when
batteries are fully charged.
2. To insert the charged batteries into the PF1500B turn the End Cap Dial (6) counterclockwise to open the battery
compartment. Insert the batteries following the polarity diagram shown on the batteries and front and rear of the
battery compartment. Replace the battery compartment cover and secure by turning the End Cap Dial clockwise.
3. If the flashlight is not as bright or if the electrical current becomes noticeably weaker when testing the stun gun,
the batteries will need to be recharged.

Using the Flashlight

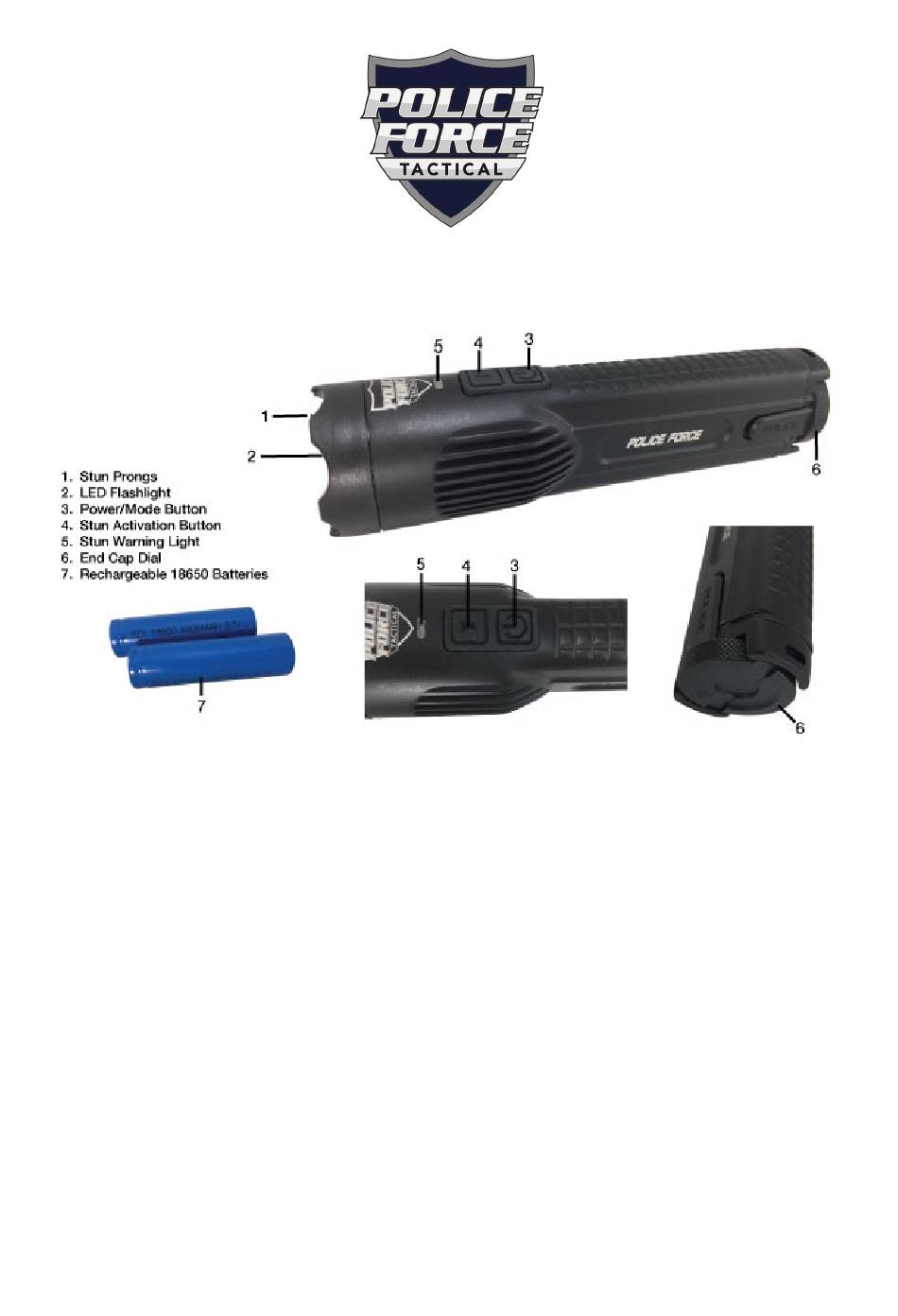

Note: The Power/Mode Button (3) is used to select the light mode or to enable the Stun Activation Button (4).
1. Press the Power/Mode Button to turn light on Hi setting.
2. Press it again to change to Lo setting.
3. Pressing the Power/Mode Button a third time activates the Strobe setting.
4. Press the Power/Mode Button a fourth time to remove the safety and activate the Stun Activation Button. The
RED Stun Warning Light (5) above the Stun Activation Button will illuminate, indicating the PF1500B is now in
stun mode.
5. Press the Power/Mode Button once more to turn the unit off.
PF1500B Instruction Manual
Revised 06-02-2017
