2SHUDWLQJ ,QVWUXFWLRQV IRU +RW 0HOW $SSOLFDWRU
3$0 3RZHUOLQH ([WUXVLRQ 3$0 3RZHUOLQH 6SUD\
Read these instructions carefully before putting into service! Keep them for future use!
Adherence to these operating and safety instructions and all statutory regulations is the responsibility
of the operator
Advertisement
Table of Contents
Related Manuals for Buhnen PAM Powerline H206600
Summary of Contents for Buhnen PAM Powerline H206600

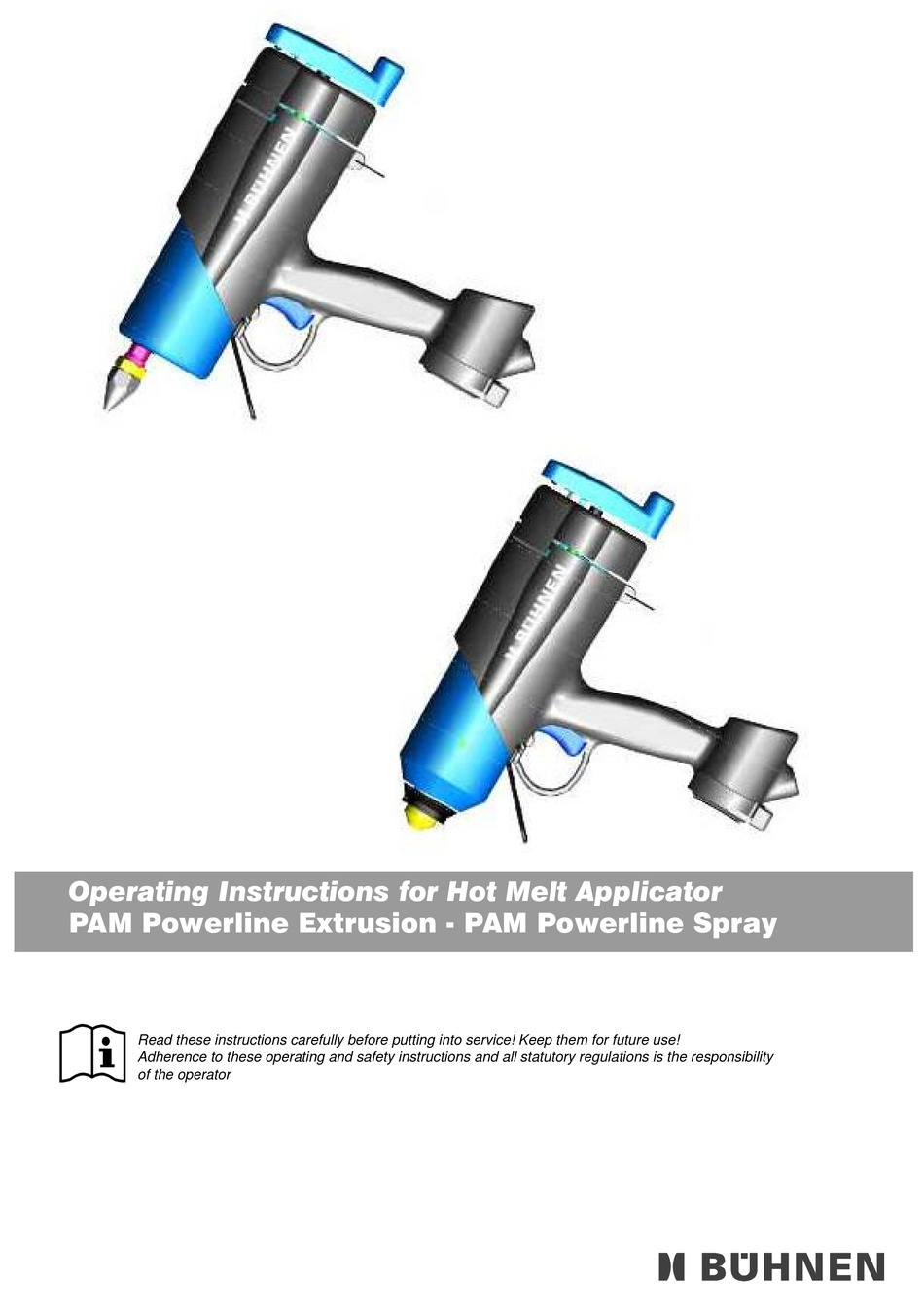

- Page 1 2SHUDWLQJ ,QVWUXFWLRQV IRU +RW 0HOW $SSOLFDWRU 3$0 3RZHUOLQH ([WUXVLRQ 3$0 3RZHUOLQH 6SUD\ Read these instructions carefully before putting into service! Keep them for future use! Adherence to these operating and safety instructions and all statutory regulations is the responsibility of the operator...
-
Page 2: Table Of Contents
&RQWHQWV Arrangement ..................... . 3 1.Specifications . -
Page 3: Arrangement
$UUDQJHPHQW $SSOLFDWRU 3RZHU/LQH 6SUD\ 3RZHU/LQH ([WUXVLRQ Description Description Compressed air connection Lever Water separator Closure cap Pressure gauge Suspension point Pressure regulator Protection cap Digital display Spray air choke Start/Stop-button Protection cap Set-button Trigger Down-button Handle Up-button Stand hoop... -
Page 4: Specifications
6SHFLILFDWLRQV 1. Specifications PowerLine Extrusion PowerLine Spray Description Part no. H206600 H206700 Scope of supply Applicator, tool set, working bracket/workstation (optional) Weight of applicator approx. 3.09 lbs 1.40 kg approx. 3.74 lbs / 1.70 kg Power requirements 120 V AC / 60 Hz Power input 600 watts Current input... -
Page 5: Safety
6DIHW\ 2SHUDWLRQ VHWWLQJV 2. Safety Warning! The applicator is used to heat hot melt adhesive and apply it under pressure. If the instructions and information contained in this operating manual are not observed, or the applicator is used for a purpose other than that for which it was intended, or the applicator is modified and/or used by insufficiently trained personnel, there will be a risk of injury. -
Page 6: Connecting
2SHUDWLRQ VHWWLQJV 3.2 Connecting The pressure of the compressed air supply must never exceed 145 psi. The compressed air must be free of moisture and acid. If necessary, fit a pressure reducing valve with inline safety valve (reaction pressure 145 psi) and add suitable filters to the supply line. 3.2.1 with appliance bracket/stand Connect the compressed air hose to the compressed air connection (1) with a quick-action release connector (6 mm). -
Page 7: Status Report And Malfunction Display
2SHUDWLRQ VHWWLQJV 2SHUDWLRQ P2 Waiting time until reduction The temperature controller switches automatically to operation with value reduction, if the hot melt applicator is not in use for the time adjusted here. P19 Button locking Button locking allows the blocking of operating buttons. When locked,alteration of factory adjustment by buttons is impossible. When trying to do so, the report “—-“... -
Page 8: Applying And Metering Hot Melt Adhesive
2SHUDWLRQ 4.4 Automatic temperature reduction system ACE (AntiCharElectronic) To protect the hot melt adhesive from unnecessarily high temperature the operating temperature is automatically reduced by 104°F / 40 °C to a stand-by level if the applicator is not used for approx. 30 minutes. The right decimal dot of the digital display (5) flashes. -
Page 9: Maintenance Intervals
7URXEOHVKRRWLQJ 5.1 Maintenance intervals Empty the water separator (2) on the air maintenance unit Daily Check the applicator for leaks, damage, missing parts and loose screws Remove any residue of hot melt adhesive and other dirt Weekly 5.2 Cleaning Never use strong detergents or ones containing solvents. They may damage components of the applicator. We advise, to use petro- leum for the cleaning of the housing. -
Page 10: Changing The Nozzle Foot (Powerline Extrusion)
0DLQWHQDQFH 6HUYLFLQJ 5.3.2 Changing the nozzle foot (PowerLine Extrusion - only heated up - Fig 1) Tools required: 2 size 19 open-ended spanner, 1 spring-ring pliers Remove the cartridge. Remove the circlip (A1). Remove the nozzle kit (part A2 to A7) out of the applicator. Unscrew the conical nozzle (A2) (see Chapter 5.3.1). -
Page 11: Changing The Cover Seal
0DLQWHQDQFH 6HUYLFLQJ 5HSDLUV Tools required: 1 size 20 open-ended spanner, 1 size 3 allen key, 1 size 2.5 allen key, 1 four-way wheel brace size 2 Turn the lever (5) to open position. Remove the countersunk screw (6) from the lever. Remove lever (5). - Page 12 PAM Fastening Technology, Inc. Division of BÜHNEN Charlotte, N. C. USA Telefon (704) 394 31 41 Telefax (704) 394 93 39 www.pamfast.com sales@pamfast.com...
