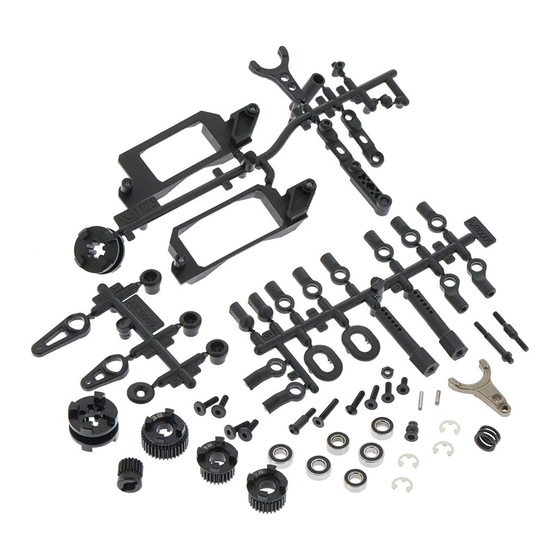

Yeti™ 2-Speed Hi/Lo Transmission Components
Center driveline and rear driveshaft removal is required. See vehicle manual for proper removal
1
*AXA146
*AX31104
1

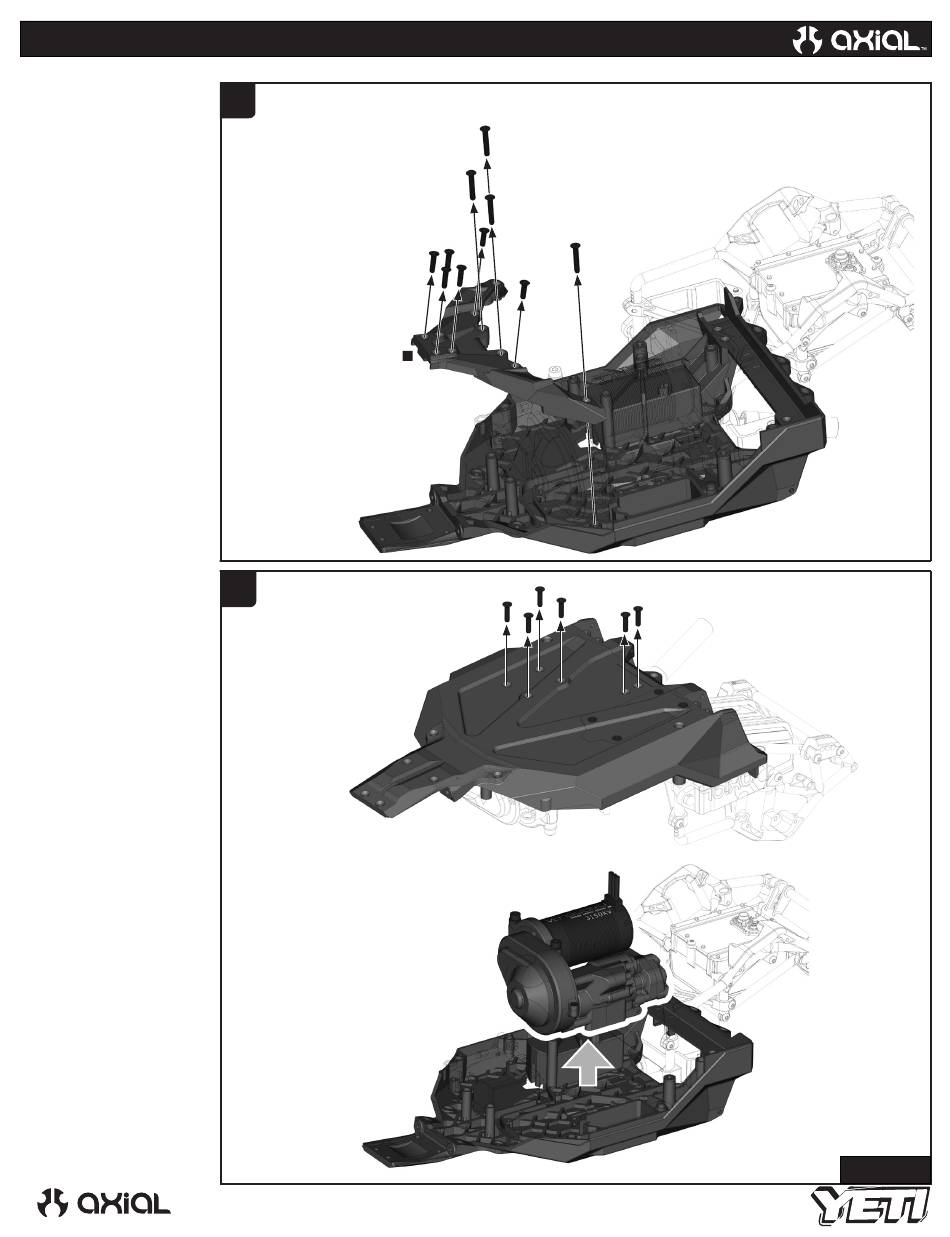

Removing parts
*
2
Removing parts
*
*AXA148
*AXA148
*AXA148
*AXA146
*AXA148
*AXA146
*AXA146
*AXA146
*AXA146
1
AX31181-i001
