Summary of Contents for Axial AX90031

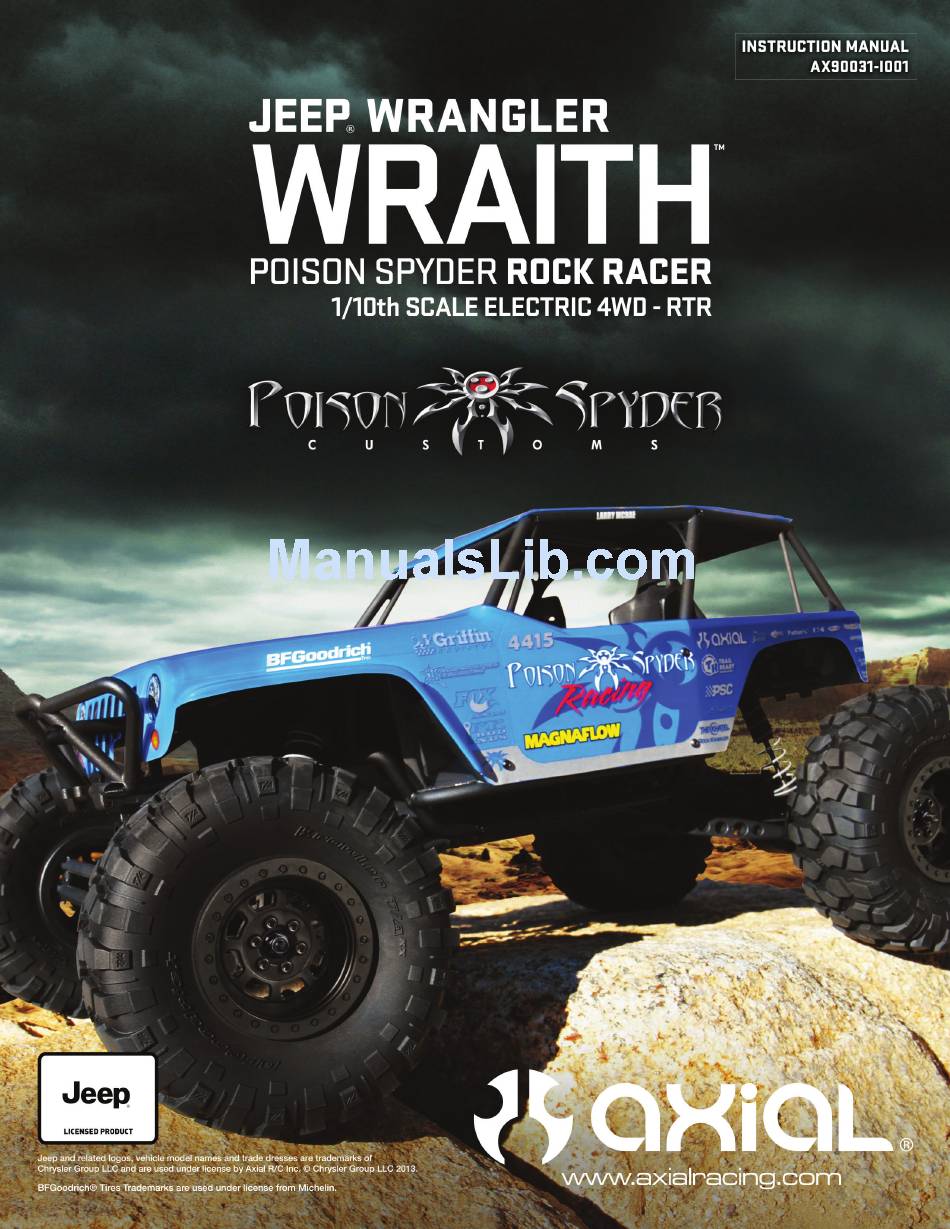

- Page 1 COVER...
- Page 4 Make sure charger is correct for battery type selected for use. Examples: Do NOT charge Lipo batteries with Nickel Metal Hydride charger. Do NOT charge Nickel Cadmium batteries Lipo charger. Stellen Sie sicher, Ladegerät ist korrekt für Batterietyp zur Verwendung ausgewählt. Beispiele: Laden Sie keine Lipo-Akkus mit Nickel-Metall-Hydrid-Ladegerät.
- Page 5 Top View Parts Steering Servo Steering Steering Knuckle C-Hub Receiver Box Lower 4-link Bar Spur/Pinion/Slipper (Under Cover) Transmission Motor 35T Driveshaft Upper 4-link Bar Battery Tray Shock Absorber Differential (inside axle housing)
- Page 6 Getting-Started Checklist The following checklist is a guide for getting you vehicle running for the first time. Read ‘Cautions’ in Manual. (Page 2) Familiarize yourself with vehicle and Even though the vehicle is new check its components. driveshaft setscrews and other screws to make sure they are tight from the factory.
- Page 7 Range-Checking Your Radio System The radio system should be checked before operating the vehicle to ensure it’s operating properly and has adequate range. 1. Turn on the transmitter first and then the vehicle. 2. Have a friend hold the vehicle while keeping hands and loose clothing away from moving parts. 3.
- Page 8 AE-5 Forward/Reverse ESC w/ Drag Brake Mount the ESC in an area that is well ventilated and isolated from vibration and shock. Connect the ESC motor wires to the motor red-red & black-black. Plug the receiver with into the throttle channel on the receiver. The black negative wire should be towards the outside of the receiver.
- Page 9 Final Drive Gear Ratio = (Spur/Pinion)x5.67 Gesamtubersetzung = (Spur/Pinion)x5.67 32 Pitch 38T/13T (Stock Gearing AX30392 or HD AX30395) Spur Gear 39.64:1 Pinion 28.85 30.91 32.97 35.03 26.44 28.33 30.22 32.11 24.41 26.15 27.90 29.64 16.42:1 22.67 24.88 25.90 27.52 21.15 22.67 24.18 25.69...
- Page 10 NOTES...
- Page 11 AXIAL LIMITED WARRANTY Your Axial product is warranted to be free of defects in materials and workmanship when new in the factory sealed box. This warranty does not cover damages due to normal wear and tear, users' failure to perform routine maintenance, error of assembly or installation, modifications or addition of aftermarket parts or option parts. This warranty lasts as long as the original purchaser owns the product and is not transferable (verified by dated itemized sales receipt accompanied with product).
- Page 12 AX80061 AX80018 AX80078 Steering Knuckles Plastic Set Hardware Parts Tree Transmission Gear Cover AX80069 AX80072 AX80070 Axial Di Cover AX80062 XR10 C Hub Carrier Set AX31065 Spur Gear 32P 64T AX80071 Straight Axle Adapter Rear AX80036 72-103mm Shock Body AX80051...
- Page 13 AX80074-001 AX80074-002 AX80074 Rcok Buggy Main Frame Rcok Buggy Main Frame Rock Buggy Main Frame AX80073 AX80089 AX80076 Rock Buggy Front End 2 Rock Buggy Rear Brace Set AX80075 AX80077-001 AX80076 Wraith Tube Frame TOP Rcok Buggy Front end 1 Rock Buggy Battery Brace...
- Page 14 AX30162 Pin 1.5x8mm AXA1393 E2.5 e-clip AX30163 AX30368 Pin 2x10mm Axle 6x39mm AX30413 AX30166 Slipper spring Pin 1.5x11mm AX0175 AX30392 Screw Shaft M3x20mm 38T Bevel Gear AX30112 AX30435 Shock Diaphragm 13x4.5mm Steel Outdrive Shaft AXA0286 AX31059 Slipper Plate M4x12mm AX31148 AX30113 WB8-HD Joint Male Universal Rubber Bump Stop 3.6x7x4...
- Page 15 AXA1040 AXA180 AXA0422 M3 Thin Hex Nut M3x3mm M2.6x6mm AXA1041 AXA291 AXA433 M2.5 Nylon Lock Nut M4x4mm M3x6mm AXA1052 AXA0187 AXA434 M3 Thin Nylon Locking Hex Nut Set Screw M3x20mm M3x8mm AXA1053 AXA013 M3 Nylon Locking Hex Nut AXA435 M2x6mm M3x10mm AXA1046 AXA015...
- Page 21 M2x10mm Cap Head (Black) (10pcs) AX24206 2.4GHz Radio System (2 Channel) (AX-3, AR-3) AXA0187 M3x20mm Set Screw (Black) (10pcs) AX24259 Axial AE-2 Forward/Reverse ESC w/Drag Brake AXA0286 Screw Shaft M4x2.5x12mm (6pcs) AX30031 Antenna AXA0412 M2.6x6mm Hex Socket Tapping Flat Head (Black) (10pcs)
- Page 22 Simple LED Controler w/LED lights (4 white and 2 red) AX30031 Antenna AX30092 Axial 72-103mm Shock Set - 10mm Piston (2pcs) AX30218 Spring 14x70mm 2.07 lbs/in - Super Soft (Red) (2pcs) AX30219 Spring 14x70mm 2.47 lbs/in - Soft (White) (2pcs) AX30220 Spring 14x70mm 2.85 lbs/in - Medium (Green) (2pcs)
- Page 23 NOTES...
