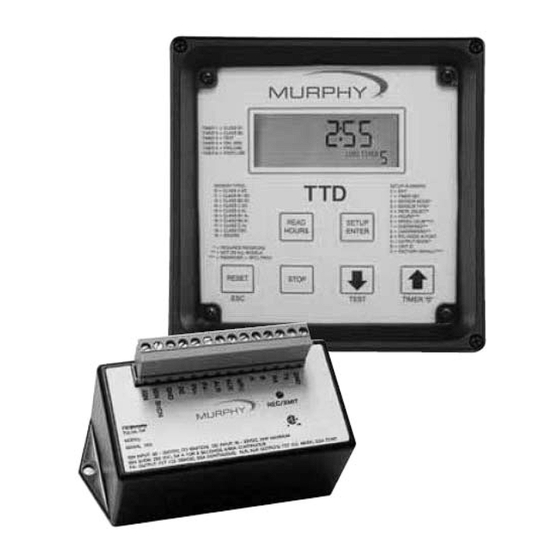

Murphy Selectronic TTD Series Installation And Operation Manual

Fault annunciator
Hide thumbs
Table of Contents

Advertisement

Quick Links

To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com
®

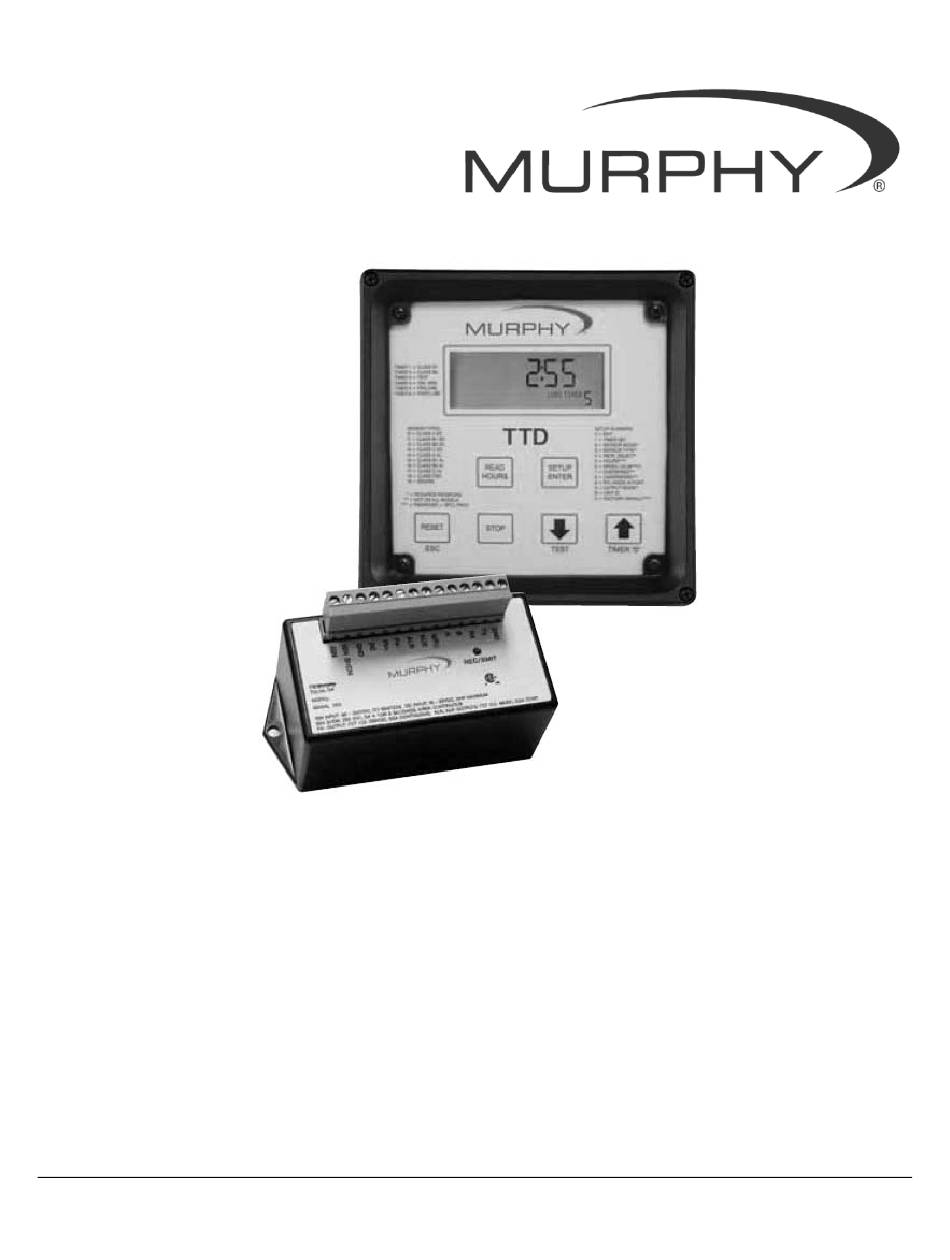

TTD™ Series Selectronic
Fault Annunciator
Installation and Operations Manual
00-02-0329
01-09-07
Section 50

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Selectronic TTD Series and is the answer not in the manual?

Questions and answers

Related Manuals for Murphy Selectronic TTD Series

Summary of Contents for Murphy Selectronic TTD Series

  • Page 1 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com ® TTD™ Series Selectronic Fault Annunciator Installation and Operations Manual 00-02-0329 01-09-07 Section 50...
  • Page 2 The latest version of this manual can be found at www.fwmurphy.com. Warranty A limited warranty on materials and workmanship for one year is given with this FW Murphy product. A copy of the warranty may be viewed or printed by going to www.fwmurphy.com/support/warranty.htm FW MURPHY has made efforts to ensure the reliability of the TTD System and to recommend safe usage practices in system applications.

  • Page 3: Table Of Contents

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Table of Contents Product Description........................ 1 Display Head (TTD-H)....................1 Power and Control Inputs/Outputs (PSU-2) ..............2 Installation ..........................3 Installation Diagram for the TTD Display..............3 Typical Installations for TTD Power and Control Inputs/Outputs ........5 TTD G-Lead Choke Installation Instruction ..............8 Backup Battery Replacement..................9 Product Features........................
  • Page 4 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Voltage Readings.......................40 Software Version......................41 Special Features (Password Code)................41 Communications........................42 Communications Port ....................42 Modbus Register Address Listings................43 Specifications........................46 Power Requirements:....................46 Magnetic Pickup Input: ....................46 Outputs:........................46 Operator Interface: .....................46 Communication Ports: 1 .....................46 Third Party Approvals Pending:..................46 Intuitive Display Icons: ....................47 TTD Numbering System .......................

  • Page 5: Product Description

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Product Description The TTD™ Annunciator System is comprised of two separate components, the Display Head unit and Control Inputs/Outputs mounted on a Plug-in Power Supply. The TTD product is a solid-state fault annunciator and shutdown control system designed to protect engines, compressors and their associated equipment.

  • Page 6: Power And Control Inputs/Outputs (Psu-2)

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Power and Control Inputs/Outputs (PSU-2) The Power Input and Control Output Terminals are mounted on the Plug-in Power Supply (PSU-2) and include an RS485/RS232 serial communication port (Modbus RTU slave) to interface with micro-controllers, PC’S, PLC’s, and/or communication and control systems.

  • Page 7: Installation

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Installation Installation Diagram for the TTD Display Section 50 00-02-0329 01-09-07 - 3 -...
  • Page 8 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Section 50 00-02-0329 01-09-07 - 4 -...

  • Page 9: Typical Installations For Ttd Power And Control Inputs/Outputs

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Typical Installations for TTD Power and Control Inputs/Outputs Section 50 00-02-0329 01-09-07 - 5 -...
  • Page 10 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Section 50 00-02-0329 01-09-07 - 6 -...
  • Page 11 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Section 50 00-02-0329 01-09-07 - 7 -...

  • Page 12: Ttd G-Lead Choke Installation Instruction

    TTD annunciator to avoid potential electrical noise problems. This choke has been specifically selected for the application. The choke (Murphy part number 50000774) is shipped with each TTD annunciator. 1. Open the choke and lay it on the table.

  • Page 13: Backup Battery Replacement

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Backup Battery Replacement WARNING! Before disconnecting or connecting equipment, switch the power OFF and, if possible, lock it out. Assure the area is in a non-hazardous condition before beginning the installation of any new equipment or repairing existing equipment.
  • Page 14 DL223A or Sanyo CRP2 lithium battery, ® ® available from Murphy (p/n 00005125). 5. Plug the Power Supply back onto the Display Module and secure the two mounting screws. 6. Power up the system and resume normal operations. Section 50...

  • Page 15: Product Features

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Product Features Section 50 00-02-0329 01-09-07 - 11 -...

  • Page 16: The Display

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com The Display The TTD annunciator features a static LCD display (A) with backlight (external DC is required). The operating temperature is between -40° to 85°C. The applicable icon and number (B, C and D) will be displayed to clarify the display readings or alert the operator to an operating condition.

  • Page 17: Front Panel Key Functionality

    The operator can interface with the TTD Annunciator in one of two ways. One is via the Front Panel keypad. The second way an operator can interface is with the Murphy MConfig software. This provides the user with a Template displaying the TTD Annunciator setup and status by reading the Modbus registers.
  • Page 18 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Shutdown Mode SHUTDOWN indicates the TTD identified a fault condition and alerts the operator with cause of shutdown code. The current condition on the display indicates the SHUTDOWN icon is on. Function (B) Shows the operation hours for the displayed History record*.
  • Page 19 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Run Mode The condition on the display indicates the RUN and RPM icons are shown and the ALARM icon may be on. Function (G) Shows the current operation hours. RUN icon indicates the Read Hours hour meter is in increment mode.
  • Page 20 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Setup Mode – Menus The condition on the display indicates the RUN and SHUTDOWN icons may be on. Function If the unit is in SETUP 0, pressing [ENTER] exits the unit from the Setup/Enter Setup Mode.

  • Page 21: Operational Display Messages

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Operational Display Messages Several messages display during the start-up and run sequence. This tutorial shows the screens that will display as the system starts. With the unit in shutdown state and ready to start, press the [RESET] key.
  • Page 22 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com When the Post-Lube time counts down, the Fault Channel numeric display moves to the right. The HISTORY icon is visible and the current shutdown is indicated in the lower right hand corner by 01. This is the only time History records are available from the Front panel.

  • Page 23: Backlight Used As Status Indication

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Fault Codes Fault Codes Description 1-48 Indicates the input that has faulted or alarmed Loss of Ignition (When the CD ignition falls below 90 VDC± 10%, the firmware activates the fault) Overspeed Underspeed Manual Stop...

  • Page 24: Configuration / Setup Of The Ttd Annunciator

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Configuration / Setup of the TTD Annunciator Navigating the TTD Front Panel The TTD Annunciator can be setup by using the Front Panel. The Setup Mode can be entered from either RUN or SHUTDOWN. However, settings can only be changed when the SETUP icon is blinking.

  • Page 25: Entering Setup Mode

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Entering Setup Mode To enter the Setup Mode, press the [SETUP/ENTER] key and hold until the display shows HOLD. Continue to press the [SETUP/ENTER] key until the model number is displayed. The HOLD display counts down for 6 seconds, shows the model number for 3 seconds and then shows SETUP 0 to indicate the unit is in Setup Mode.
  • Page 26 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Password Protected Settings Some settings are password protected. If a password is required to change a setting, CODE 00 displays indicating a numeric password should be entered (M). If an incorrect password is entered, ERROR (N) displays for a few seconds, and then the CODE 00 (M) notation returns to the display.

  • Page 27: Setup 1 - Timer Setup

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Setup 1 – Timer Setup This manual explains Setup values in order starting with SETUP 1. However, once the SETUP icon is blinking, the [UP ARROW] or [DOWN ARROW] keys can be used to increment to any Setup option.
  • Page 28 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com The active timer is indicated by the TIMER icon (A), timer number (B), and numeric display (C). Timer Timer Class Timer Range Timer 1 Class B1 0 to 5 minutes Timer 2 Class B2 0 to 10 minutes Test...

  • Page 29: Setup 2 - Sensor Mode

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Setup 2 – Sensor Mode (D) SETUP 2 is a feature that offers choices for predetermined configurations of sensor class to input channel. These choices can emulate an existing annunciator being replaced or configure a new installation by using the closest template.
  • Page 30 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com After selecting and saving a template, any point can be reconfigured by changing a single channel in SETUP 3. To do this, return to SETUP 2 and enter "0" as the template setting (G).
  • Page 31 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com TTD Terminal Block Configuration NO/NC for DD-20 TTD Terminal Block Configuration NO/NC for DD-40 Section 50 00-02-0329 01-09-07 - 27 -...

  • Page 32: Setup 3 - Sensor Type

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Setup 3 – Sensor Type Unit must be in Shutdown Mode to edit. Individual sensor inputs can be changed in SETUP 3 (A). As shown in the Sensor Types table, any channel can be set to one of the 11 available configurations. SETUP 2 must be set to “0”...
  • Page 33 The timer is reset only after shutdown or normal stop. Up to 48 dry contact sensor inputs or Murphy device transistor outputs can be connected to the TTD via a terminal block with 48 pair, screw type, each with a jumper for N.O. (Normally Open) or N.C.

  • Page 34: Setup 4 - Remote Reset Remote Lockout Select And No-Flow Enable Delay

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Setup 4 – Remote Reset Remote Lockout Select and No-Flow Enable Delay Press the [ENTER] key to read SETUP 4A, press a second time to read SETUP 4b. (D) Use SETUP 4A to set the Remote Reset/Remote Lockout configuration of pre-selected channels 45 and (E) Remote Reset and Lockout is enabled by this setup and will override any template setting.
  • Page 35 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com No-Flow Switch Transition Time Use SETUP 4b thru 4E to set No-Flow switch transition times. Digital input channels 41 to 44 can be configured for detecting a transition of the switches on a divider block of a compressor system.

  • Page 36: Setup 5 - Hourmeters

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Setup 5 - Hourmeters (K) This setup is for reading and/or resetting the hourmeter. There are two separate hourmeters: • Hourmeter 5A can be reset. • Hourmeter 5B is the TTD internal hourmeter and keeps track of total RUN HOURS.

  • Page 37: Setup 6 - Speed Calibration

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Setup 6 – Speed Calibration The optional Tachometer functionality is configured in SETUP 6 (N). Pulses per Revolution is calibrated as follows. • Press [SETUP/ENTER] to reach SETUP 6A (O). • Pressing [SETUP/ENTER] a second time increments the display to 6B.

  • Page 38: Setup 7 - Tachometer Overspeed Option

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com SETUP 6B (Q) is the RPM Filter Enable and Loss of Ignition selection and setting. Use the [UP ARROW] or [DOWN ARROW] keys to select a value. Choose a setting from the Loss of Ignition Shutdown and RPM Filter Table to choose a monitoring combination.

  • Page 39: Setup 8 - Tachometer Underspeed Option

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Setup 8 – Tachometer Underspeed Option Fault Code 51. (See “Fault Code” table on page 19.) © Use SETUP 8 to adjust the Underspeed Setting. The range is 0 to 5000 rpm. (D) Press [ENTER] to view the Underspeed setting.

  • Page 40: Setup 9 - Communication Settings

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Setup 9 – Communication Settings (E) Use SETUP 9 to select ports, characteristics, and communication values for remote devices. Use the [UP ARROW] and/or [DOWN ARROW] to reach setting. (F) This is the RTU (Remote Terminal Unit) setting. The range is 1 to 99 (Node number).

  • Page 41: Setup A - Output Mode

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Setup A – Output Mode Upon Shutdown, the FV- (Fuel Valve minus) and the IGN SHDN (Ignition Shutdown) terminals change state and either conduct-to-ground or open-to-ground. The change of state depends on the configuration of SETUP There are four choices, terminals are shown in shutdown state: Setting...

  • Page 42: Setup B - Unit Identification (Id)

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Setup B – Unit Identification (ID) (L) This function enables the operator to assign a six- digit numerical unit number. Use the [UP ARROW] arrow key to increment to the SETUP B option. (M) Press [SETUP/ENTER] to access the Prefix screen and the [UP ARROW] or [DOWN ARROW] keys to set the Prefix ID.

  • Page 43: Setup C - Factory Default

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Setup C – Factory Default (A) This option returns all settings except the Product Life Time register back to the default Factory settings. Use these instructions to return the TTD unit to the original factory defaults: 1.

  • Page 44: Voltage Readings

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Voltage Readings (E) The internal backup battery, external DC, and ignition voltage readings are available in the VOLT menu after SETUP C. These readings are updated approximately every 4 seconds and are read-only. Press the [ENTER] key to view each of the readings: •...

  • Page 45: Software Version

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Software Version The Version menu (I) offers a quick and easy way to check the firmware versions in the TTD components. To verify the current firmware, press [ENTER] to access the Version SETUP H or SETUP P. Press [ENTER] the first time to view SETUP H.

  • Page 46: Communications

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Communications Communications Port A single bi-color (GREEN/RED) LED will be provided to give visual indication of active transmit and receive traffic. Only one connection will be active at any time. Interface: Factory configured for RS485; field-selectable for RS232 or RS485. Baud/Configuration: 9600, 19.2K, 38.4K(*);N,8,1;N,8,2 (setup configuration is in SETUP 9) Protocol: Modbus (Slave) Connection: There will be 2 screw terminal connectors for RS485.

  • Page 47: Modbus Register Address Listings

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Modbus Register Address Listings Section 50 00-02-0329 01-09-07 - 43 -...
  • Page 48 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Section 50 00-02-0329 01-09-07 - 44 -...
  • Page 49 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Section 50 00-02-0329 01-09-07 - 45 -...

  • Page 50: Specifications

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Specifications Power Requirements: PSU-2: 10-32VDC, 10W (max); 90-400VDC CD Ignition, 750uA @ 100VDC (max) On-Board Backup Power: Lithium battery, 6 VDC, 1300 mAh. • Digital Inputs: 48 (a.k.a. Channels) Sensor Types: Discrete Input, N.O./N.C., intrinsically safe or nonincendive Magnetic Pickup Input: One Magnetic Pickup Sensor Input: 3.6 - 120 VAC, 2-10 kHz.

  • Page 51: Intuitive Display Icons

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Intuitive Display Icons: Display status and assist in setup and operation resulting in greater ease of operation and interface. The appropriate icon will turn on to indicate unit status or navigation through the setup features. RUN - Run mode RPM –...

  • Page 52: Ttd Numbering System

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com TTD Numbering System TTD Replacement Parts and Assemblies Section 50 00-02-0329 01-09-07 - 48 -...

  • Page 53: Dimensions

    To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Dimensions WARNING! Perform the mounting operation with power source off. The TTD head was designed to be mounted within a weatherproof enclosure. It is intended for mounting in a flat panel. A square mounting hole of 5-1/2 in.
  • Page 54 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com Section 50 00-02-0329 01-09-07 - 50 -...
  • Page 55 Industries, Inc. This document, including textual matter and illustrations, is copyright protected by Murphy Industries, Inc., with all rights reserved. (c) 2007 Murphy Industries, Inc. Other third party product or trade names referenced herein are the property of their respective owners and are used for identification purposes only.
  • Page 56 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com...
  • Page 57 TTD SETUP SHEET DATE : NAME : To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com COMPANY : ADDRESS: END USER END USER COMPANY : LOCATION : UNIT # : PANEL # : TTD-H S/N : HEAD (H) : SOFTWARE TTD P/N : POWER SUPPLY VERSION...
  • Page 58 TTD SETUP SHEET DESCRIPTION CLASS SENSOR To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com LOSS OF IGNITION (< 90VDC)(Internal) OVERSPEED (Internal) UNDERSPEED (Internal) MANUAL STOP (TTD Stop Button Pressed) WATCHDOG TIMER (Internal) LOSS OF SPI LINK (Internal) A - AL LOW DC SUPPLY VOLTAGE LOW BATTERY VOLTAGE (<...
