RC201
RC200
WARNING
RC201 - BASIC
READING WRITING CENTER
Magnetic
Marker Holder
(1)
Small Tub (2)
Open Tub (3)
Stretcher
635mm (2)
Hidden Items:
RC201
Tub Rack (2)
RC200
Tub Rack (4)
Please Recycle
Reading Writing Center
Assembly Guide
RC201_200 _2016_B
Check out our other products online at
www.copernicused.com
This product is meant to be assembled by an adult.
In its unassembled state, small parts present a hazard.
To be used under direct supervision of an adult.
Erase Whiteboard (1)
RC201_200 - Version B - December 5th, 2016 - Copernicus Educational Products Inc.
For assistance, please contact us:
1-800-267-8494
Email info@copernicused.com
Have your packing slip ready for reference
Chart Paper
Peg Hook (2)
Stretcher
718mm (2)
Chart Paper
Loop Hook (2)
Right A-Frame (1)
Left A-Frame (1)
Magnetic Dry
Ultra Safe
Book Ledge (1)
Lower Frame (2)
3" Twin Wheel
Locking Caster (4)
RC200- PREMIUM ROYAL
READING WRITING CENTER
Back Wire Rod (4)
Book Folder
-Large (1)
Magnetic
Marker Holder (2)
Book Folder
-Small (2)
Shelf (1)
Tiny Tubs (6)
Small Tub (4)
Open Tub (6)
Stretcher
635mm (2)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Copernicus RC200
Summary of Contents for Copernicus RC200

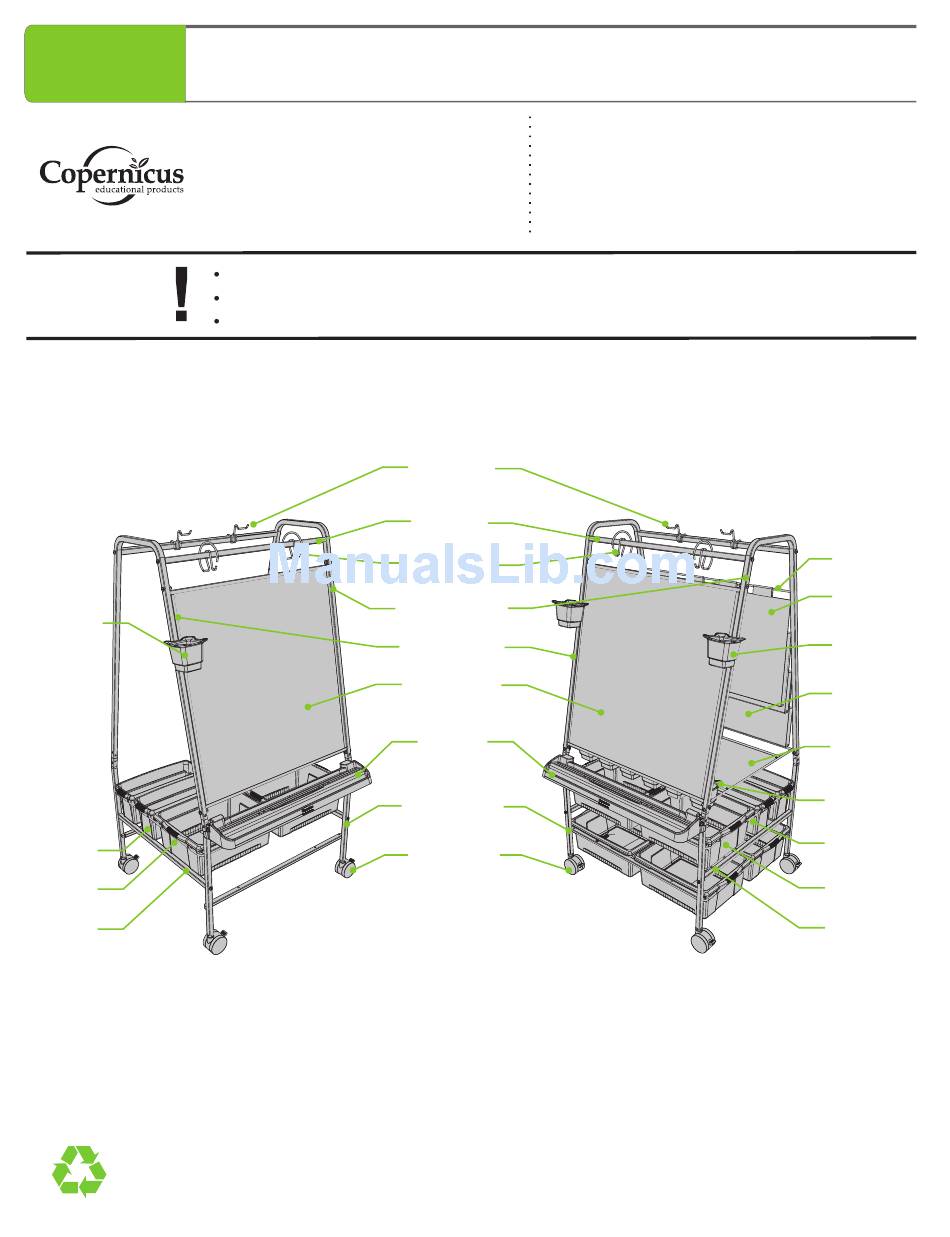

- Page 1 Locking Caster (4) Open Tub (6) Open Tub (3) Stretcher Stretcher 635mm (2) 635mm (2) Hidden Items: RC201 Tub Rack (2) RC200 Tub Rack (4) Please Recycle RC201_200 - Version B - December 5th, 2016 - Copernicus Educational Products Inc.
