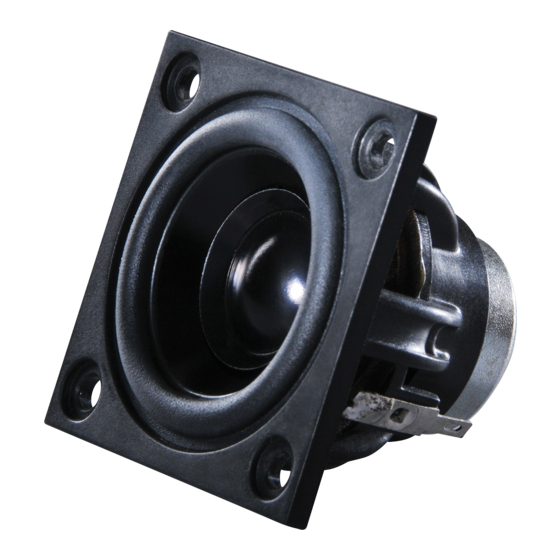

Celestion AN2075 Replacement Speaker
1
Ensure PT01 is powered off and not connected to the mains. With the top cover closed, turn
over the PT01 and remove the 8 screws from the base. Gently lift the base up from one side
and locate both the
respectively.
2
Separate the two sections and prepare to remove the stock speaker.
3
Unscrew and lift the speaker from the base,
then
cut
the 'red' and 'white' speaker wires
with a pair of snips.
Installation Guide

The kit should contain:

x1 Celestion AN2075 Speaker
x2 Connection Butts
USB Board
and
Mains In
Board. Disconnect the ribbon plug and 2 cables
