Professional Loudspeakers
NTR
Cast Aluminium Chassis, Neodymium Magnet Drivers
FTR
Cast Aluminium Chassis, Ferrite Magnet Drivers
CDX
Neodymium & Ferrite Magnet Compression Drivers
TN
Pressed Chassis, Neodymium Magnet Drivers
TF
Pressed Chassis, Ferrite Magnet Drivers
Custom Driver Development Services
Your Global Driver Solutions Partner
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Celestion FTR HDX Range FTR12-4080HDX
Summary of Contents for Celestion FTR HDX Range FTR12-4080HDX
- Page 1 Professional Loudspeakers Cast Aluminium Chassis, Neodymium Magnet Drivers Cast Aluminium Chassis, Ferrite Magnet Drivers Neodymium & Ferrite Magnet Compression Drivers Pressed Chassis, Neodymium Magnet Drivers Pressed Chassis, Ferrite Magnet Drivers Custom Driver Development Services Your Global Driver Solutions Partner...
- Page 2 • Extremely light weight design results in exceptional power-to-weight ratio. Drawing on expertise gained in pioneering the application of Neodymium magnet structures to high-performance PA drivers, the Celestion R&D team has created a new range of high-end cast aluminium chassis Neodymium drivers for professional sound reinforcement applications – NTR.
- Page 3 NTR Range Nominal Power Diameter Rating* NTR06-1705B 6.5"/165mm 150Wrms NTR06-1705D 6.5"/165mm 175Wrms NTR08-2011D 8"/203mm 200Wrms NTR10-2520D 10"/254mm 250W rms NTR10-2520E 10"/254mm 250W rms NTR12-3018D 12"/305mm 300W rms * AES Standard Impedance Sensitivity Frequency Range 8Ω 95.5dB 150Hz-7kHz 2.0mm/0.8" 8Ω 91dB 70Hz-7kHz 4.0mm/0.16"...
- Page 4 • Water resistant, glass-fibre impregnated cones with sealed surrounds and added damping for reduced cone resonances. • High excursion HDX subwoofers available. • Lightest weight in class. Typical of all high-end Celestion professional drivers, the Ferrite magnet FTR range combines linear excursion with advanced heat management to achieve low distortion and long product life.
- Page 5 FTR HDX Range FTR HDX Nominal Power Diameter Rating* FTR12-4080HDX 12"/305mm 1000Wrms FTR15-4080HDX 15"/381mm 1000Wrms FTR18-4080HDX 18"/457mm 1000Wrms FTR Range FTR15-3070C 15"/381mm 400Wrms FTR15-3070E 15"/381mm 400Wrms FTR15-4080F 15"/381mm 600Wrms FTR15-4080FD 15"/381mm 1000Wrms FTR15-4080HD 15"/381mm 1000Wrms FTR18-4080F 18"/457mm 600Wrms FTR18-4080FD 18"/457mm 1000W ms * AES Standard Impedance...
- Page 6 Neodymium 1.4"/35.6mm * AES Standard Providing a choice of flange or screw mounting devices, Celestion’s CDX range has earned a reputation for performance and value among system builders. Applying FEA to examine the behaviour of sound waves within a compression driver has resulted in a phase plug design for the CDX 14 Series that produces a more coherent wavefront at the driver exit.

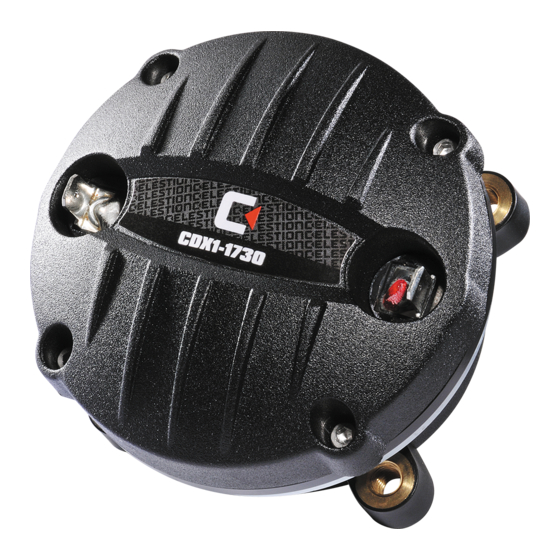

- Page 7 • Neodymium models are lightest and most compact in class. With a choice of Neodymium or Ceramic magnet models, the CDX 17 Series drivers make extensive use of Celestion’s industry- leading experience in Finite Element Analysis to optimise magnetic and acoustic design, achieving outstanding performance at highly competitive price points.
- Page 8 • Kevlar-impregnated cones with sealed surround and damping for reduced distortion. • High temperature copper voice coils wound on polyimide formers for increased reliability. • Double roll surround for greater excursion control. • Magnetically shielded. Celestion’s pressed steel drivers are widely acclaimed for their first-class performance, excellent reliability and price- performance ratio.
- Page 9 • High temperature copper voice coils wound on polyimide formers for increased reliability. • Double roll surround for greater excursion control. With eighteen models including closed-back midrange designs, Celestion TF provides system builders with a dependable, comprehensive range of conventional, pressed steel, Ferrite magnet drivers.
- Page 10 Pioneering users of FEA for the prediction of motor distortion, mechanical and thermal properties, Celestion was the first loudspeaker manufacturer to use FEA for vibro-acoustic modelling, and also to predict magnetic inductance, subsequently combining these results with magneto- static modelling to provide a complete, voltage-coupled model.
- Page 11 • OEM account managers located in all major territories. • Warehousing and logistics centres in the US (East and West Coast), Europe, China and Hong Kong. • As part of the US$ 1 Billion Gold Peak group, Celestion manufacturing takes place at our own, 30,000m facility in China.
- Page 12 Celestion International Ltd., Claydon Business Park, Great Blakenham, Ipswich IP6 0NL, UK Tel: +44 (0)1473 835300 www.celestionprofessional.com Celestion adopts a progressive policy and we reserve the right to alter drive unit specifications and/or appearance without prior notice. LIT 0680 / 0703...
