Celestion Originals Series G12T Hot 100 Specifications

8Ω FREQUENCY RESPONSE
SPL (dB)
110
90
70
20 100
Celestion International Ltd, Claydon Business Park, Great Blakenham, Ipswich, IP6 0NL, England
Tel: +44 (0)1473 835300 Fax: +44 (0)1473 835301 info@celestion.com www.celestion.com
1k
FREQUENCY (Hz)

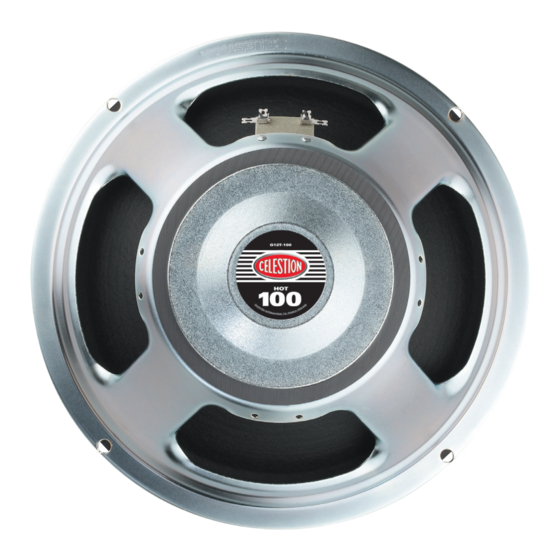

G12T
'HOT 100'
With a massive 100W power rating, this
speaker sits perfectly in high-power or
hybrid amplifiers. It voices a modern
sound with a big bass presence.

GENERAL SPECIFICATIONS

Nominal diameter . . . . . . . . . . . . . . . . 12", 305mm
Power rating . . . . . . . . . . . . . . . . . . . . . . . . . 100W
Nominal impedance . . . . . . . . . . . 4Ω & 8Ω & 16Ω
Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . 97dB
Chassis type . . . . . . . . . . . . . . . . . . . Pressed steel
Voice coil diameter . . . . . . . . . . . . . . . 2", 50.8mm
Voice coil material . . . . . . . . . . . . . . Round copper
Magnet type . . . . . . . . . . . . . . . . . . . . . . . Ceramic
Magnet weight . . . . . . . . . . . . . . . . . . 35oz, 0.99kg
Frequency range . . . . . . . . . . . . . . . . . . 80-5000Hz
Resonance frequency, Fs . . . . . . . . . . . . . . . . 86Hz
DC resistance, Re . . . . . . . . 3.4Ω, 7.4Ω & 14.83Ω

MOUNTING INFORMATION

Diameter . . . . . . . . . . . . . . . . . . . . . 12.2", 309mm
Overall depth . . . . . . . . . . . . . . . . . . . 4.9", 124mm
Magnet structure diameter . . . . . . . . . . 5.8", 148mm
Cut-out diameter . . . . . . . . . . . . . . . 11.1", 283mm
20k
Mounting slot
dimensions . . . . . . . . . . . . . . . . . . 0.31", 7.9mm Ø
Number of mounting slots . . . . . . . . . . . . . . . . . . 4
Mounting slot PCD . . . . . . . . . . . . . . 11.7", 297mm
Unit weight . . . . . . . . . . . . . . . . . . . . . 7.1lb, 3.2kg
