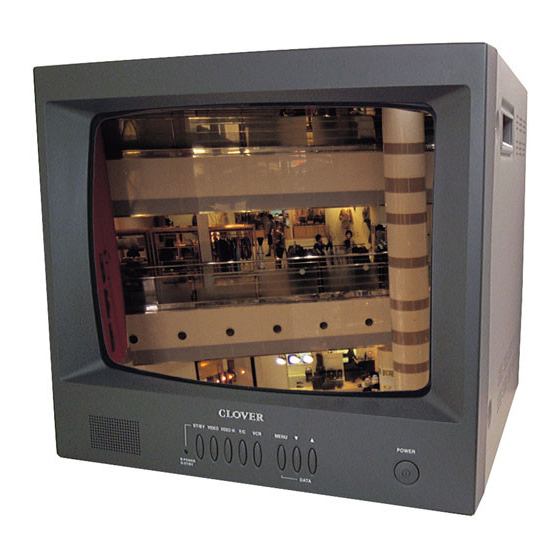

Clover C1401 Installation

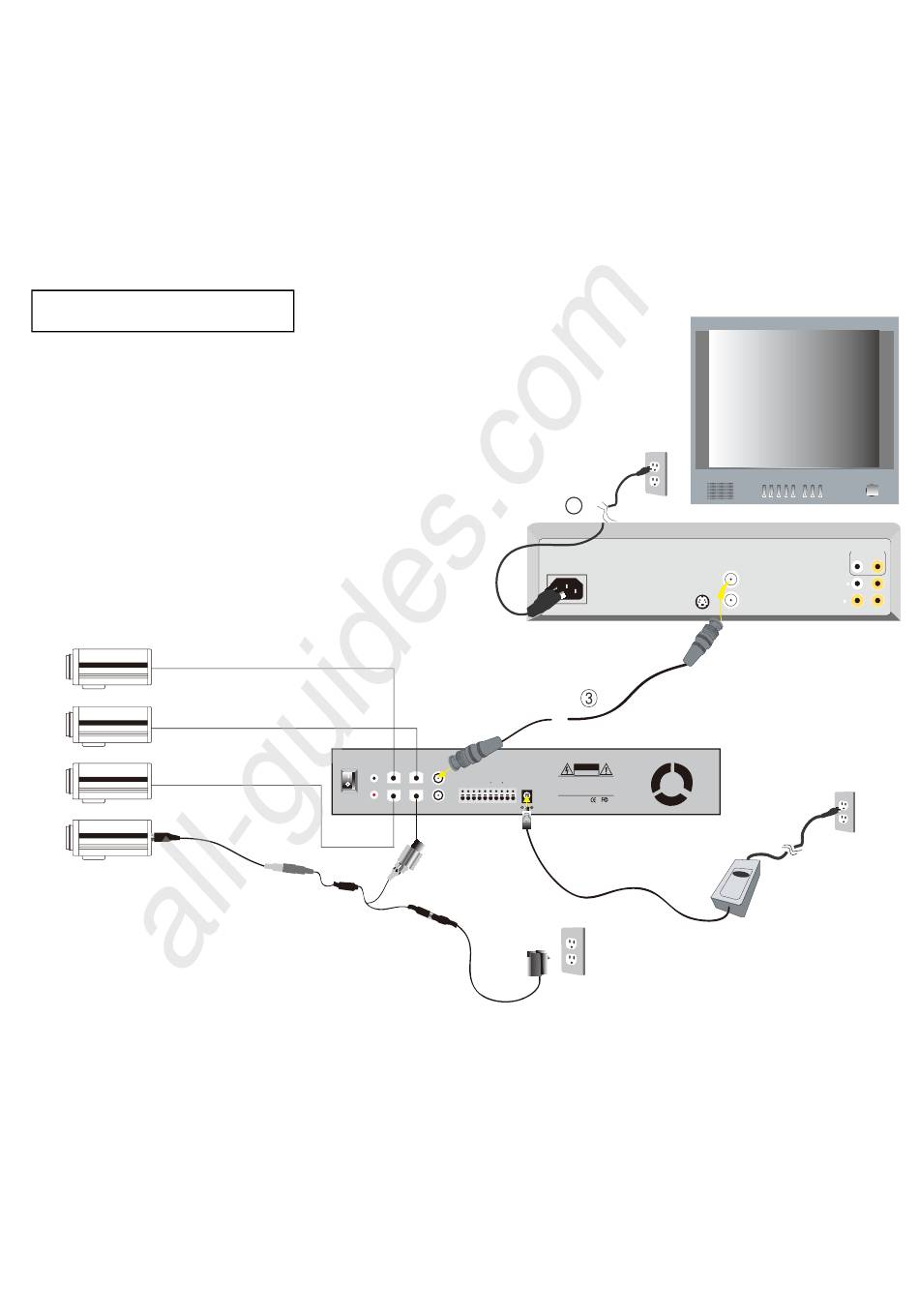

INSTALLATION

1. Attach the mounting bracket to the desired location on the wall or ceiling, wher-
ever you want to install the camera. Locate a wall stud or a ceiling joist and
secure the mounting bracket using the supplied screws. Please firmly tighten
the screws on the mounting bracket.
2. Connect the one end of the cable to the RCA jack on the rear of the camera
and the other end of the cable to the one of the camera inputs on the rear of
the DVR.
3. Connect the one end of the 4 BNC cable to the Monitor (Video output) on the
rear of the DVR and the other end of the cable to the VIDEO INPUT on the rear
of the monitor.
4. Plug the AC power cord to the monitor and AC outlet.
5. Press the POWER button on the front panel of the monitor and then press the
Video Button.
6. Plug the DC plug of AC adapter for DVR (DC 12V 3.5A) to DC jack on the rear
of the DVR and to AC outlet. Turn on the power switch on the rear of the DVR.
Camera
①
60'
All manuals and user guides at all-guides.com
POWER
CAM1 CAM2
ON
IN
1 2 3
OUT
OFF
AUDIO CAM3 CAM4 MON
Yellow
②
2'
Red
Black
Wall
Outlet
4
AC IN
' 4
CDR4060
DVR Rear View
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRONIC SHOCK
OUT
DC12V DO NOT REMOVE COVER(OR BACK)
4 GND NO COM NC RX TX
NO USER SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO9001
Wall
Outlet
Power
Adapter
C1401
Monitor Rear View
AUDIO INPUT
A
VIDEO INPUT
75Ohm(A)
VCR INPUT
Y/C IN
HI(B)
VCR OUT
VIDEO AUDIO
Wall
Outlet
⑤
A d a t p r e
B
