Clover CSM-14248 Quick Installation Manual

Quick Installation For CSM14248
1.Attach the mounting bracket to the desired location on the wall
or ceiling. wherever you want to install the camera. Locate a wall
stud or ceiling joist and secure the mounting bracket using the
supplied screws.
2.Attach the camera to the mounting bracket and firmly tighten the
swivel

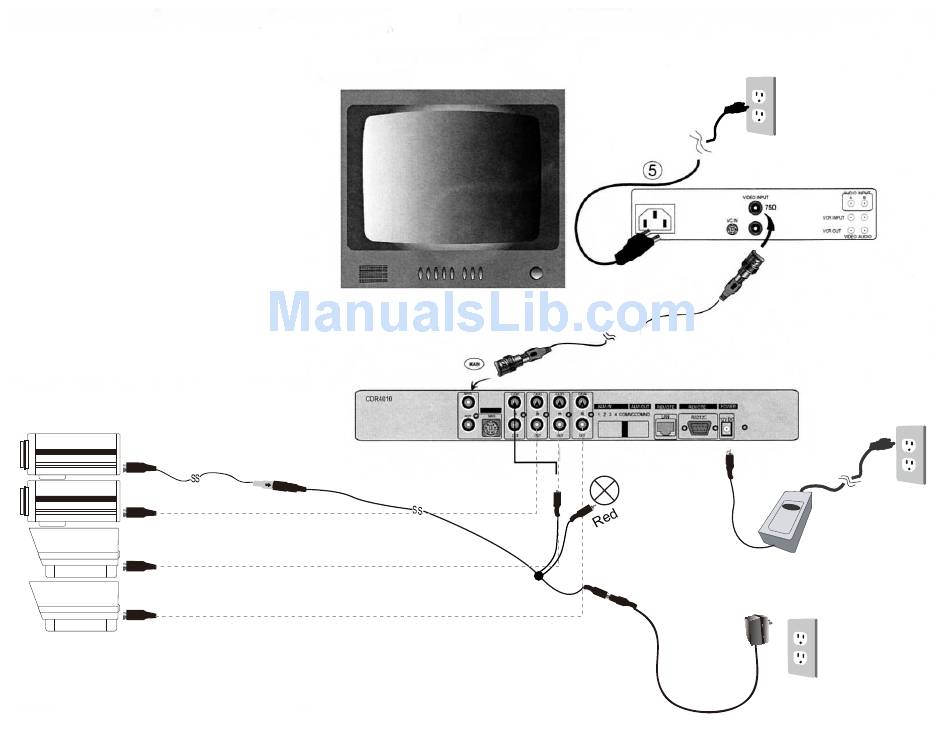

3.Connect the one end of cable① to the Din jack on the rear of the
camera and the other end of cable to the Coupler for Connecting
Cable ② The Arrow Sign on the Cable must be on the top.
4.Connect the BNC of the end of 5'③to the one of camera inputs
on the rear of DVR and DC jack(red) to AC adapter(ADT120250)
5.Connect the one end of BNC cable④ to the VIDEO input on the
rear of Monitor(C1401)
6.Plug the AC Power cord⑤ to the monitor (C1401) and AC outlet.
7.Turn on the power switch on the front panel of monitor(C1401)
8.Plug the DC plug⑥ of AC adapter for DVR (DC12V 3.5A)to DC
in on the rear of DVR and to AC outlet
9.How to operate the DVR:refer to user's manual.
①
60'
Monitor
②
③
5'
Wall
Outlet
④
CDR4010
Rear View
Red
Black
Power
Adapter
Monitor
Rear View
Wall
Outlet
�
A d a t p r e
Wall
Outlet
