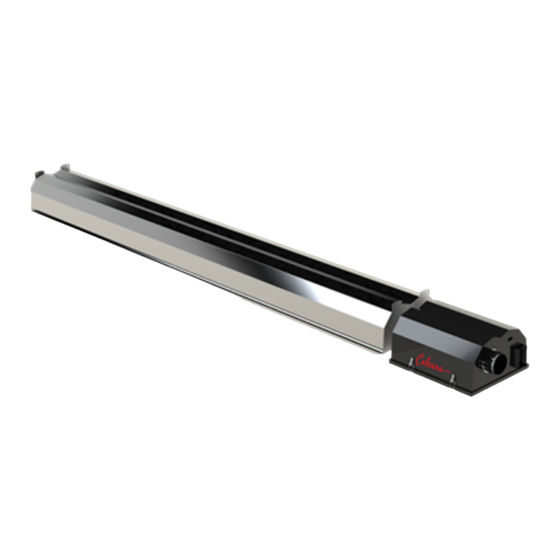

SR-SERIES
Specifications, Installation, Operation Service and Spare Parts Manual
WARNING:
Improper installation, adjustment,
alteration, service or maintenance can cause property
damage, injury or death. Read (refer to) the
installation operating and maintenance instructions
thoroughly before installing or servicing this
equipment. For assistance or additional information
consult a qualified installer, service agency or the gas
supplier.
WARNING:
If the information in these instructions
is not followed exactly, a fire or explosion may result;
causing property damage, personal injury or loss of
life.
-Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
DANGER: WHAT TO DO IF YOU SMELL GAS:
1) Extinguish any open flame
2) DO NOT try to light any appliance.
3) DO NOT use or touch any electrical switches.
4) DO NOT use any phone in your building
5) Turn off gas.
6) Open Windows
7) Leave the building
8) Immediately call your gas supplier from a
neighbor's phone or after you have left the
building. Follow the gas supplier's instructions.
9) If you cannot reach your gas supplier, call the fire
department.
- Installation and service must be performed by a
qualified installer, service agency or the gas supplier
WARNING:
Heat exchanger surface is hot. Do not touch surface or burn may result. Combustible material or
articles should not be placed on or near heater. Observe clearance to combustibles as noted on heater and in this
manual.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for future
reference.
Printed in USA
Low Intensity Infrared Heater/Radiateur à infrarouge a faible intensité
For either indoor or outdoor installation/Installer à l'intérieur ou à l'extérieur
Also for Brooder Use/Aussi pour l'eveage des poules
For Industrial, Commercial, Agricultural Applications.
INSATLLATEUR: Laissez cette notice
avec I' appareil.
CONSOMMATEUR: Conservez cette
notice pour consultation ultérieure.
© 2019 Calcana USA Ltd.
