INSTALLATION GUIDE
4

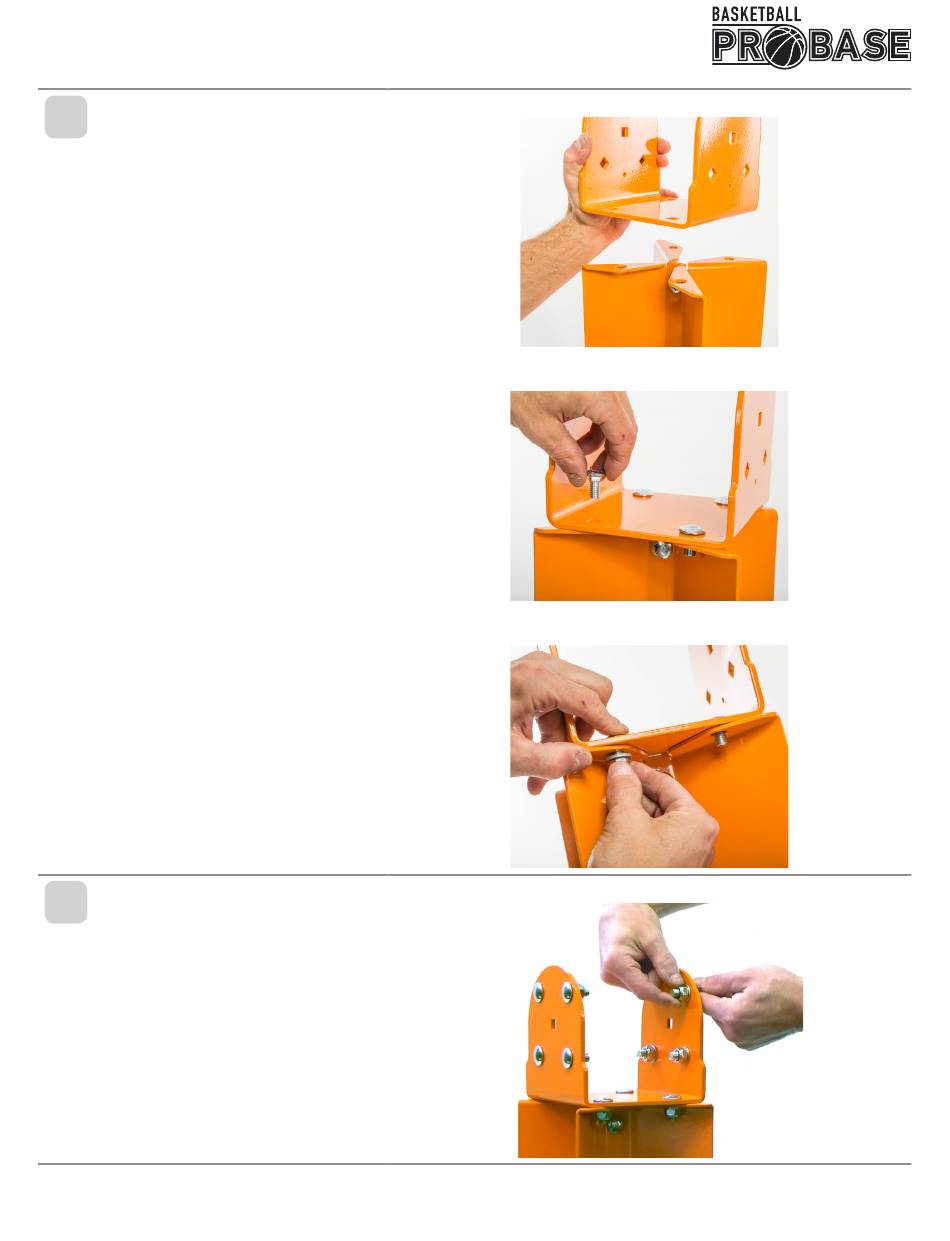

ASSEMBLE THE PIVOT BASE
TO THE STAKE
Assemble the pivot base (D) to the
upper part of the stake, aligning
the 4 holes of each part.
Insert 4 bolts (J), 4 flat washers*
(L) and 4 nuts (K) into the 4 holes,
and tighten the bolts firmly.
5
FASTEN THE BOLTS
Fasten 8 bolts (J), 8 flat washers*
(L) and 8 nuts (K), into the 8 outer
holes located on the side of the
pivot base. Tighten slightly.
Leave the center hole empty.
4.1
4.2
4.3
5.1
- 7 -
