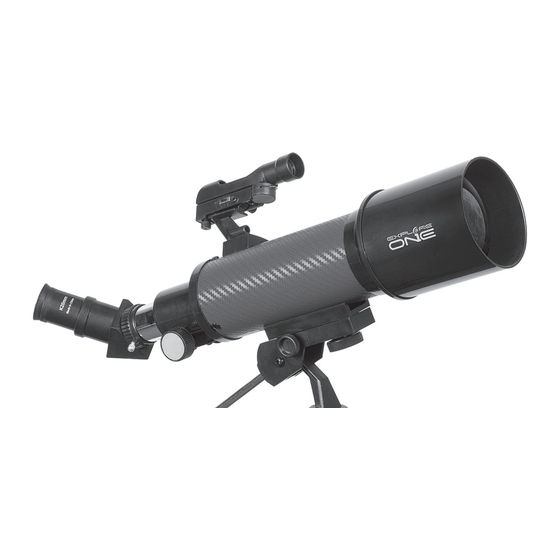

CF400SP TELESCOPE
70 mm Telescope Pan Handle AZ Mount
Optical Design
Magnification
Front Lens (clear aperture)
Focal Length
Standard Eyepieces
Finish
Tripod
WARNING:
SUN HAZARD — Never look directly at the sun
with this device.
WARNING:
CHOKING HAZARD — Small parts.
Not for children under 3 years.
w/Smartphone Adapter
Instruction Manual
Specifications
CR2032
3V
Contains button or coin cell battery.
Hazardous if swallowed — see instructions.
Achromatic Refractor
1.25" K6 mm & K20 mm
Carbon Fiber Wrap Design
Alt-azimuth Tripod
1
X
INCLUDED
WARNING:
1
88-10073CF
20 - 67x
70 mm
400 mm
WARNING:
This product can expose you to chemicals including lead,
which is known to the State of California to cause cancer.
For more information go to www.P65Warnings.ca.gov.
WARNING:
The lens contains lead that may be harmful.
Wash hands after touching.
10+
Advertisement
Table of Contents
Related Manuals for Explore One CF400SP
Summary of Contents for Explore One CF400SP
- Page 1 88-10073CF CF400SP TELESCOPE 70 mm Telescope Pan Handle AZ Mount w/Smartphone Adapter Instruction Manual Specifications Optical Design Achromatic Refractor Magnification 20 - 67x Front Lens (clear aperture) 70 mm Focal Length 400 mm Standard Eyepieces 1.25” K6 mm & K20 mm...
- Page 2 SUN WARNING WARNING: NEVER ATTEMPT TO OBSERVE THE SUN WITH THIS DEVICE! OBSERVING THE SUN – EVEN FOR A MOMENT – WILL CAUSE INSTANT AND IRREVERSIBLE DAMAGE TO YOUR EYE OR EVEN BLINDNESS. EYE DAMAGE IS OFTEN PAINLESS, SO THERE IS NO WARNING TO THE OBSERVER THAT THE DAMAGE HAS OCCURRED UNTIL IT IS TOO LATE.
- Page 3 Parts Overview 1. 70mm Objective Lens 2. Pan- Tilt Alt-Azimuth Mount 3. Tripod with Accessory Tray 4. Optical Tube Assembly with Dew Shield 5. Focus Wheel 6. 45⁰ Erecting Prism Diagonal 7. 1.25” Eyepieces (K6 mm & K20 mm) 8. Red Dot Viewfinder 9.
- Page 4 How To Set Up Assembly: Note: We recommend assembling your telescope for the first time in the daylight or in a lit room so that you can familiarize yourself with assembly steps and all components. 1. Open the tripod until the tripod spreaders are fully extended. Put the accessory tray in place and turn it clockwise until stable.
- Page 5 Using/Aligning the Red Dot Viewfinder: The viewfinder is powered by a CR-2032 battery that is included. Before using the viewfinder for the first time, remember to remove the plastic insulator that is blocking the battery from connecting. When it is time to replace the battery, remove the battery cap by loosening the set screw. Take out the old battery and slide a new battery in place with the positive side showing.
- Page 6 cloth can be moistened with an optical glass cleaning fluid and the lens wiped clean using very little pressure. Do not use harsh detergents! Make sure your telescope is always protected against dust and dirt. After use, leave it in a warm room to dry off before storing. Possible Objects For Observation: Terrestrial Objects Take note of the examples below, including Mount Rushmore and the golf course.
- Page 7 Using the Smartphone Adapter: SUPERVISION BY ADULTS Read and follow the instructions, safety rules and first aid information The Smartphone Adapter will allow you to connect almost any “smart” device to a 1.25” eyepiece. To use the adapter, place it directly onto the selected eyepiece and secure it by tightening the setscrew until snug.
- Page 8 • The WEEE symbol if present indicates that this item contains electrical or electronic components which must be collected and disposed of separately. • Never dispose of electrical or electronic waste in general municipal waste. Collect and dispose of such waste separately. •...
