DG NVMe-IP Demo Instructions

Hide thumbs Also See for NVMe-IP:

Advertisement

Quick Links

Download this manual
dg_nvmeip_instruction_en.doc
This document describes the instruction to run NVMe-IP demo on FPGA development board by
using AB16-PCIeXOVR board. The demo is designed to write/verify data with NVMe PCIe SSD.
User can control test operation through Serial console.
1 Environment Requirement
To demo NVMe-IP on FPGA development board, please prepare following hardware/
software.
1) Supported FPGA Development board: KC705/VC707/VC709/ZC706/KCU105/ZCU106/
Zynq Mini-ITX (7Z045 model)
2) PC with Xilinx programmer software (iMPACT/Vivado) and Serial console software
3) AB16-PCIeXOVR board + power adapter cable from AB16 delivery set
Note: Zynq Mini-ITX has built-in PCIe Female connector, so the adapter board is not
required.
4) Xilinx Power adapter for Xilinx board or ATX power supply for Zynq Mini-ITX board
5) NVMe PCIe SSD connecting to PCIe Female connector on AB16/Mini-ITX board
6) micro USB cable for programming FPGA between FPGA board and PC
7) mini/micro USB cable for Serial console, connecting between FPGA board and PC

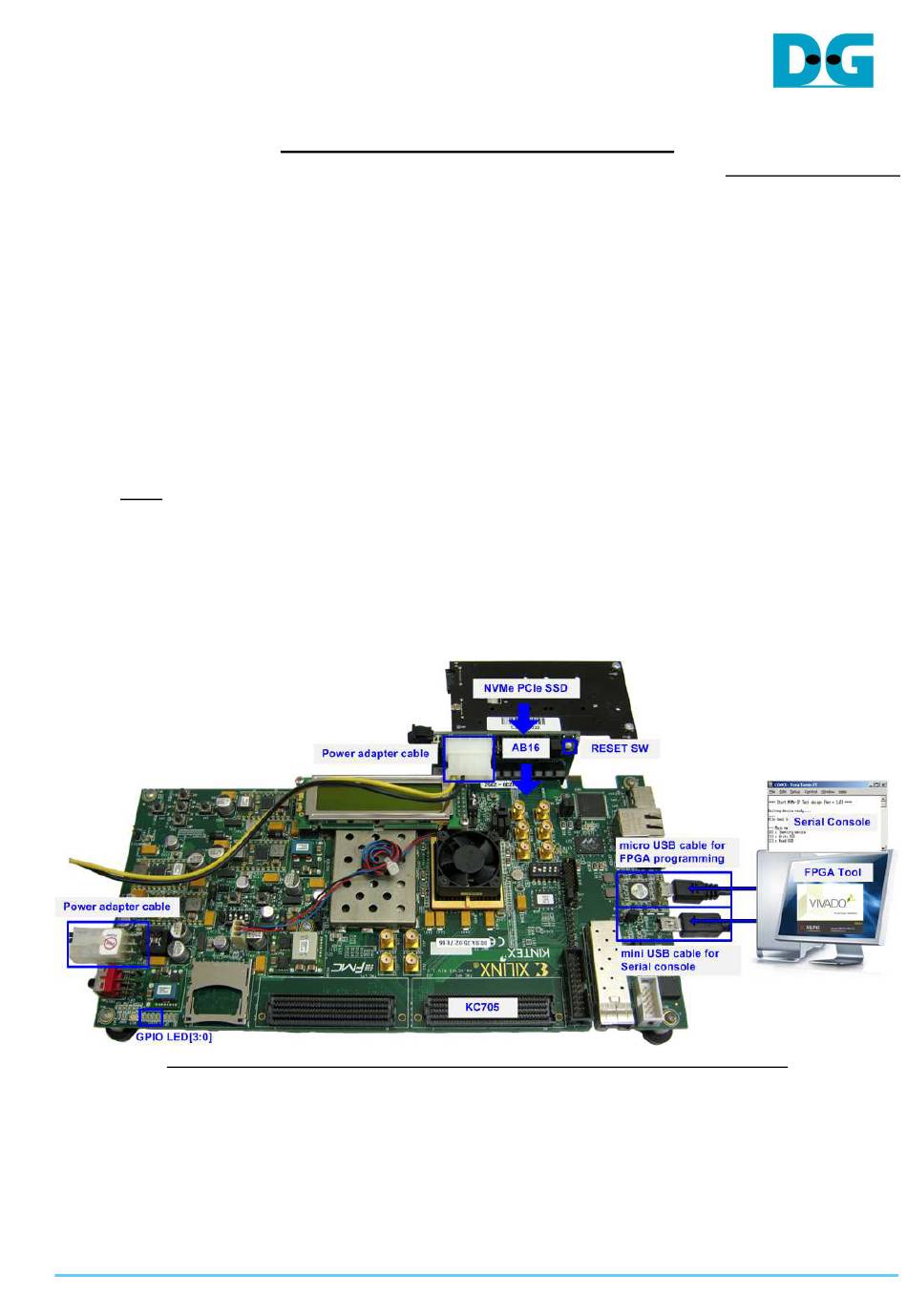

Figure 1-1 NVMe-IP Demo Environment Setup on KC705 (PCIe Gen2)
30-Nov-17
NVMe-IP Demo Instruction
Rev2.1 30-Nov-17
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the NVMe-IP and is the answer not in the manual?

Questions and answers

Related Manuals for DG NVMe-IP

Summary of Contents for DG NVMe-IP

  • Page 1 NVMe-IP Demo Instruction Rev2.1 30-Nov-17 This document describes the instruction to run NVMe-IP demo on FPGA development board by using AB16-PCIeXOVR board. The demo is designed to write/verify data with NVMe PCIe SSD. User can control test operation through Serial console.
  • Page 2 Figure 1-2 NVMe-IP Demo Environment Setup on VC707 (PCIe Gen2) Figure 1-3 NVMe-IP Demo Environment Setup on VC709 (PCIe Gen3) 30-Nov-17 Page 2...
  • Page 3 Figure 1-4 NVMe-IP Demo Environment Setup on ZC706 (PCIe Gen2) Figure 1-5 NVMe-IP Demo Environment Setup on KCU105 (PCIe Gen3) 30-Nov-17 Page 3...
  • Page 4 Figure 1-6 NVMe-IP Demo Environment Setup on ZCU106 (PCIe Gen3) Figure 1-7 NVMe-IP Demo Environment Setup on Zynq Mini-ITX (PCIe Gen2) 30-Nov-17 Page 4...

  • Page 5: Demo Setup

    dg_nvmeip_instruction_en.doc 2 Demo setup 1) Power off system. 2) DIP Switch setup. a) For ZC706 board only, Set SW11=”00000” to configure PS from JTAG, as shown in Figure 2-1. Set SW4=”01” to connect JTAG with USB-to-JTAG interface, as shown in Figure 2-2.
  • Page 6 dg_nvmeip_instruction_en.doc Figure 2-4 The power module installed onto the board c) For ZCU106 only Set SW6=”0000” to configure PS from JTAG, as shown in Figure 2-5. Figure 2-5 SW6 setting to configure PS from JTAG on ZCU106 30-Nov-17 Page 6...
  • Page 7 dg_nvmeip_instruction_en.doc 3) Connect power adapter cable from AB16-PCIeXOVR delivery set to power connector on FPGA board, on AB16-PCIeXOVR board, and on Xilinx power adapter as shown in Figure 2-6. Figure 2-6 Connect power adapter cable to FPGA board, AB16, and Xilinx adapter 4) Connect A Side of PCIe connector on AB16-PCIeXOVR board to PCIe connector on Xilinx development board, as shown in Figure 2-7.
  • Page 8 dg_nvmeip_instruction_en.doc 5) Connect NVMe PCIe SSD to B Side of PCIe connector on AB16-PCIeXOVR board or to PCIe Female connector on Mini-ITX board, as shown in Figure 2-8. Figure 2-8 Connect NVMe PCIe SSD to AB16/Mini ITX board 6) a) For KC705/VC707/VC709/ZC706, connect micro USB cable from Xilinx development board to PC for JTAG programming, and connect mini USB cable from Xilinx board to PC for Serial console.
  • Page 9 dg_nvmeip_instruction_en.doc 7) Power on FPGA development board and AB16-PCIeXOVR board, as shown in Figure 2-10 and Figure 2-11. Figure 2-10 Power switch on AB16 board Figure 2-11 Power switch on FPGA board 8) Open Serial console such as TeraTerm, HyperTerminal. Set Buad rate=115,200 Data=8 bit Non-Parity Stop=1.
  • Page 10 dg_nvmeip_instruction_en.doc 9) Download bit file or bat file to configure FPGA and firmware. a) For Zynq-7000 boards (Zynq Mini-ITX/ZC706), open Vivado TCL shell, change directory to ready_for_download, run MiniITX/zc706_nvmeTest.bat, as shown in Figure 2-12 Figure 2-12 Command script for download demo file to ZC706/Mini-ITX by Vivado tool b) For ZCU106 board, open Vivado TCL shell, change directory to ready_for_download, type exec xsdb ipi_app_download.tcl, as shown in Figure 2-13 Figure 2-13 Command script for download demo file to by ZCU106 Vivado tool...
  • Page 11 dg_nvmeip_instruction_en.doc c) For other boards (KC705/VC707/VC709/KCU105), use Vivado tool to program bit file, as shown in Figure 2-14. Figure 2-14 Programmed by Vivado 30-Nov-17 Page 11...
  • Page 12 dg_nvmeip_instruction_en.doc 10) Check LED status on FPGA board. The description of LED is as follows. GPIO LED 0/D4 Normal operation Clock is not locked or reset button is pressed 1/R/D5 System is busy Idle status 2/C/D6 IP Error detect Normal operation 3/L/D7 Data verification fail Normal operation Table 2-1 LED Definition...
  • Page 13 dg_nvmeip_instruction_en.doc Figure 2-17 Main menu after program configuration file and PCIe initialization complete 30-Nov-17 Page 13...
  • Page 14 dg_nvmeip_instruction_en.doc 3 Test Menu 3.1 Identify Device Select ‘0’ to send Identify command to NVMe PCIe SSD. When operation is completed, SSD capacity and model name are displayed on the console. Figure 3-1 Result from Identify Device menu 30-Nov-17 Page 14...
  • Page 15 dg_nvmeip_instruction_en.doc 3.2 Write SSD Select ‘1’ to send Write command to NVMe PCIe SSD. Three inputs are required for this menu. 1) Start LBA: Input start address of SSD in sector unit. The input can be decimal unit or add “0x”...
  • Page 16 dg_nvmeip_instruction_en.doc Figure 3-3 Example Test data in sector#0/#1 by increment/LFSR pattern Test data of each sector has different 64-bit header which consists of 48-bit LBA address and 16-bit all 0 value. 48-bit LBA address is unique value for each sector. After that, the test pattern is filled following user selection such as 32-bit increment pattern (left window of Figure 3-3), 32-bit LFSR pattern (right window of Figure 3-3).
  • Page 17 dg_nvmeip_instruction_en.doc Figure 3-4 – Figure 3-6 show the error message when user input is invalid. “Invalid input” message are displayed on the console. Then, it returns to main menu to receive new command. Figure 3-4 Invalid Start LBA input Figure 3-5 Invalid Sector count input Figure 3-6 Invalid Test pattern input 30-Nov-17 Page 17...
  • Page 18 dg_nvmeip_instruction_en.doc 3.3 Read SSD Select ‘2’ to send Read command to NVMe PCIe SSD. Three inputs are required for this menu. 1) Start LBA: Input start address of SSD in sector unit. The input can be decimal unit or add “0x”...
  • Page 19 dg_nvmeip_instruction_en.doc Figure 3-8 Data verification is failed, but wait until read complete Figure 3-9 Data verification is failed, and input any keys to cancel operation 30-Nov-17 Page 19...

  • Page 20: Revision History

    5-Sep-16 Support ZC706 board 9-Sep-16 Support KC705 board 29-Sep-16 Support Zynq Mini-ITX board 28-Oct-16 Support VC709 board 14-Dec-16 Update performance result of new buffer system 8-Jun-17 New NVMe-IP version 27-Jul-17 Add LFSR pattern 30-Nov-17 Support ZCU106 board 30-Nov-17 Page 20...
