4.3.1 WAN

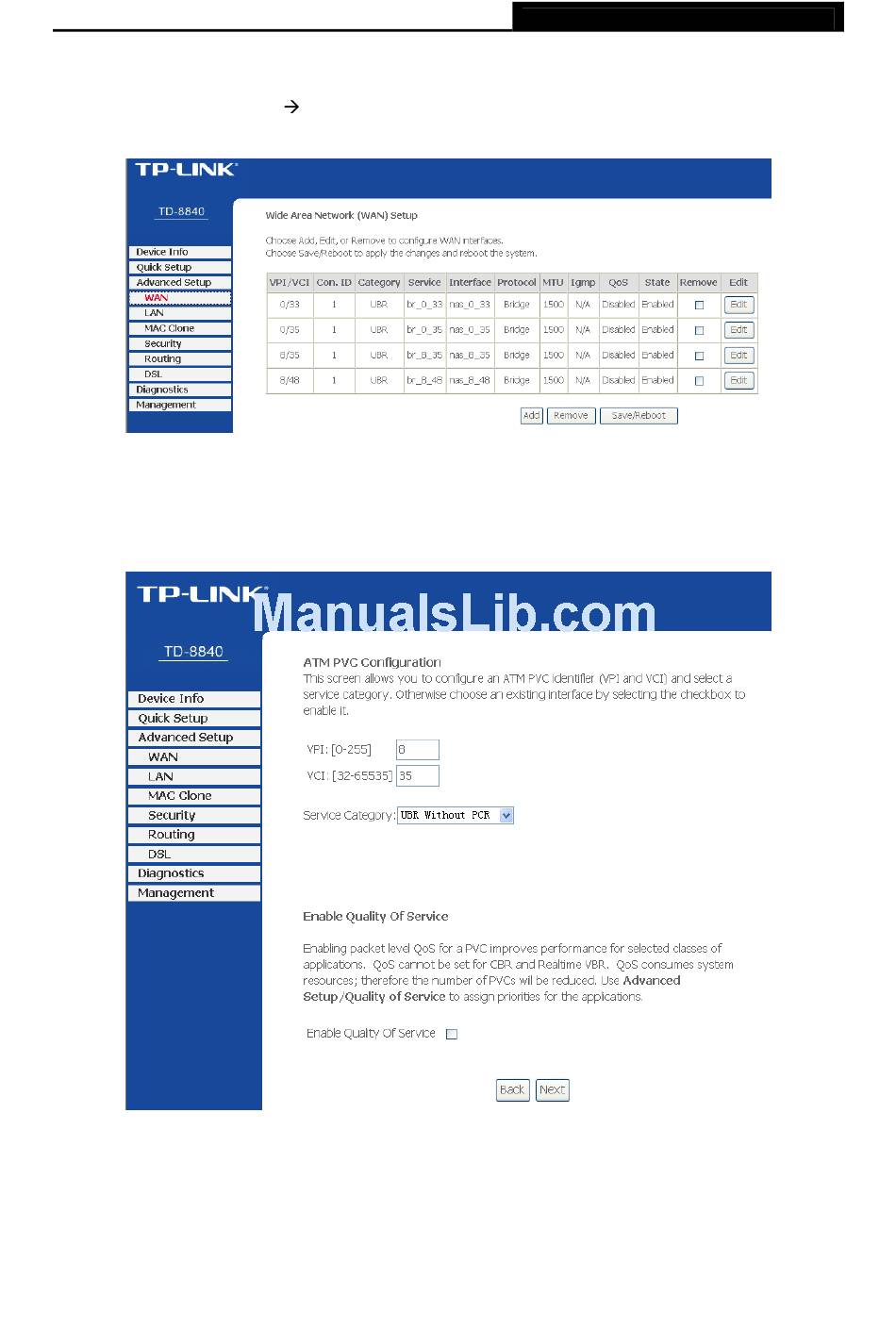

Choose "Advanced Setup" "WAN", and you will see the page of Wide Area Network (WAN)

Setup as shown in Figure 4-3.

There are 4 PVC links in the WAN setup page. Click the Add button or choose the appropriate

PVC according to your need. Then you will enter the page of ATM PVC Configuration as shown

in Figure 4-4.

Enter VPI/VCI value and service category provided by your ISP. Click Next to enter the next step.

You will see the Figure 4-5.

TD-8840

ADSL2+ Modem Router User Guide

Figure 4-3

Figure 4-4
