LOXONE Miniserver Go Quick Start Manual page 2

About the product
The Miniserver Go is a device for the automatic control and
management of home automation and similar non safety
critical applications. The Loxone Miniserver Go has a fully
integrated Air Base Extension and is perfect for retrofitting
Loxone in existing homes.
Installation & electrical connection
If the unit is used in a non conform manner as specified by
the manufacturer the product included safeguards will be
impaired.
Information
Contains FCC ID: COR-ZWIR4512AC1
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received,
including interference that may cause undesired operation
This folder is a part of the product!
For additional information, declaration of confirmity,
visit www.loxone.com/help/miniserver-go

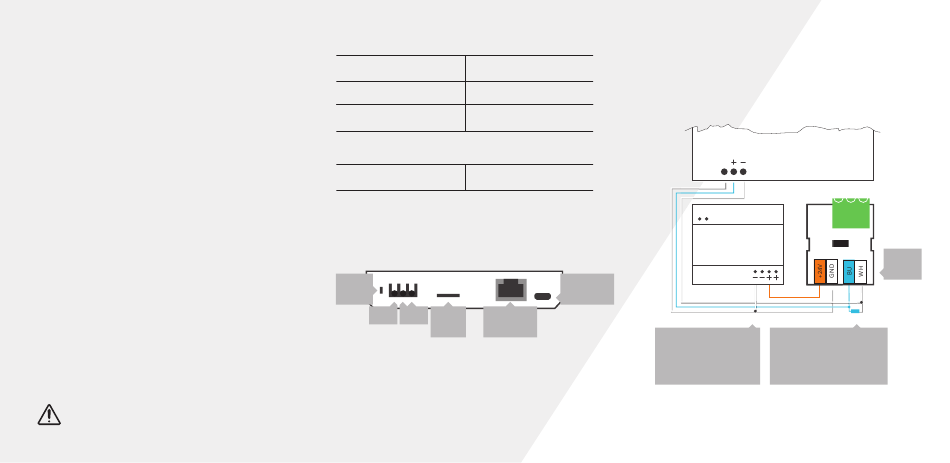

Loxone Link Connection
0.2 ... 1.5 mm² / AWG24 ... 16
Wire cross-section
8mm / 0.31"
Striping length
Temperature resistance -40 ... 105°C / -40 ... 221°F
Micro USB Connector
Micro USB 2.0 Type B
Connector type
Specifications
Status
LED
GND Link
Micro LAN
SD Connector
Connect Extension
GND
N L
24VDC
Power Supply
Power via
Micro USB
Keep in mind that GND
needs to be connected
to the ground of
the 24V Power.
Miniserver Go
Link
EXT EXT EXT
Loxone
Link
Please use the 120 Ohm
resistor at the last Extension
which is connected to the
Loxone Link.
