Rule Type: Select MAC for the MAC Filter rule.
Active: Select "Yes" to make the rule to take effect.
MAC Address: Enter the MAC address for the rule.
Rule Unmatched: If the current rule can not match, and you select Forward, the router will
skip the rule and transmit directly. If you select Next, the router will find the next filter rule
(show in Filter list) to match.
IP/MAC Filter Listing: This displays the information about the MAC Filter rules.
To add a MAC Address filtering entry:
For example: If you want to block the PCs with MAC addresses 00-0A-EB-00-07-BE and
00-0A-EB-00-07-5F to access the Internet, you can configure as follows. Presume the rules are
both aimed at the interface PVC0, and their indexes are (1, 1) and (1, 2).
Step 1: Select the "IP/MAC Filter" as the Filer Type Selection:

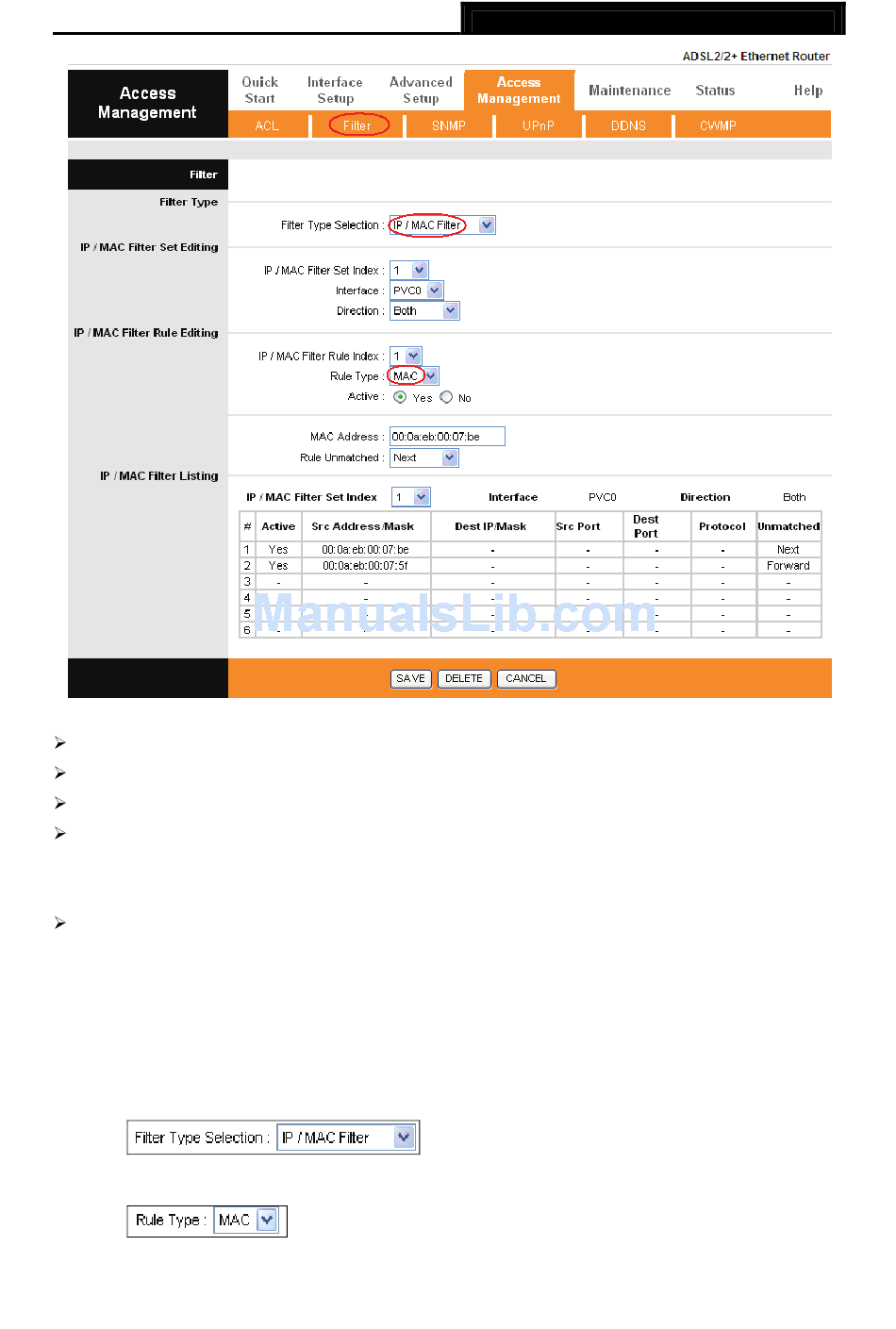

Select the "MAC" as the Rule Type on the Filter screen (show in Figure 4-28).
Step 2: Select the IP/MAC Filter Set Index and IP/MAC Filter Rule Index for the rule, then
TD-8816B
Figure 4-28
, Then you can configure the specific rule for the example.
