TP-Link ADSL2/2+ User Manual page 16

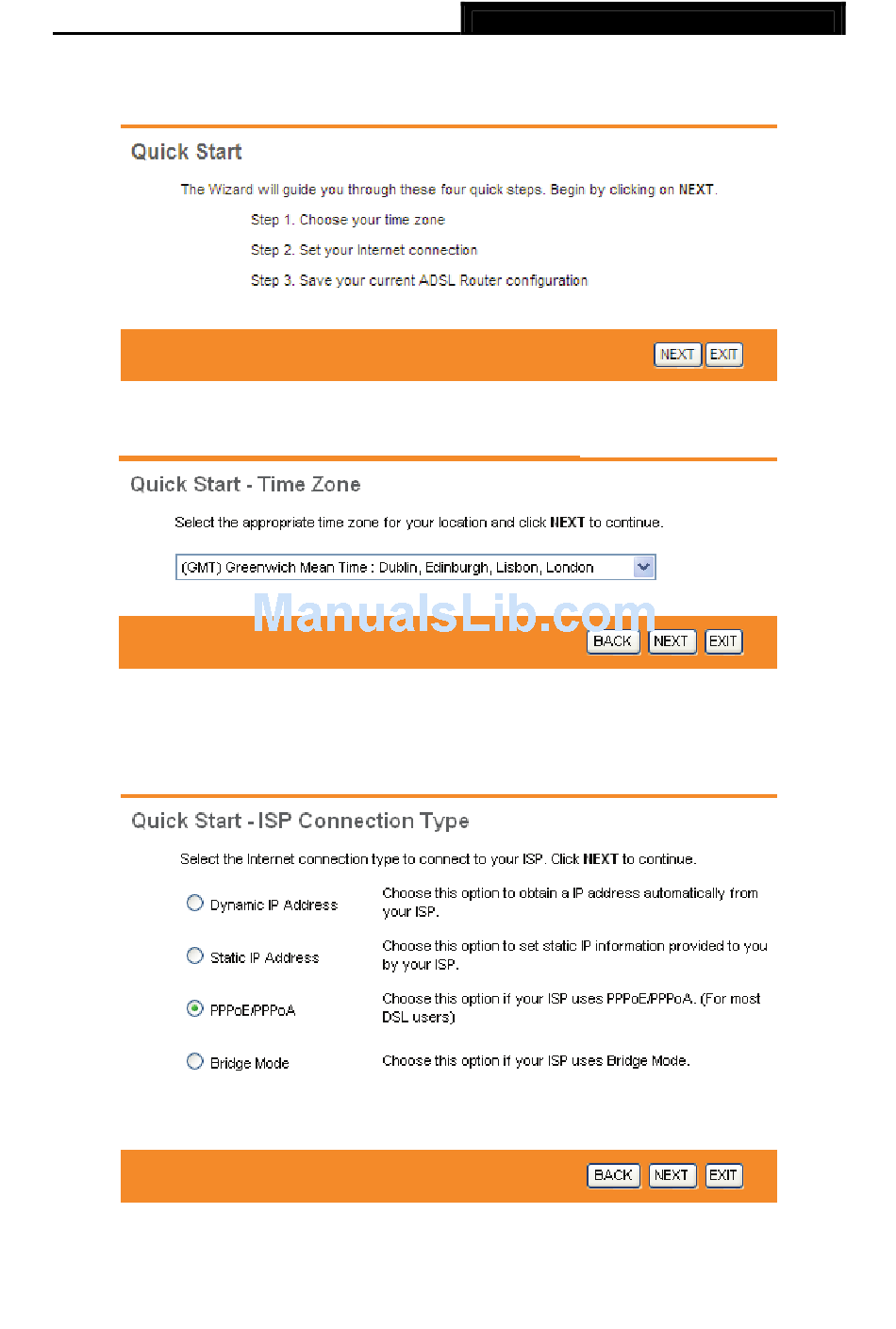

Step 1: Select the Quick Start tab, then click RUN WIZARD, and you will see the next screen.
Click the NEXT button.
Step 2: Configure the time for the Router, and then click the NEXT button.
Step 3: Select the connection type to connect to the ISP (We select PPPoE/PPPoA mode for
example here), and then click the NEXT button.
Step 4: Configure the following options provided by your ISP: Username, Password, VPI, VCI
and Connection Type. Then click Next.
TD-8816B ADSL2/2+ Ethernet Modem User Guide
Figure 3-8
Figure 3-9
Figure 3-10
10
