We provide a software add-on that enables it to be easily programmed from the Arduino environment, as well as an Arduino library to help interface with its on-board hardware. USB A to Micro-B cable (not included) is required [https://www.pololu.com/product/2072] to connect the A-Star 32U4 Robot Controller to a computer. 1. Overview Page 3 of 50...
, which allows it to be easily programmed using the [https://www.pololu.com/docs/0J66/7] Arduino IDE. For more information about programming the A-Star 32U4 Robot Controller, see Section The board also has a 6-pin ISP header that allows it to be programmed with an external programmer,...
Page 9
LED is connected to Arduino pin 17, or PB0, and lights when the pin is driven low. While the board is running the A-Star 32U4 Bootloader or a program compiled in the Arduino environment, it will flash this LED when it is receiving data via the USB connection.
USB bus voltage (VBUS) is present. Pushbuttons The A-Star 32U4 Robot Controller has four pushbuttons: a reset button on the right edge and three user pushbuttons located along the bottom edge of the main board. The user pushbuttons, labeled A, B, and C, are on Arduino pin 14 (PB3), PD5, and Arduino pin 17 (PB0), respectively. Pressing one of these buttons pulls the associated I/O pin to ground through a resistor.
Page 11

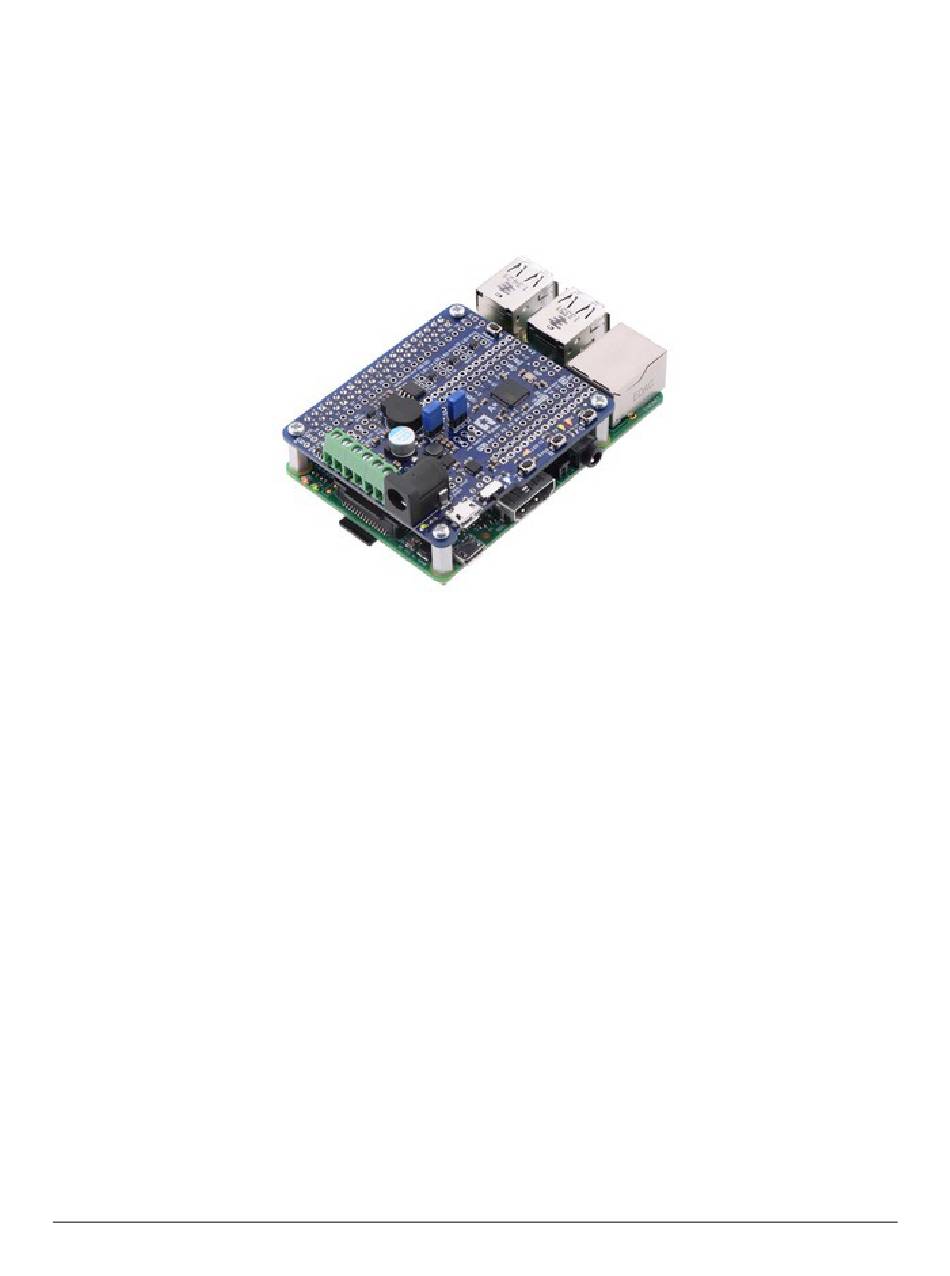

[https://www.pololu.com/product/965] or motor wires can be soldered directly to either set of holes. Driving motors with an A-Star 32U4 Robot Controller LV with Raspberry Pi Bridge on a Raspberry Pi Model B+ or Pi 2 Model B. Although the LV and SV versions of the robot controller use different driver ICs, the motor driver interface is identical between the two versions.
3.4. SV motor drivers The A-Star 32U4 Robot Controller SV features two Maxim MAX14870 motor drivers that can each deliver a continuous 1.7 A (2.5 A peak). The motor power supply is derived from an external source connected to the A-Star’s Power In terminals, which also feeds the on-board voltage regulator and...
3.5. Power The A-Star 32U4 Robot Controller can be powered from an external voltage source, which is regulated to 5 V by its on-board switching regulator; the provided voltage is also used to supply the motor drivers directly.
Page 15
5V regulator VIN supplies power to a 5 V regulator, whose output is designated VREG. The allowable input voltage range depends on the particular version of the A-Star 32U4 Robot Controller: • LV: 2.7 V to 11 V (see Section 3.6 for regulator details) •...
An ideal diode circuit on the A* makes it safe to have a different power supply connected to the Raspberry Pi (for example, through the Raspberry Pi’s USB Micro-B receptacle) while the A-Star 32U4 Robot Controller is connected and powered. (In other words, it is safe to have any combination of A- Star USB power, A-Star external power, and Raspberry Pi USB power connected to the system.) The...
Page 17
These currents represent the limit of the regulator’s capability and cannot be sustained 3. A-Star 32U4 Robot Controller with Raspberry Pi Bridge Page 17 of 50...
As can be seen in the graph below, the dropout voltage of the Robot Controller SV’s regulator increases approximately linearly with the output current. For light loads where the dropout 3. A-Star 32U4 Robot Controller with Raspberry Pi Bridge Page 18 of 50...
A-Star’s power switch is off before connecting it to a voltage source. 3.8. Raspberry Pi interface and level shifters The A-Star 32U4 Robot Controller with Raspberry Pi Bridge can be used as an expansion board on top of a Raspberry Pi single-board computer. It conforms to the Raspberry Pi HAT (Hardware...
Page 20
Raspberry Pi. 3. A-Star 32U4 Robot Controller with Raspberry Pi Bridge Page 20 of 50...
“WP” next to the EEPROM chip. (The EEPROM is not write-protected by default.) 3.9. Pinout These diagrams identify the I/O and power pins on the A-Star 32U4 Robot Controller with Raspberry Pi Bridge (LV and SV versions); they are also available (along with the power distribution diagram below)
Page 24
AREF and PD5. You can configure each bus separately by using a jumper to connect it to a voltage source of your choice. (Access points for various supply voltages are available nearby.) 3. A-Star 32U4 Robot Controller with Raspberry Pi Bridge Page 24 of 50...
4. Also, due to hardware limitations, some functions only work on a limited set of pins. The “A-Star 32U4 Robot Controller functions” column documents what the pin is used for on the A- Star 32U4 Robot Controller. Many pins can serve multiple purposes concurrently by switching modes.
Page 26
Free I/O Analog input (ADC6) A1, 19 Jumper to battery level input (VIN/3) JTAG test data out (TDO) UART receive pin (RXD1) Free I/O External interrupt source (INT2) 3. A-Star 32U4 Robot Controller with Raspberry Pi Bridge Page 26 of 50...
Page 27
JTAG test clock (TCK) A4, 22 Free I/O Analog input (ADC1) A5, 23 Free I/O Analog input (ADC0) RESET Reset pushbutton internally pulled high, active low AREF Analog reference 3. A-Star 32U4 Robot Controller with Raspberry Pi Bridge Page 27 of 50...
• Timer1 is used by the A-Star 32U4 Arduino library for driving motors. • Timer3 is not used by the A-Star 32U4 Arduino library and can be freely used for your own purposes. • Timer4 is used by the A-Star 32U4 Arduino library for controlling the buzzer. The Buzzer pin must be connected to the adjacent digital pin 6 (PD7;...
Service Pack 3, so we recommend Service Pack 3 over the hotfix. Before you connect your Pololu A-Star 32U4 (or another of our 32U4 family of boards) to a computer running Microsoft Windows, you should install its drivers: 1.
After installing the drivers and plugging in an A-Star, in the “Ports (COM & LPT)” category of the Device Manager, you should see a COM port for the A-Star’s running sketch named “Pololu A-Star 32U4”. You might see that the COM port is named “USB Serial Device” in the Device Manager instead of having a descriptive name.
Page 33
URL on a new line. Adding a Boards Manager index for Pololu boards in the Arduino IDE’s Preferences dialog. 3. Click the “OK” button to close the Preferences dialog.
Page 34
7. After the installation finishes, click the “Close” button to close the Boards Manager dialog. 8. In the Tools > Board menu, select the “Pololu A-Star 32U4” entry. If you do not see your device listed in the Board menu, try restarting the Arduino IDE.
[https://pololu.github.io/a- star-32u4-arduino-library/] If you are using the A-Star 32U4 Robot Controller as a Raspberry Pi add-on, you might also want to make use of our Raspberry Pi slave library for Arduino [https://github.com/pololu/pololu-rpi-slave-arduino- , which sets up the A-Star as an I²C slave and helps establish communication with a Raspberry library] Pi master.
On a Windows computer, you can see the virtual serial port by going to your computer’s Device Manager and expanding the “Ports (COM & LPT)” list. You should see a COM port labeled “Pololu A- Star 32U4”. In parentheses after the name, you will see the name of the port (e.g. “COM3” or “COM4”).
The A-Star 32U4 Bootloader has different startup logic that allows you to use the RST line to reset the board with a smaller delay. If the RST line goes low once, the user program will run after a 750 ms delay.
8. Reviving an unresponsive A-Star In order to load a new program onto your A-Star 32U4 device, you will need to get it into bootloader mode and send programming commands to it over its virtual serial port using appropriate software. If...
Page 47
1. Connect the device to your computer via USB. 2. In the “Tools” menu, open the “Board” sub-menu and check to see if the “Pololu A-Star 32U4 (bootloader port)” entry is visible. If this entry is visible, you can skip to step 6.
Blink example that can be found under File > Examples > 01.Basics > Blink. After reviving your device, be sure to change the Board setting back to “Pololu A-Star 32U4” and select the right Port.
Page 49
AVRDUDE stands for “AVR Downloader/UploaDEr”, and it is compatible with the A-Star bootloader. If you have an A-Star 32U4 Micro, you should connect a momentary pushbutton between the GND and RST pins to serve as a reset button. Other [https://www.pololu.com/product/1400]...
• AVRDUDE [http://www.nongnu.org/avrdude/] • AVR Freaks [http://www.avrfreaks.net/] Datasheets for some of the components found on the A-Star 32U4 boards are available below (not all components apply to every board): • Texas Instruments TPS2113A power multiplexer datasheet [https://www.pololu.com/file/ (1MB pdf) 0J771/tps2113a.pdf] •...
