AGREX KYLO System Operator's Manual

Computer pfi

Advertisement

Y
K
LO System
::
Computer PF I
Operator Manual
Cod. SPREADER.ENG.01.2012
Translation of the original instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KYLO System and is the answer not in the manual?

Questions and answers

Summary of Contents for AGREX KYLO System

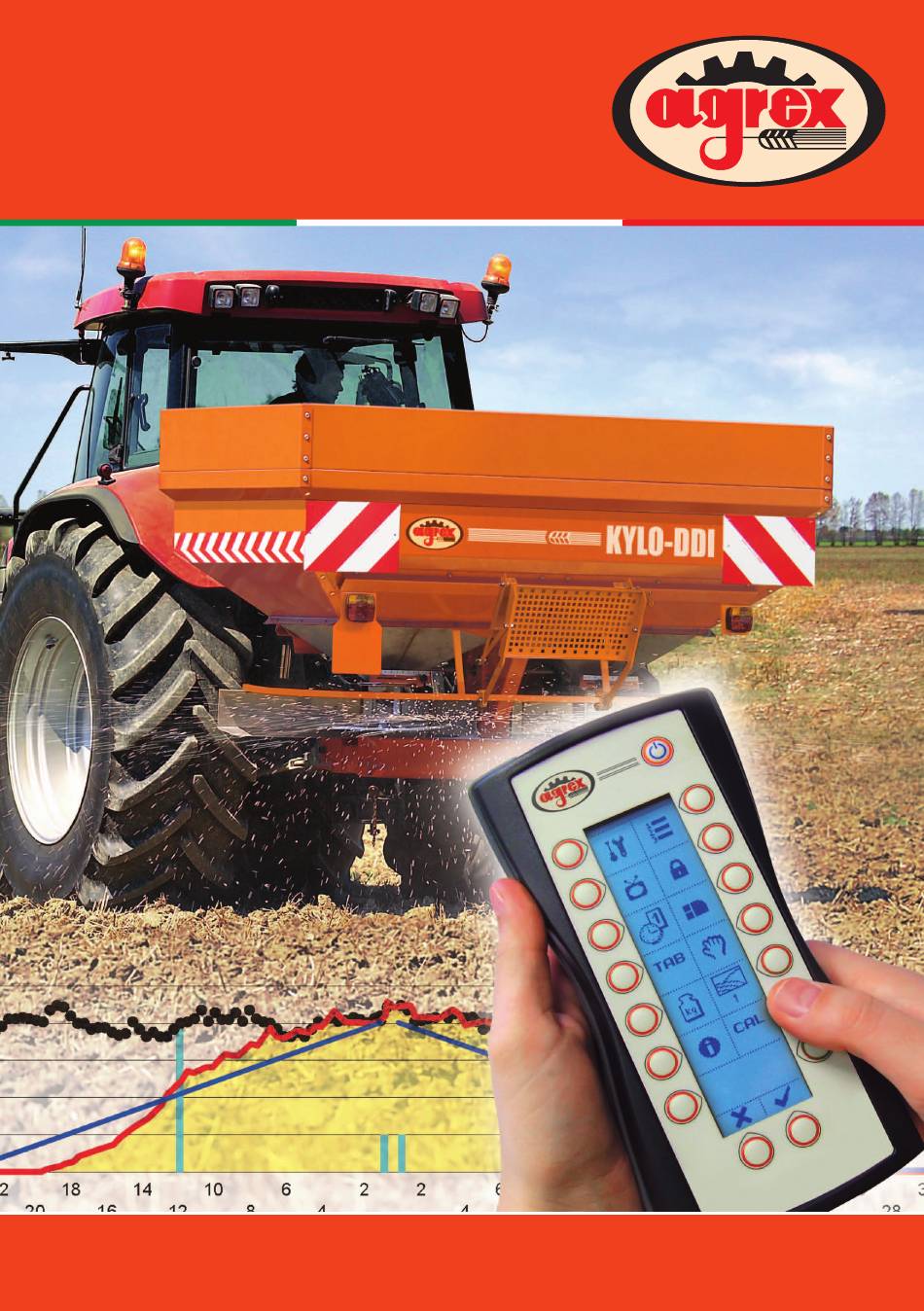

  • Page 1 LO System Computer PF I Operator Manual Cod. SPREADER.ENG.01.2012 Translation of the original instructions...
  • Page 2 To transport the appliance, use the original packaging material • Do not dispose of this product together with generic household waste • This product must be disposed of in compliance with local authority regulations © AGREX S.p.A. 2 di 56...
  • Page 3: Table Of Contents

    Fertilizer calibration ..............38 Calibration procedure............. 41 Fertilizer Settings ............... 42 Unit of Measurement [3] ..............42 Tractors [4] ..................43 Speed calibration procedure ............. 43 Tractor Settings ................. 44 Alarm Options [5] ................46 © AGREX S.p.A. 3 di 56...
  • Page 4 Clock [8] ..................48 Interface Options [9] ............... 49 Reserved Area [10] ................. 49 Back to Main Menu [11] ..............49 Display Operating Page [7] ..............49 USING THE MACHINE ..................50 CONNECTIONS ....................52 © AGREX S.p.A. 4 di 56...
  • Page 5: Conventions

    The notes contain important information, the whole or partial inobservance of which could lead the appliance to behave other than as desired and/or generate risk situations DESCRIPTION OF SYSTEM FRONT PANEL 1. DISPLAY 2. ON/OFF BUTTON 3. OPERATING BUTTONS 4. CONNECTOR © AGREX S.p.A. 5 di 56...
  • Page 6: Main Functions

    Using the side buttons The side buttons perform the functions defined by the icons displayed alongside each button. According to the page, the buttons switch to other pages, perform commands, enter parameter values, etc. © AGREX S.p.A. 6 di 56...
  • Page 7: Description Of Functions

    OPEraTOr icon. inSPECTing MaCHinE. Once confirmation of start-up has been given, the pages described below will be displayed depending on the operating mode selected. © AGREX S.p.A. 7 di 56...
  • Page 8: Operating Page: Automatic Mode

    Given the delicacy of the calibration operation, AUTO mode is recommended only in the case of fields with flat even ground. JOB NUMBER OPERATING MODE JOB NAME HOPPER STATUS INFORMATION SETTINGS STOP START/PAUSE MENU The page is divided into sections displaying data and/or commands. © AGREX S.p.A. 8 di 56...
  • Page 9 THE SYSTEM IS SPREADING 10% LESS THAN THE NOMINAL AMOUNT PER HECTARE THE SYSTEM IS SPREADING 10% MORE THAN THE NOMINAL AMOUNT PER HECTARE • Right and left gate opening status: BOTH GATES OPEN © AGREX S.p.A. 9 di 56...
  • Page 10 Weight of fertilizer in hopper For models with weighing system, the weight actually measured by the system is displayed. For models without weighing system, the weight is determined according to the amount loaded (see © AGREX S.p.A. 10 di 56...
  • Page 11 When the amount to be spread per hectare is increased or decreased, as well as indicating the percentage increase or decrease in the HOPPER STATUS section (see point 4 above), the icon corresponding to the increase or decrease is displayed on a dark background ( © AGREX S.p.A. 11 di 56...
  • Page 12 © AGREX S.p.A. 12 di 56...
  • Page 13: Operating Page: Semi-Automatic Mode

    The operator stops the machine and presses the corresponding button to enable calibration. JOB NUMBER OPERATING MODE JOB NAME HOPPER STATUS INFORMATION SETTINGS STOP START/PAUSE MENU The page is divided into sections displaying data and/or commands. © AGREX S.p.A. 13 di 56...
  • Page 14 THE SYSTEM IS SPREADING 10% LESS THAN THE NOMINAL AMOUNT PER HECTARE THE SYSTEM IS SPREADING 10% MORE THAN THE NOMINAL AMOUNT PER HECTARE • Right and left gate opening status: BOTH GATES OPEN RIGHT GATE CLOSED © AGREX S.p.A. 14 di 56...
  • Page 15 For models with weighing system, the weight actually measured by the system is displayed. For models without weighing system, the weight is determined according to the amount loaded (see the Fertilizer Filling section in the Main Menu) and the gate settings. © AGREX S.p.A. 15 di 56...
  • Page 16 When the amount to be spread per hectare is increased or decreased, as well as indicating the percentage increase or decrease in the HOPPER STATUS section (see point 4 above), the icon corresponding to the increase or decrease is displayed on a dark background ( © AGREX S.p.A. 16 di 56...
  • Page 17 • After stopping the machine, press the button corresponding to the icon to perform calibration or stop spreading by pressing the button corresponding to the icon. The machine must be stationary before performing calibration. © AGREX S.p.A. 17 di 56...
  • Page 18 If calibration is not performed correctly, a number of diagnostic messages are displayed indicating that the machine should be stopped, the presence of an error which has invalidated calibration, or cancellation of the procedure by the operator. © AGREX S.p.A. 18 di 56...
  • Page 19 © AGREX S.p.A. 19 di 56...
  • Page 20: Operating Page: Speed Mode

    The gate opening required to spread the set amount is determined for each fertilizer by calibration. JOB NUMBER OPERATING MODE JOB NAME HOPPER STATUS INFORMATION SETTINGS STOP START/PAUSE MENU The page is divided into sections displaying data and/or commands. © AGREX S.p.A. 20 di 56...
  • Page 21 THE SYSTEM IS SPREADING 10% LESS THAN THE NOMINAL AMOUNT PER HECTARE THE SYSTEM IS SPREADING 10% MORE THAN THE NOMINAL AMOUNT PER HECTARE • Right and left gate opening status: BOTH GATES OPEN RIGHT GATE CLOSED © AGREX S.p.A. 21 di 56...
  • Page 22 For models with weighing system, the weight actually measured by the system is displayed. For models without weighing system, the weight is determined according to the amount loaded (see the Fertilizer Filling section in the Main Menu) and the gate settings. © AGREX S.p.A. 22 di 56...
  • Page 23 COMMANDS • The buttons alongside the icons increase or decrease respectively the amount of fertilizer to be spread per hectare with respect to the nominal value set in the job. © AGREX S.p.A. 23 di 56...
  • Page 24 © AGREX S.p.A. 24 di 56...
  • Page 25: Operating Page: Manual Mode

    In manual mode, the operator uses the commands described below to define gate opening and thus the amount of fertilizer to be spread. JOB NUMBER OPERATING MODE JOB NAME HOPPER STATUS INFORMATION SETTINGS STOP START/PAUSE MENU The page is divided into sections displaying data and/or commands. © AGREX S.p.A. 25 di 56...
  • Page 26 BOTH GATES OPEN RIGHT GATE CLOSED LEFT GATE CLOSED BOTH GATES CLOSED COMMANDS • The buttons alongside modify the opening status of the right and left gates, by closing/ selecting the edge function/re-opening the gates. © AGREX S.p.A. 26 di 56...
  • Page 27 Hectares spread: surface area of land fertilized during the current work session; • Metres covered: linear metres covered during the current work session. COMMANDS • The buttons alongside switch from one section to another. © AGREX S.p.A. 27 di 56...
  • Page 28 © AGREX S.p.A. 28 di 56...
  • Page 29: Main Menu

    The main menu is divided into sub-menus identified by the series of icons in the figure below. Work Preferences Work settings (Job) Rapid emptying Fertilizer Filling Messages and alarms Advanced Settings Display Operating Page Pressing the buttons alongside the icons displays the sub-menus.. © AGREX S.p.A. 29 di 56...
  • Page 30: Pwork Preferences [1]

    3 seconds, after which time the system displays the previous page. • The buttons alongside the icons display a page where you can configure the values to be assigned to the parameter: • © AGREX S.p.A. 30 di 56...
  • Page 31: Work Settings (Job) [2]

    • JOB NUMBER; • JOB NAME; • SALIENT JOB SETTINGS; • SPREADING WIDTH; • KG PER HECTARE TO SPREAD; • SALIENT JOB STATISTICS • KG OF FERTILIZER SPREAD • HECTARES SPREAD • HOURS WORKED © AGREX S.p.A. 31 di 56...
  • Page 32: Salient Job Statistics

    FERTILIZER NAME: name of fertilizer used for the selected job; • FLOW FACTOR: fertilizer flow modulation factor; aMOUnT Kg COMMANDS • The buttons alongside the icon display a page where you can enter FErTiL naME strings of characters: FLOW FaCTOr © AGREX S.p.A. 32 di 56...
  • Page 33 Holding it down cancels the entire value. After entering the value, press the button alongside the icon to confirm and exit the menu or the button corresponding to the icon to exit the menu without confirming. © AGREX S.p.A. 33 di 56...
  • Page 34: Rapid Emptying [3]

    ADD WEIGHT page where you can enter numbers using the icons alongside the numbers and decimal point. Enter the weight of the fertilizer to be added to that already present in the machine. © AGREX S.p.A. 34 di 56...
  • Page 35: Machines With On-Board Weighing System

    TOTAL FERTILIZER: total weight of fertilizer present in the machine. TOTaL FErTiLiZEr COMMANDS • The button alongside the icon resets the weight present in the hopper; • The button under the icon goes back to the previous menu. © AGREX S.p.A. 35 di 56...
  • Page 36: Messages And Alarms [5]

    The Advanced Settings menu is divided into sub-menus identified by the series of icons in the figure below. Diagnostics Fertilizers Units of measurement Tractors Alarm options Weighing functions System information Clock Interface options Reserved area Back to Main Menu The buttons alongside the icons display the respective sub-menus. © AGREX S.p.A. 36 di 56...
  • Page 37: Diagnostics [1]

    • PROX.: Status of the proximity sensors detecting rotation; SPEEd • PAGE NUMBER/TOTAL PAGES. • COMMANDS (page 2) • The button alongside the icon displays the previous page; • The button under the icon goes back to the previous menu. © AGREX S.p.A. 37 di 56...
  • Page 38: Fertilizers [2]

    This function is useful if one operator is responsible for defining the calibration parameters and will therefore use the ADVANCED view and another operator will be performing calibration in SIMPLE mode only. © AGREX S.p.A. 38 di 56...
  • Page 39 (Min>Max) or vice versa (Max>Min); CaLiBr. dirECTiOn • EMPTYING: the opening used during the calibration procedure >M (hopper to which the emptying hose is attached, the right hopper in EMPTYing the page alongside); rigHT • PAGE NUMBER/TOTAL PAGES. © AGREX S.p.A. 39 di 56...
  • Page 40 The button under the icon launches a guided procedure enabling the calibration parameters for the selected fertilizer to be stored. In the case of calibration in SIMPLE mode, the above parameters are not displayed. © AGREX S.p.A. 40 di 56...
  • Page 41: Calibration Procedure

    After a pause, the button alongside icon resumes the procedure. • The button under the icon exits the procedure without saving the data (as confirmed by the diagnostic message following cancellation of the procedure). © AGREX S.p.A. 41 di 56...
  • Page 42: Fertilizer Settings

    3 seconds, after which time the system displays the previous page. • The button under the icon goes back to the previous menu. Unit of Measurement [3] Display and selection of the units of measurement used. © AGREX S.p.A. 42 di 56...
  • Page 43: Tractors [4]

    ) , follows the instructions described in the procedure itself, drives the tractor forwards for exactly 100 m, stops the tractor and presses At the end of the procedure, a message informs the operator that calibration has been completed correctly. © AGREX S.p.A. 43 di 56...
  • Page 44: Tractor Settings

    (+ - %, .) in the string. After entering the string of characters, press the button alongside the icon to confirm and exit the menu or the button corresponding to icon to exit the menu without confirming. © AGREX S.p.A. 44 di 56...
  • Page 45 • The button under the icon goes back to the previous menu; • The button under the icon displays the operating page. © AGREX S.p.A. 45 di 56...
  • Page 46: Alarm Options [5]

    The partial weight is displayed below the total weight. • The button under the icon goes back to the previous menu. • The button under the icon displays the operating page. © AGREX S.p.A. 46 di 56...
  • Page 47: System Information [7]

    USED REC: record of memory used; • TOTAL REC: record of total memory; • PAGE NUMBER/TOTAL PAGES. COMMANDS (page 3): MEMORY • The button alongside the icon displays the previous page; • The button under the icon goes back to the previous menu. © AGREX S.p.A. 47 di 56...
  • Page 48: Clock [8]

    3 seconds, after which time the system displays the previous page. • The button alongside the icon displays the previous page; • The button under the icon goes back to the previous menu. © AGREX S.p.A. 48 di 56...
  • Page 49: Interface Options [9]

    Menu containing diagnostic data useful to the manufacturer Back to Main Menu [11] The button under the icon goes back to the Main Menu. Display Operating Page [7] The button under the icon displays the operating page. © AGREX S.p.A. 49 di 56...
  • Page 50: Using The Machine

    Here you can select the job to be performed by pressing the button alongside the icon and selecting the job from the list of those set (see Job Settings). © AGREX S.p.A. 50 di 56...
  • Page 51 When the edge kit is installed, in SPEED, SEMI and AUTO modes, the buttons alongside the graphic representation of the machine close (and subsequently re-open) the gates and activate the “edge” function. EXAMPLE: EDGE FUNCTION ACTIVATED ON THE RIGHT © AGREX S.p.A. 51 di 56...
  • Page 52: Connections

    Computer PFI - Operator Manual CONNECTIONS Connections diagram not in scale © AGREX S.p.A. 52 di 56...
  • Page 53 NOTE: SPEED CAN ALSO BE DETECTED BY: • GPS DEVICE; • SIGNAL FROM ISO 11786 CONNECTOR MAIN WIRING CONNECTING THE SYSTEMS SENSOR AND ACTUATOR CONTROL MODULE ACTUATORS WEIGHING SYSTEM CONTROL MODULE WITH LOADING CELL (OPTIONAL) © AGREX S.p.A. 53 di 56...
  • Page 54 NOTE: © AGREX S.p.A. 54 di 56...
  • Page 55 NOTE: © AGREX S.p.A. 55 di 56...
  • Page 56 AGREX S.p.A. Production & Sales Dept: Via Balla, 55/57 (Loc. Taggì di Sotto) 35010 Villafranca Padovana (PD) - ITALIA Tel. +39 049 50 00 000 Fax. +39 049 90 75 524 E-mail: info@agrex.com Web Site: www.agrex.com...
