Dynojet POWER COMMANDER V Installation Instructions page 4

FIG.D
FIG.E
FIG.F
25-013 www.powercommander.com

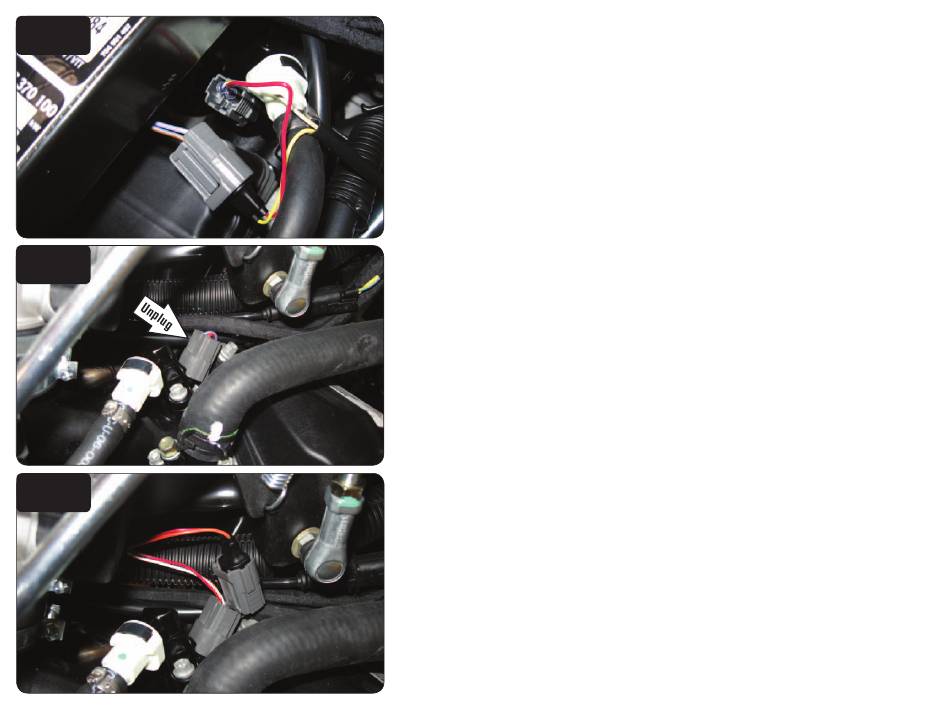

6 Plug the YELLOW colored wires from the PCV in-line of the stock wiring
harness and the rear fuel injector (Fig. D).
7 Unplug the stock wiring harness from the front fuel injector (Fig. E).
8 Route the ORANGE colored wires from the PCV to the left hand side of the
throttle body and go towards the front fuel injector.
9 Plug the pair of PCV leads with ORANGE colored wires in-line of the stock
wiring harness and the front fuel injector (Fig. F).
2006-2016 Can-Am Outlander 650 - PCV - 4
