Assembly Instructions
SMARTCASE S520

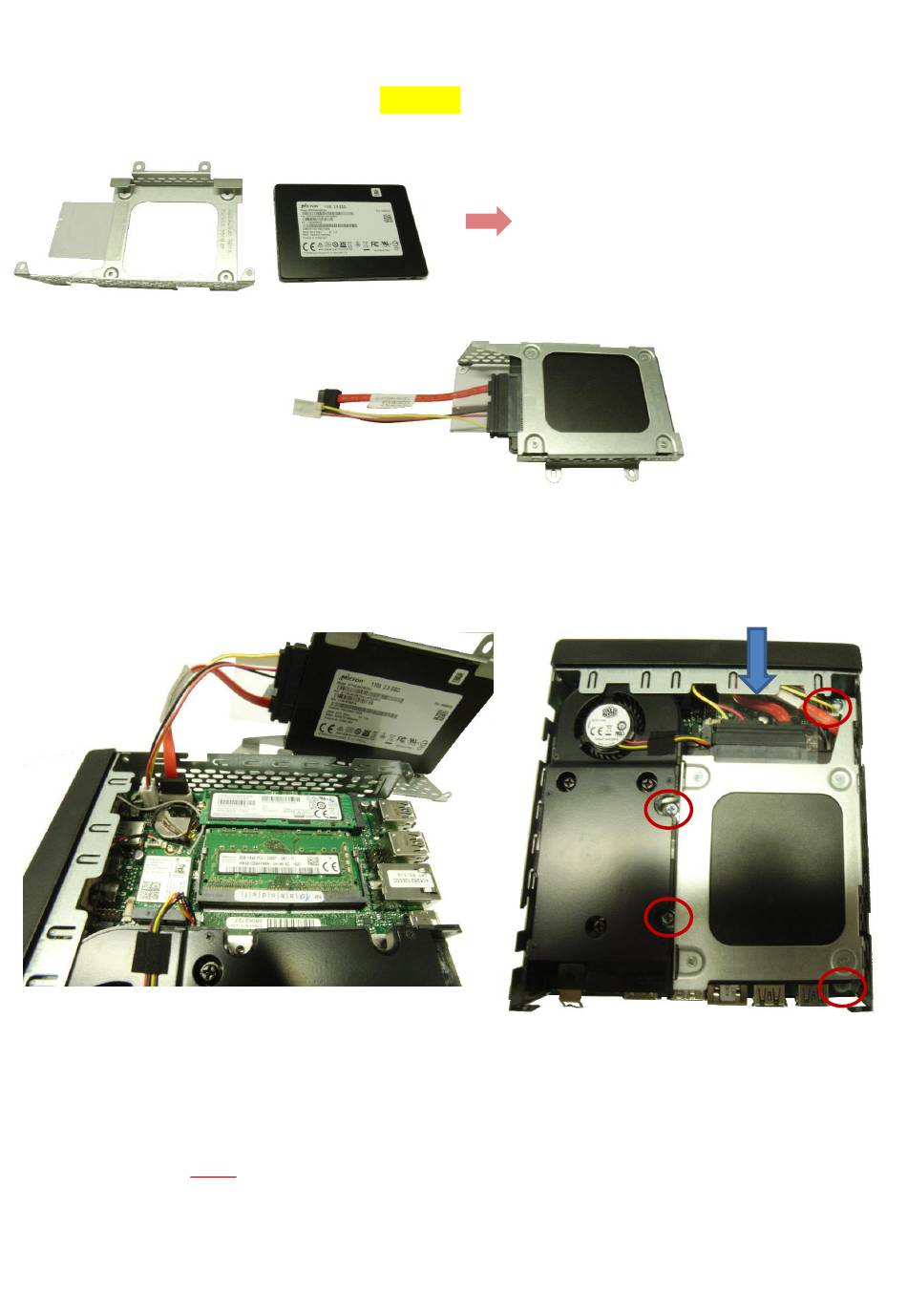

Step 5 Installing optional HDD Tray [updated]

Plug the SATA and power cable to the onboard connectors. Then insert the HDD Tray carefully into the chassis and
assemble the four screws (M3x4.5; red marked).
NOTE: Consider the (optionally) installed WLAN antenna cables when installing the HDD Tray. The protection foil of
the HDD-Tray has to be below the chassis metal (blue arrow) to protect the cables when closing the chassis.
__________________________________________________________________________________________________________________________________________________________
Page 8 of 12
Install the SSD into the tray with four M3x3.5 srews
(0.25Nm)
and plug in the SATA/Power connectors.
V1.1 - 07/2019
www.fujitsu.com
