Assembly Instructions
SMARTCASE S520

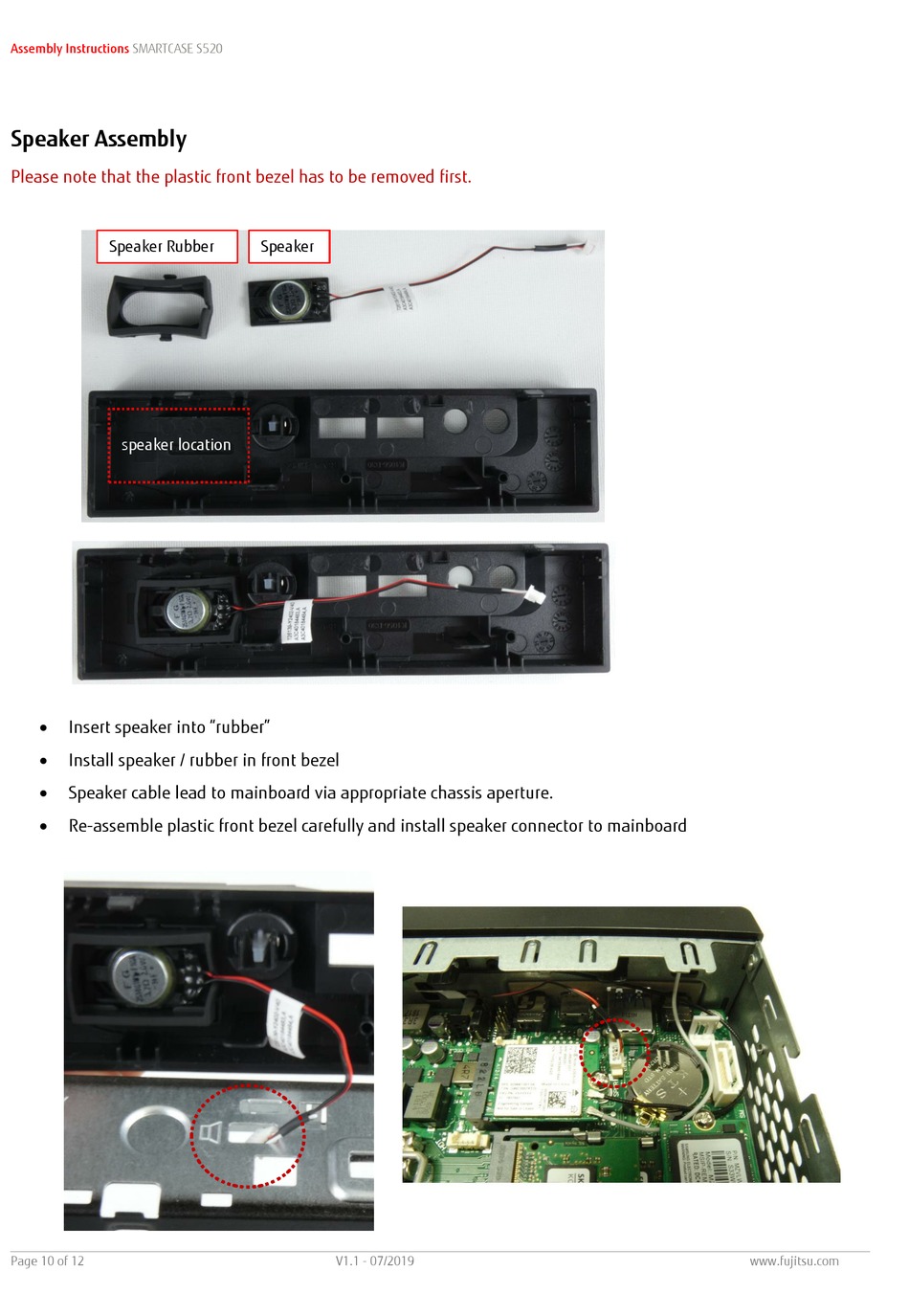

Speaker Assembly

Please note that the plastic front bezel has to be removed first.
Speaker Rubber
speaker location
Insert speaker into "rubber"
Install speaker / rubber in front bezel
Speaker cable lead to mainboard via appropriate chassis aperture.
Re-assemble plastic front bezel carefully and install speaker connector to mainboard
__________________________________________________________________________________________________________________________________________________________
Page 10 of 12
Speaker
V1.1 - 07/2019
