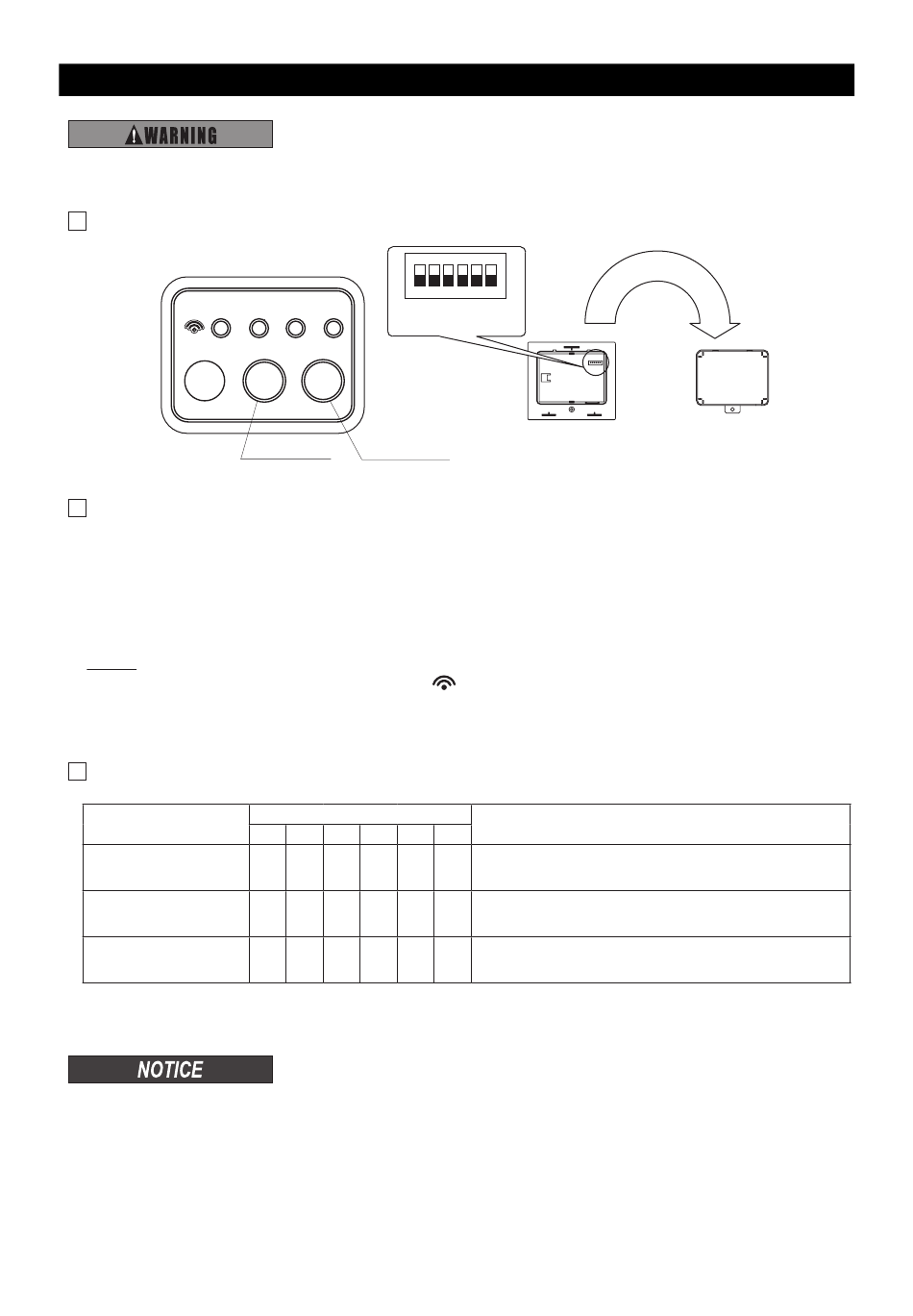

4. Optional Functions

Turn OFF the power source completely before setting the DIP switch for an IR receiver kit.
Not doing so may cause an electric shock.
The following switches are on the IR receiver kit.
1
TIMER
Emergency Operation Setting
2
"COOL" and "HEAT" buttons are used for an emergency operation when the batteries for the wireless
controller are low.
(1) "COOL" Button: Press "COOL" so that the cooling operation is started.
(2) "HEAT" Button: Press "HEAT" so that the heating operation is started.
NOTE:
During an emergency operation, a yellow light "
The temperature set-point and the fan speed for the cooling/heating operation are the same as before
starting an emergency operation.
The DIP switch (DSW1) is for an optional function selection. If an optional function selection is required,
3
set the DIP switch as follows.
Optional Function
Main/Sub Setting
Identification of
Indoor Unit
Invalid
Emergency Operation
O: ON
X: OFF
Review the following optional function settings when a function for the IR receiver kit is selected from the
wireless controller or the centralized controller.
● The optional functions "Cooling Lower Limit for Setting Temperature" and "Heating Upper Limit for Setting
Temperature" are not available with the wireless controller.
● The optional function setting "Fixing of Setting Temperature" is not available. When the operation mode is
changed from the wireless controller, the indicated temperature on the wired controller becomes the set
temperature of the wireless controller.
ON
DIP Switch (DSW1)
FILTER DEF RUN
(Factory Setting)
EMERGENCY
HEAT COOL
"HEAT" Button "COOL" Button
Press "COOL" again so that the cooling operation is stopped.
Press "HEAT" again so that the heating operation is stopped.
DIP Switch Setting (DSW1)
1 2 3 4 5
O X X X X
X O X X X
X X X O X
1 2 3 4 5 6
PCB
Rear Side of IR Receiver Kit
" flashes (0.5 second ON/0.5 second OFF).
6
Change main (OFF setting)/ sub (ON setting) wireless
X
controller for a two-wireless controller system.
It functions as B Mode (identifying the indoor unit) of
X
the wireless controller when it sets to "ON".
X The switches for emergency operation are invalid.
