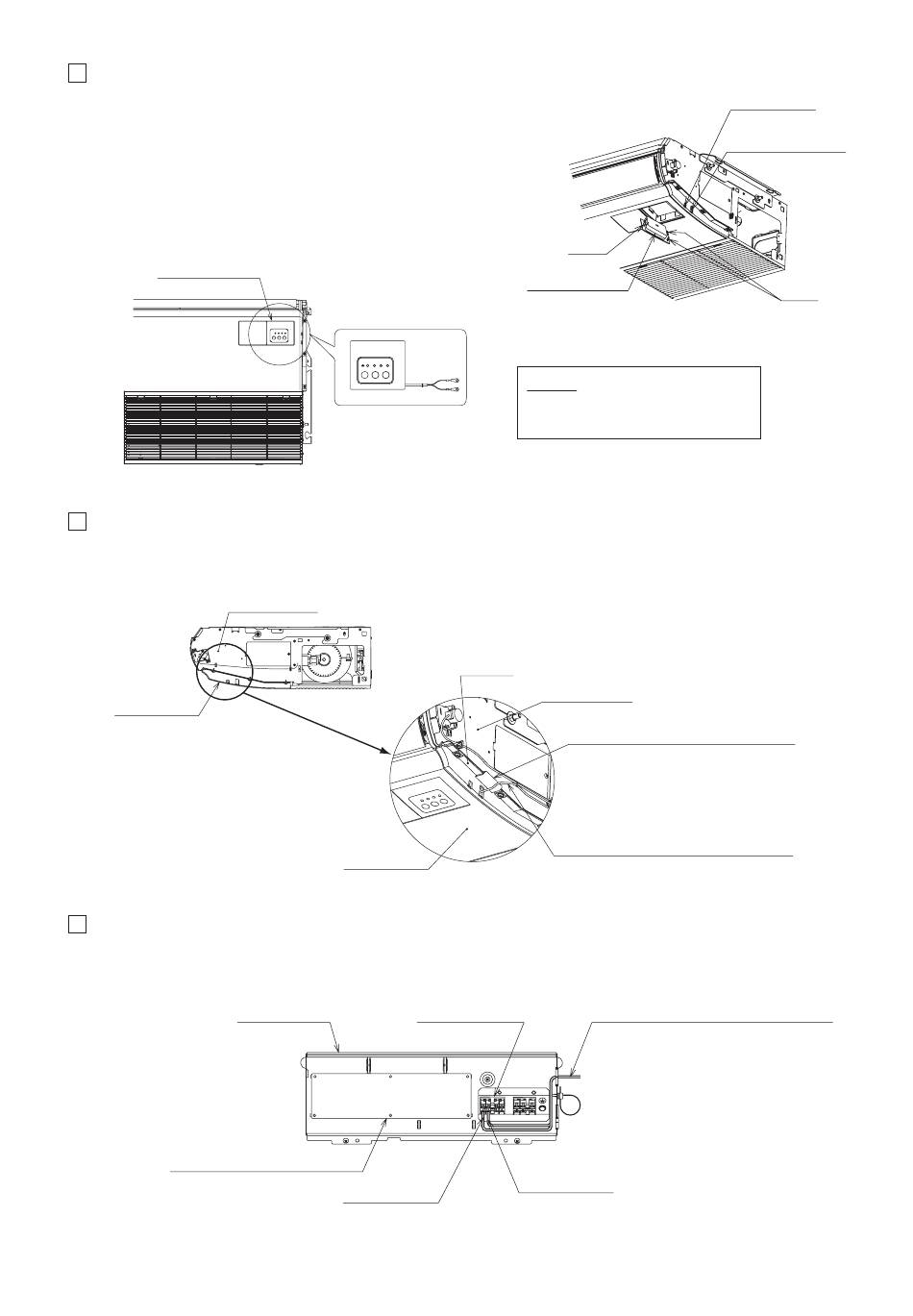

Attach the IR receiver kit to the lower cover.
5
(1) Insert the IR receiver kit and the connecting cable in
the position for the IR receiver kit.
(2) Lead the connecting cable through the opening for the
connecting cable.
(3) Catch the three hooks of the IR receiver kit onto the
square holes.
Pay attention to the direction of the IR receiver kit
when it is attached.
IR Receiver Kit
Lead the connecting cable into the electrical box with other wires.
6
Attach the accessory insulation to the edge of the side cover (R) in order to prevent scratches by
contacting the connecting cable to the edge of the side cover (R).
Side Cover R
Lower Cover
Remove the electrical box cover. Connect the connecting cable to the terminals A and B at the terminal
7
block for the controller as shown in the figure. (There is no polarity between terminals A and B.)
Electrical Box
Printed Circuit Board (PCB1)
Attaching Direction
for IR Receiver Kit
TIMER FILTER DEF RUN
EMERGENCY
HEAT COOL
Flange
Lower Cover
Terminal Block
for Controller
Mark Band "A"
7
Hook
IR Receiver Kit
NOTE:
Check whether the IR receiver
kit is securely attached.
Side Cover R
Insulation
Put the side cover R and the flange
at lower cover between insulations.
Connecting Cable for IR Receiver Kit
Connecting Cable for IR Receiver Kit
Mark Band "B"
Service Opening
Opening for
Connecting Cable
Hooks
