Maintenance - MULTIQUIP J36E2 Operation Manual

Item
V-Belt
Relube Trowel Arms
Blades
Trowel Arms
Thrust Collar/Bushing
Blade Arms
Arm Bushing
Wear Ring
Thrust Collar Bearing
Pitch Control Cable
General maintenance practices are crucial to the
performance and longevity of your trowel. This equipment
requires routine cleaning, blade and trowel arm inspection,
lubrication, and V-belt inspection for wear and damage.
Refer to Table 4 for scheduled trowel maintenance.
The following maintenance procedures can prevent serious
trowel damage or malfunction.
WARNING
ALWAYS disconnect power from the electric motor
before performing maintenance on the trowel.
WARNING
NEVER place hands or feet inside the guard rings while
the electric motor is running.
GENERAL CLEANLINESS
Clean the trowel daily. Remove all dust and slurry buildup.
If the trowel is steam cleaned, ensure that lubrication is
performed AFTER steam cleaning.
ELECTRIC MOTOR
The electric motor bearing is prelubricated. No further
lubrication or maintenance is required.
J36E2 ELECTRIC WALK-BEHIND TROWEL • OPERATION MANUAL — REV. #3 (08/26/19) — PAGE 21

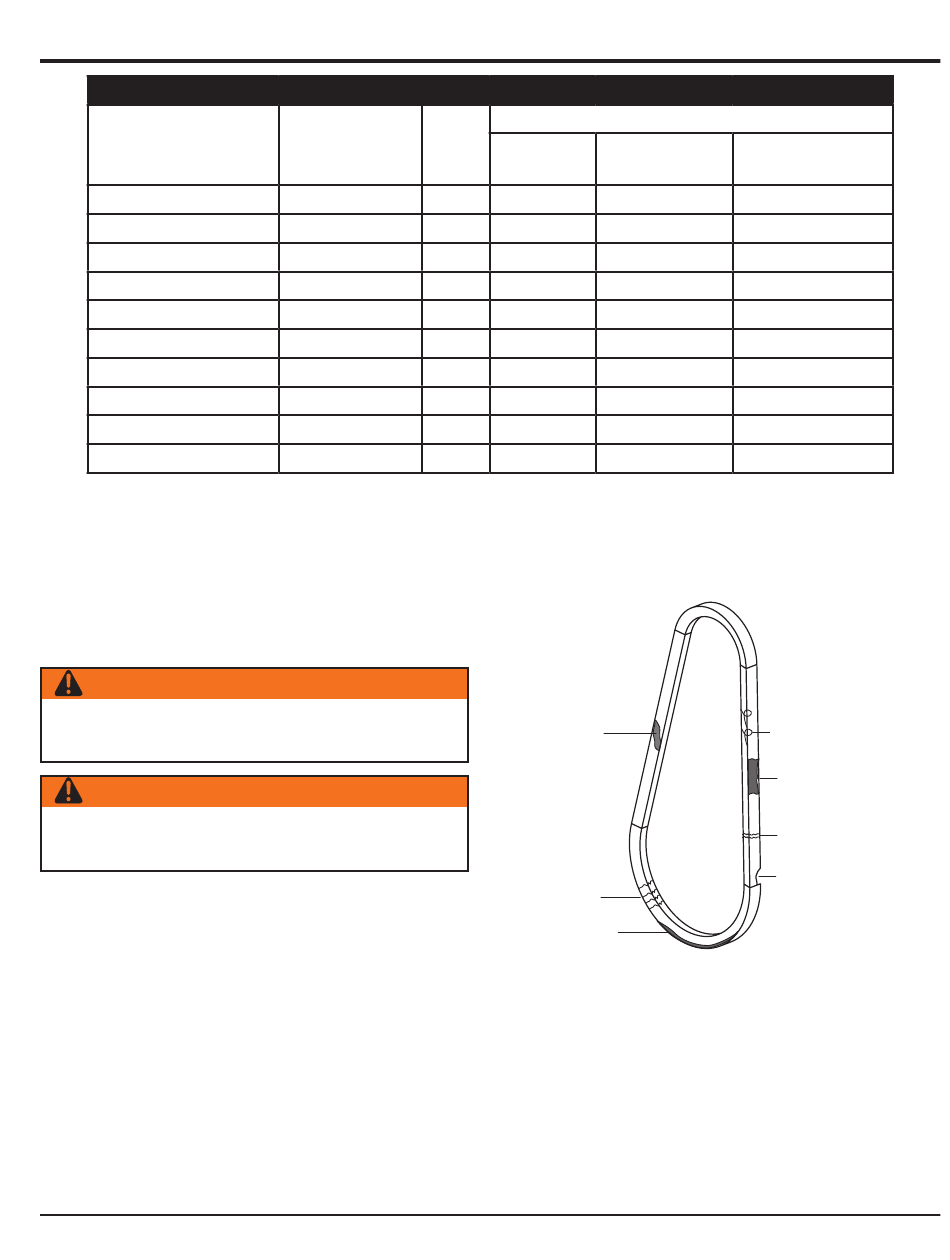

Table 4. Trowel Maintenance Schedule
Operation Daily
Check/Replace X
Grease X
Check/Replace
Remove/Clean
Remove/Clean
Adjust
Remove/Replace
Remove/Replace
Remove/Replace
Check
Periodic Maintenance Interval
Every Every
50–60 Hrs. 200–300 Hrs.
X
X
X
X
V-BELT
1. Inspect the V-belt (Figure 19) to determine if it is frayed,
peeling, full of tiny cracks, has pieces of rubber missing,
or is otherwise damaged.
GLAZED
CRACKS
SIDEWALL
WEAR
Figure 19. V-Belt Inspection
2. Inspect the V-belt (Figure 19) to determine if it is
oil-soaked or glazed (a hard, shiny appearance on the
sides of the belt). Either of these conditions can cause
overheating of the belt, which can weaken the belt and
increase the possibility of it breaking.
3. If the V-belt exhibits any of the above wear conditions
replace the V-belt immediately.

MAINTENANCE

Every
2000–2500 Hrs.
X
X
X
X
CORD FAILURE
WORN BACK
COVER
BROKEN
MISSING RUBBER
