INSTALLATION
12a
12b

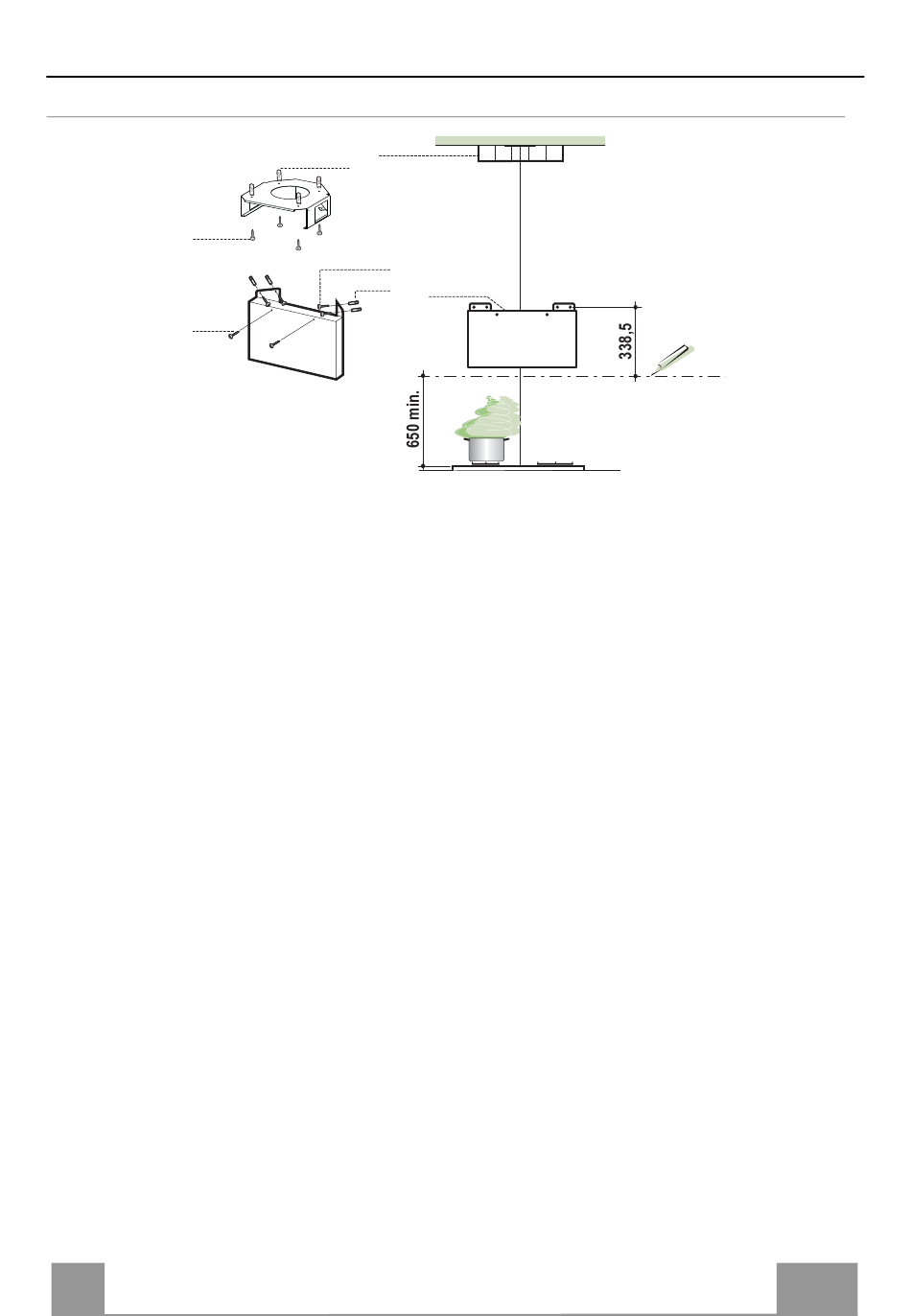

Do the following marking on the wall:
• a horizontal line at minimum 650 mm above the hob.
• As indicated, place the support fixing piece of the hood 7.2 at 338,5 mm above the horizon-
tal reference line.
• Mark the centres of holes in the support.
• Drill ø 8 mm.
• Insert the dowels 11 into the holes.
• Fix the support using the screws 12a (4,2 x 44,4) supplied.
• Insert and screw two screws 12b (4,2 x 12,7) (supplied) into the holes for the hood body fix-
ing, placed in the frontal part of the support fixing piece leaving a 5-6 mm distance between
the support and the screw head.
• As indicated, place the upper chimney support 7.4 at the corner of the ceiling.
• Mark the centres of holes in the upper chimney support 7.4.
• Drill ø 8 mm.
• Insert the dowels 11 into the holes.
• Fix the upper chimney support using the screws 12a (4,2 x 44,4) supplied.
N.B. In case of impossibility to install the Upper chimney support 7.4. to the ceiling, it's pos-
sible to do that lower, using the 4 Back holes instead of the Uppers.
To install the hood in recycling version it is necessary to follow the instructions described
in the part concerning Recirculation version Air Outlet.
EN
Drilling the wall and fixing the brackets
7.4
11
12a
11
7.2
