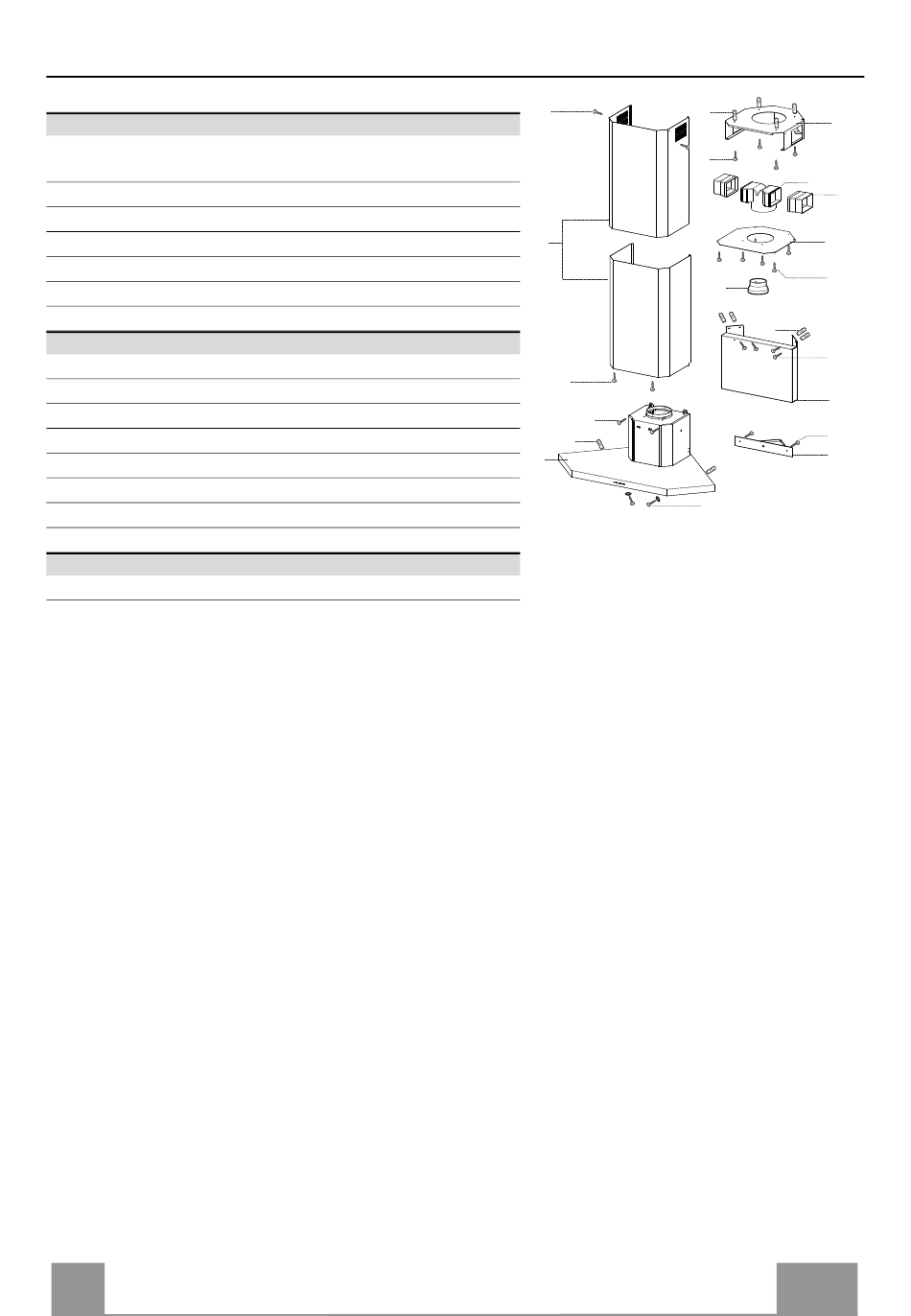

CHARACTERISTICS
Ref. Q.ty Product components
1 1 Cooker hood complete with control unit, lights, blower
unit, filters
2 1 Telescopic chimney comprised of:
2.1 1 upper chimney
2.2 1 lower chimney
9 1 reducer flange ø 150-120 mm
14.1 2 air outlet connection extension
15 1 air outlet connection
Ref. Q.ty Installation components
7.1 1 Lower corner spacer
7.2 1 Hood fixing support piece
7.3 1 Air outlet connection support piece
7.4 1 Upper chimney support piece
11 10 Wall plugs ø 8
12a 10 Screws 4,2 x 44,4
12b 2 Screws 4,2 x 12,7
12c 12 Screws 2,9 x 9,5
Q.ty Documentation
1 Instruction booklet
EN
Components
12c
11
12a
2.1
2
2.2
12c
12b
11
1
12a
7.4
15
14.1
7.3
12c
9
11
12a
7.2
12c
7.1
7
7
