Videofied Indoor MotionViewer IMV 200 Product Installation Sheet

P R O D U C T
Product Summary

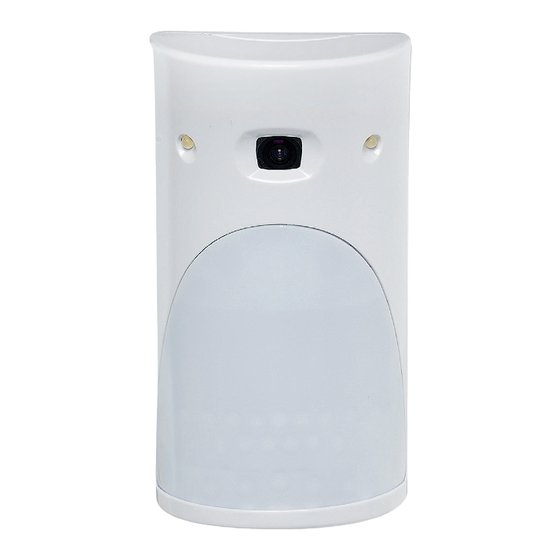

The MotionViewer IMV 200/601/701 is a wireless,
indoor motion activated camera designed for
use in a Videofied security system. The camera
includes the following features:
> Lithium batteries for long life
> Color Day / B&W night
> Wide angle lens
> Infrared LEDs for night illumination
> Standard motion coverage lens (30 ft./9 m
distance)
> Dual tamper function provides detection of
both wall and cover tamper.
> Transmits check-in/status signal every 8 minutes

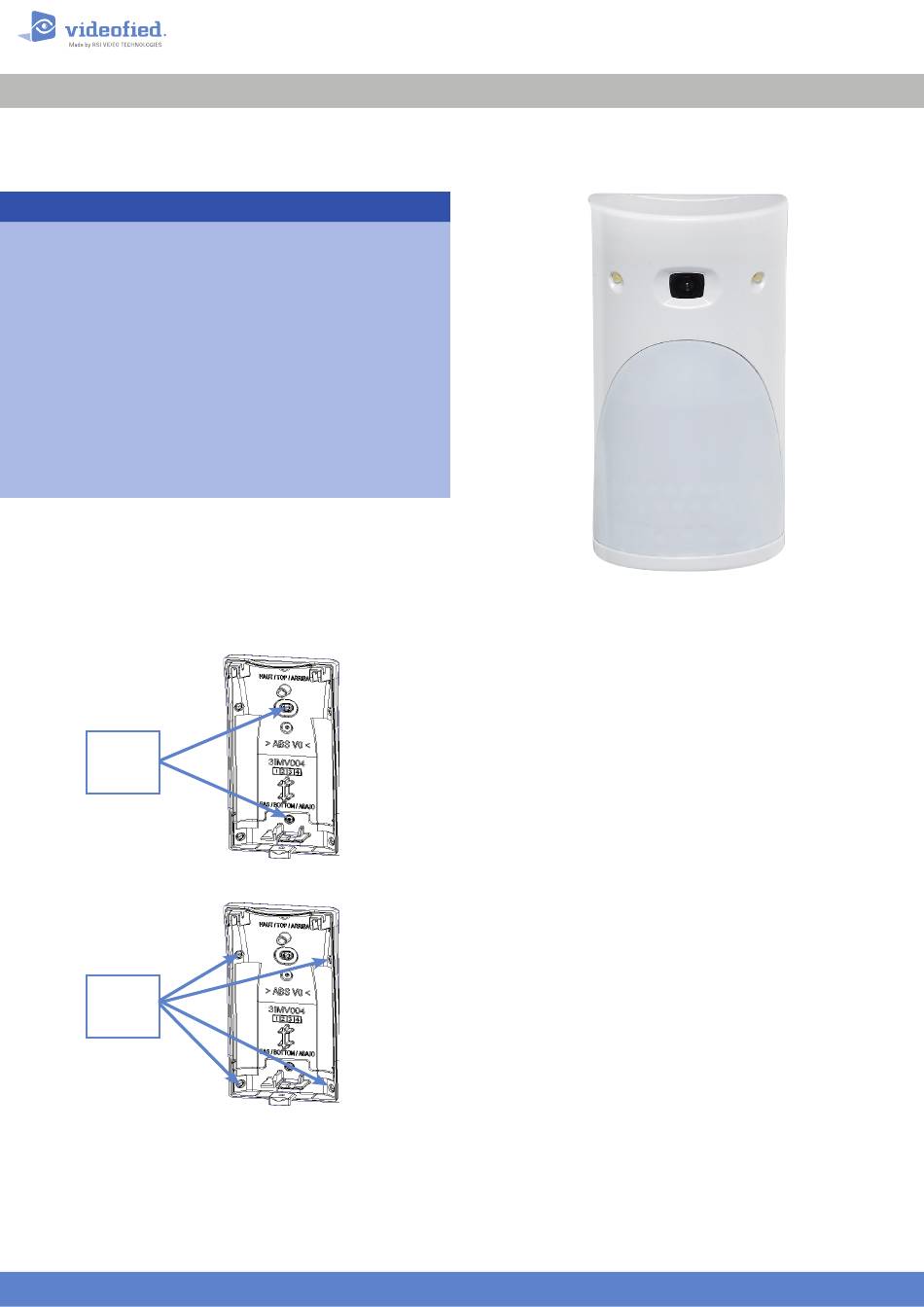

Flat Wall
Mounting
Holes
Corner
Mounting
Holes
Indoor MotionViewer IMV 200/601/701
I N S T A L L A T I O N
Installation Guidelines
For an easier installation, programming and RF testing should be
done to check for good communication between the control panel
and all system devices before mounting.
Install the detector and other system devices in the following order:
Programming / RF Testing: Program detector and all other devices
>
into the control panel and test RF communication at each intended
device location to the control panel.
Mounting: Mount detector at the tested location.
>
Mounting Rules
>
Use proper tools and hardware.
>
Mount indoors in a temperature controlled environment.
>
Mount camera 2.0 to 2.3 m (6.6 to 7.5 ft.) from the floor.
>
Respect Top and Bottom side of the Motion Viewer
>
When possible, mount in a wall corner in order to aim at a complete
room
>
Mount detector on an outside wall, aimed at area to protect.
>
Do not aim detector at windows, especially those that let in direct
sunlight, or at heat sources such as lamps, fireplaces, radiators,
and heating vents.
>
Do not aim detector at moving objects such as curtains, fans or
animals.
>
Do not cover the Fresnel lens
