Videofied IMV200 Product Installation Sheet

Product Summary

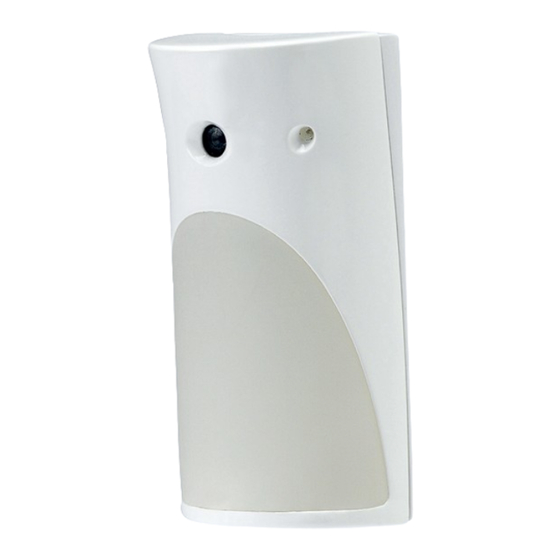

The MotionViewer IMV200 is a wireless, indoor motion activated camera
designed for use in a Videofied™ security system. The camera includes the fol-
lowing features:
>
Lithium batteries for long life
>
Color Day / B&W night
>
Wide angle lens
>
Infrared LEDs for night illumination
>
Standard motion coverage lens (30 ft./9 m distance)
>
Dual tamper function provides detection of both wall and cover tamper.
>
Transmits check-in/status signal every 8 minutes
Installation Guidelines
For an easier installation, programming and RF testing should be done to check for good
communication between the control panel and all system devices before mounting.
Install the detector and other system devices in the following order:
>
Programming / RF Testing: Program detector and all other devices into the
control panel and test RF communication at each intended device location to
the control panel.
>
Mounting: Mount detector at the tested location.
Mounting Rules
>
Use proper tools and hardware.
>
Mount indoors in a temperature controlled environment.
>
Mount camera 2.0 to 2.3 m (6.6 to 7.5 ft.) from the floor.
>
Respect Top and Bottom side of the Motion Viewer
>
When possible, mount in a wall corner in order to aim at a complete
room
>
Mount detector on an outside wall, aimed at area to protect.
>
Do not aim detector at windows, especially those that let in direct
sunlight, or at heat sources such as lamps, fireplaces, radiators, and
heating vents.
>
Do not aim detector at moving objects such as curtains, fans or
animals.
>
Do not cover the Fresnel lens
Indoor MotionViewer IMV200
P R O D U C T I N S T A L L A T I O N S H E E T
Made by RSI VIDEO TECHNOLOGIES
Flat Wall
Mounting
Holes
Corner
Mounting
Holes
2225-IMVIS January - 2013
Flat Wall Mounting
Corner Mounting
