INSTALLATION SHEET

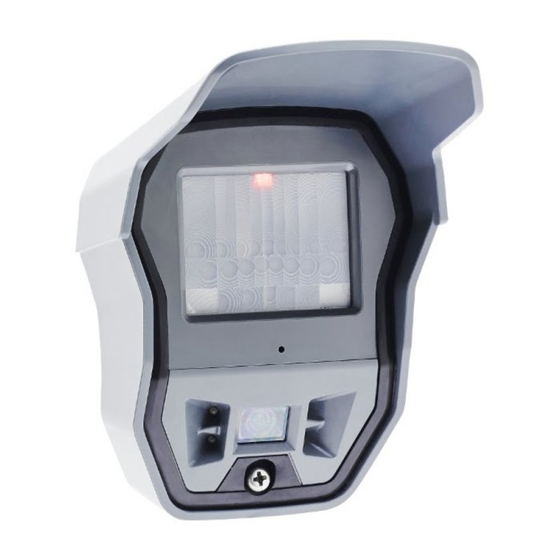

The OSMV 210/611/712 Outdoor Streaming Motion Viewer is a is a
wireless, battery operated, motion activated or electrically activated
outdoor camera designed for use in Videofied
• Powered by 4 Lithium batteries for extended battery life.
• 90° multi-purpose lens (by default).
• Provided optional lenses: curtain, pet-immune or long range beam.
• 4 infrared LEDs for 12m night vision.
• Standard detection distance (up to 14 meters).
• Fully weatherproof (IP54) and temperature resistant (-25°C/+70°C).
• Wall, cover and movement tamper triggered by tilt sensor.
• Transmits check-in/status signal every 8 minutes.
• 3 wired programmable inputs.
• 1 wired programmable output triggered on detection.
• Video capture and transmission in «streaming mode» on user
request.

Installation Guidelines

For easier installation, programming and RF testing should be done to check
for good communication between the control panel and all system devices
before mounting system devices.
Install the detector and other system devices in the order of the following
steps:
>
Programming/RF Testing - program detector and all other devices into the
control panel and test RF communication from each intended device location
to the control panel.
>
Mounting - mount detector at the tested location.
Mounting
> Use proper tools and hardware.
>
Mount camera between 2.5 m to 3,5 m height.
>
The OSMV MotionViewer detection distance may vary depending on
mounting (height, tilt). The OSMV is not suitable to protect an area, it needs to
be used to protect an access point or any property.
>
Mount detector aimed toward the spot to protect.
> In order to reduce false alarms, do not aim the detector toward vegetation,
a road, or unlimited space.
> Do not cover the Fresnel lens. Use only the provided masking kit to block
detection towards specific spots (trees, bushes, etc.).
OSMV OUTDOOR STREAMING MOTION VIEWER
Product Summary
®
security systems.
DOC. - REF. 213-OSMV
VERSION : AUGUST 2016
MB110 Mounting kit for
Outdoor MotionViewer
1
